12. Reinstall center divider (see letter "A" in the following figure) and secure to chassis
with one screw (see letter "B").
13. Insert hot swap power supply(ies) into chassis. Replace shipping screw(s) (see
letter "A" in the following figure) if shipping chassis to another location.
58
B
A

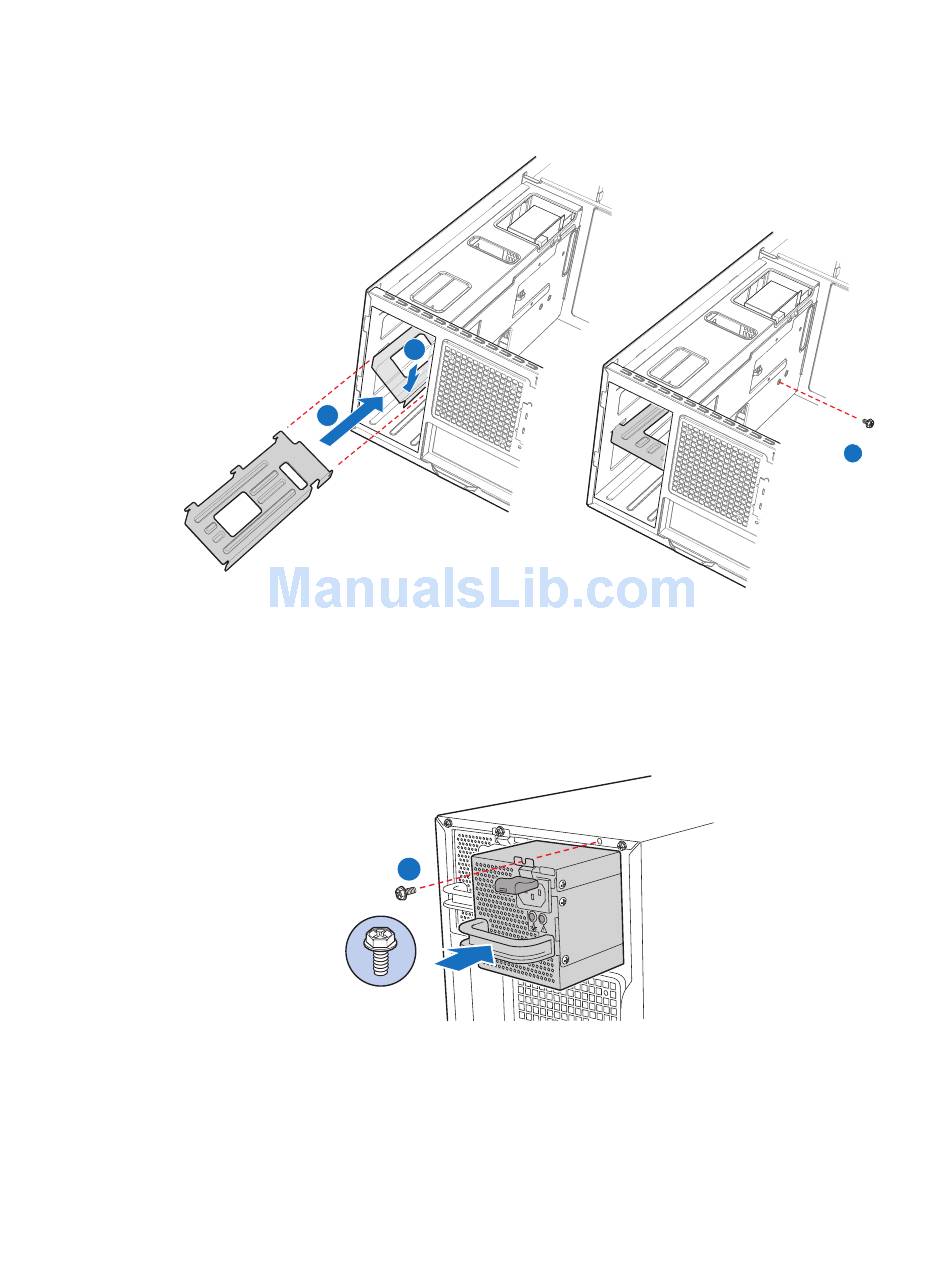

Figure 62. Re-installing Center Divider

A

Figure 63. Installing Hot Swap Power Supply into Chassis

AF000603
Intel® Server Chassis SC5400 User's Guide
C
TP00843
