Installing Fixed Hard Drive(s)

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see
page
4. Remove the front bezel if it is installed. For instructions, see
Installing the Front Bezel" on page
5. Push the blue plastic release mechanism upward to release the fixed drive cage (see
letter "A" in the following figure). Pull the drive cage out about two inches (see
letter "B") so that it is partially exposed from the drive bay slot in the chassis.
Partially exposing the drive cage will make it easier to open the upper door of the
drive cage.
Note: As an alternative, you may also fully remove the drive cage from its drive bay
Intel® Server Chassis SC5400 User's Guide
16.
slot in the chassis. Take care, however, to position the drive cage horizontally
before opening the drive cage doors or the drive rails will spill out.

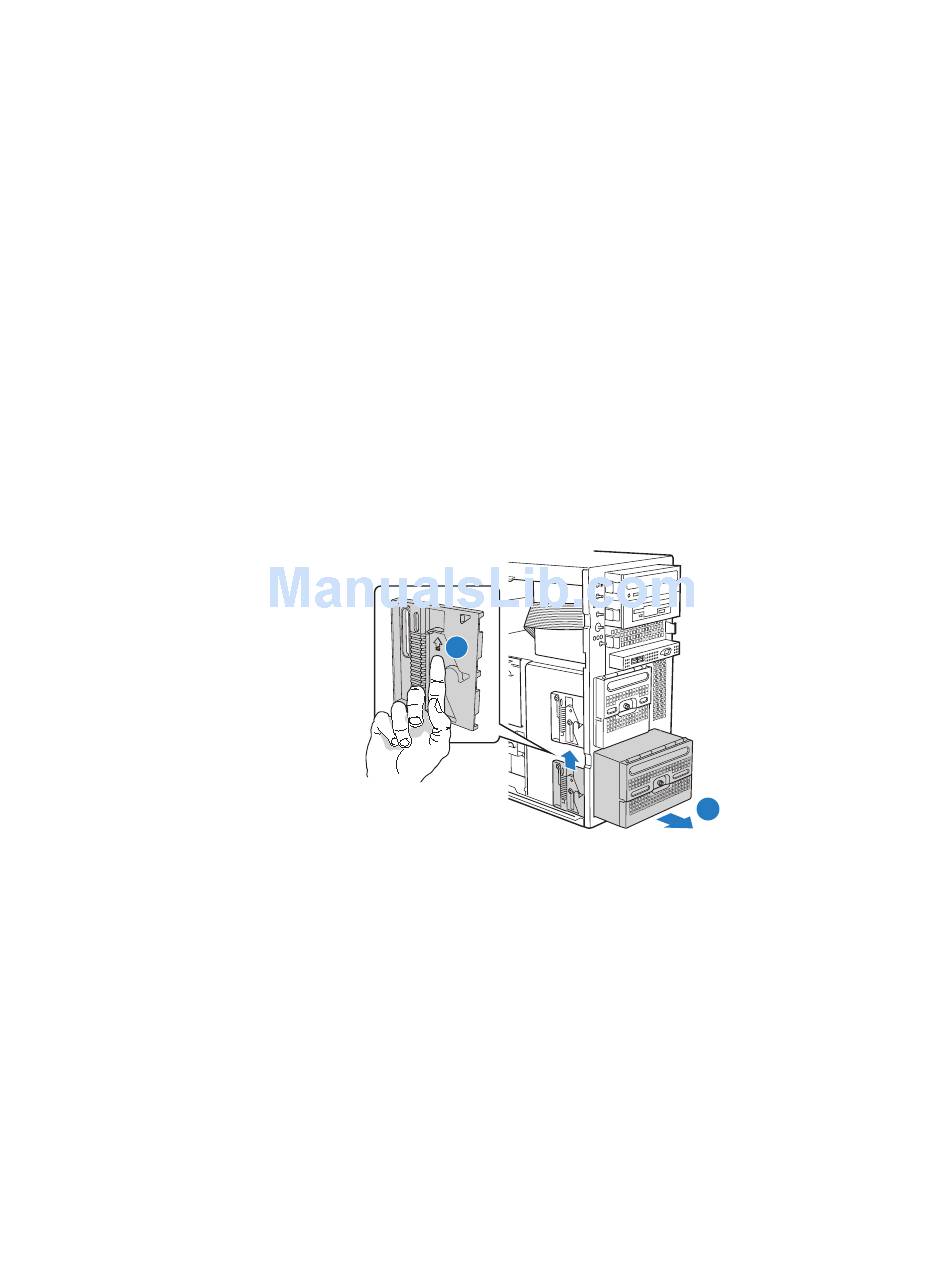

Figure 30. Removing Six-drive Fixed Drive Cage from Chassis

"Removing the Chassis Cover" on
18.
A
"Removing and
B
TP00906
35
