5. Press in on the two plastic tabs (see letter "A" in the following figure) and remove
the PCI add-in card retainer. Open the back panel PCI add-in card retention device
(see letter "B") by pressing open from the inside of the chassis. Remove the PCI
slot shield (see letter "C"), if it has not already been removed, by pushing the shield
out from the inside of the chassis
6. Remove the PCI add-in board from its protective wrapper. Be careful not to touch
the components or gold edge connectors. Place the add-in board on an anti-static
surface. Record the type and serial number of the add-in board in your equipment
log. Set the jumpers or switches on the board according to the manufacturer's
instructions.
48
A
AF000954

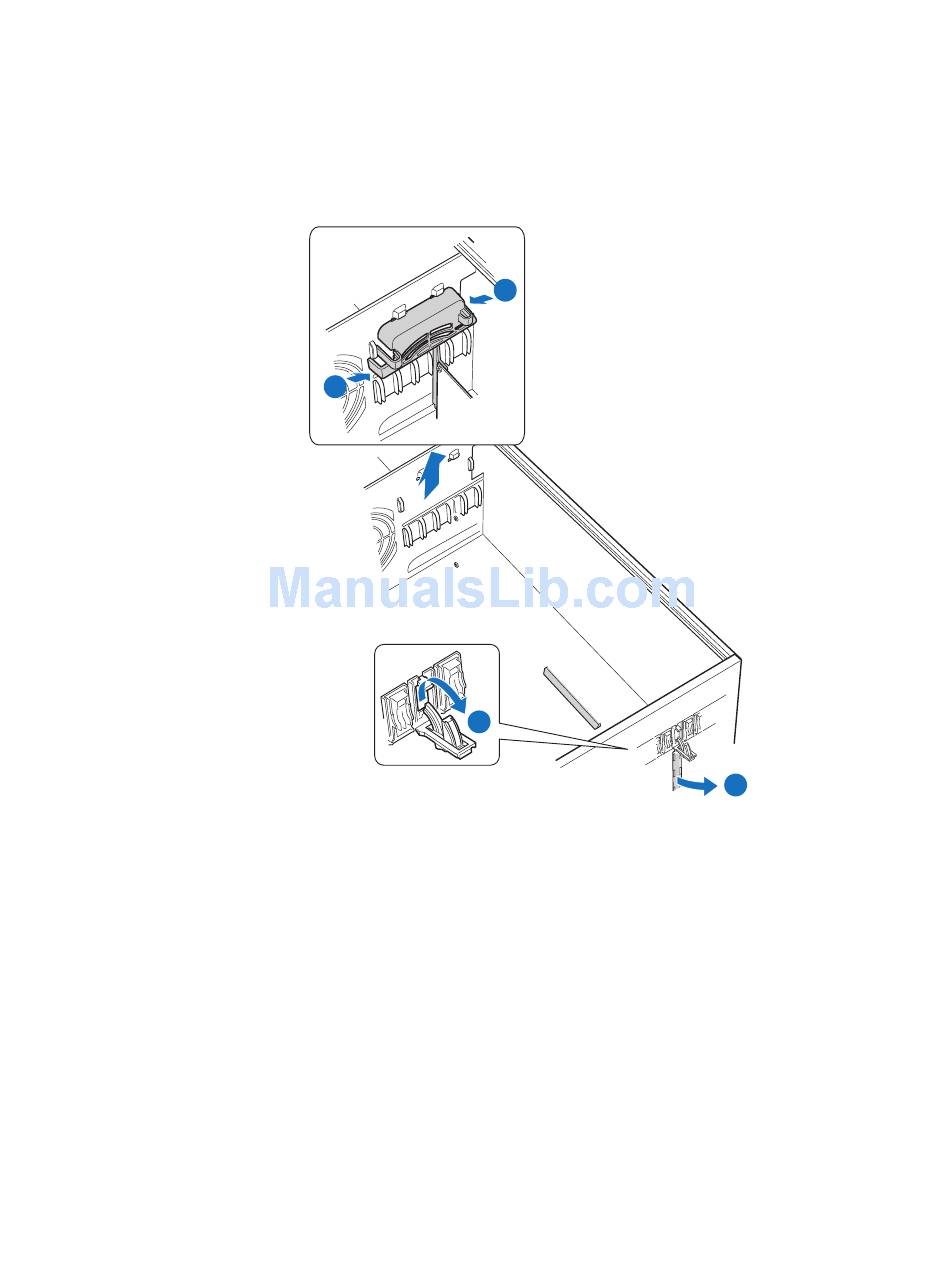

Figure 50. Preparing Chassis for Addition of PCI Add-in Board

A
B
Intel® Server Chassis SC5400 User's Guide
C
