7. If not replacing with another drive, re-attach pair of slides to an EMI shield and re-
insert EMI shield/slide assembly into chassis for proper airflow.

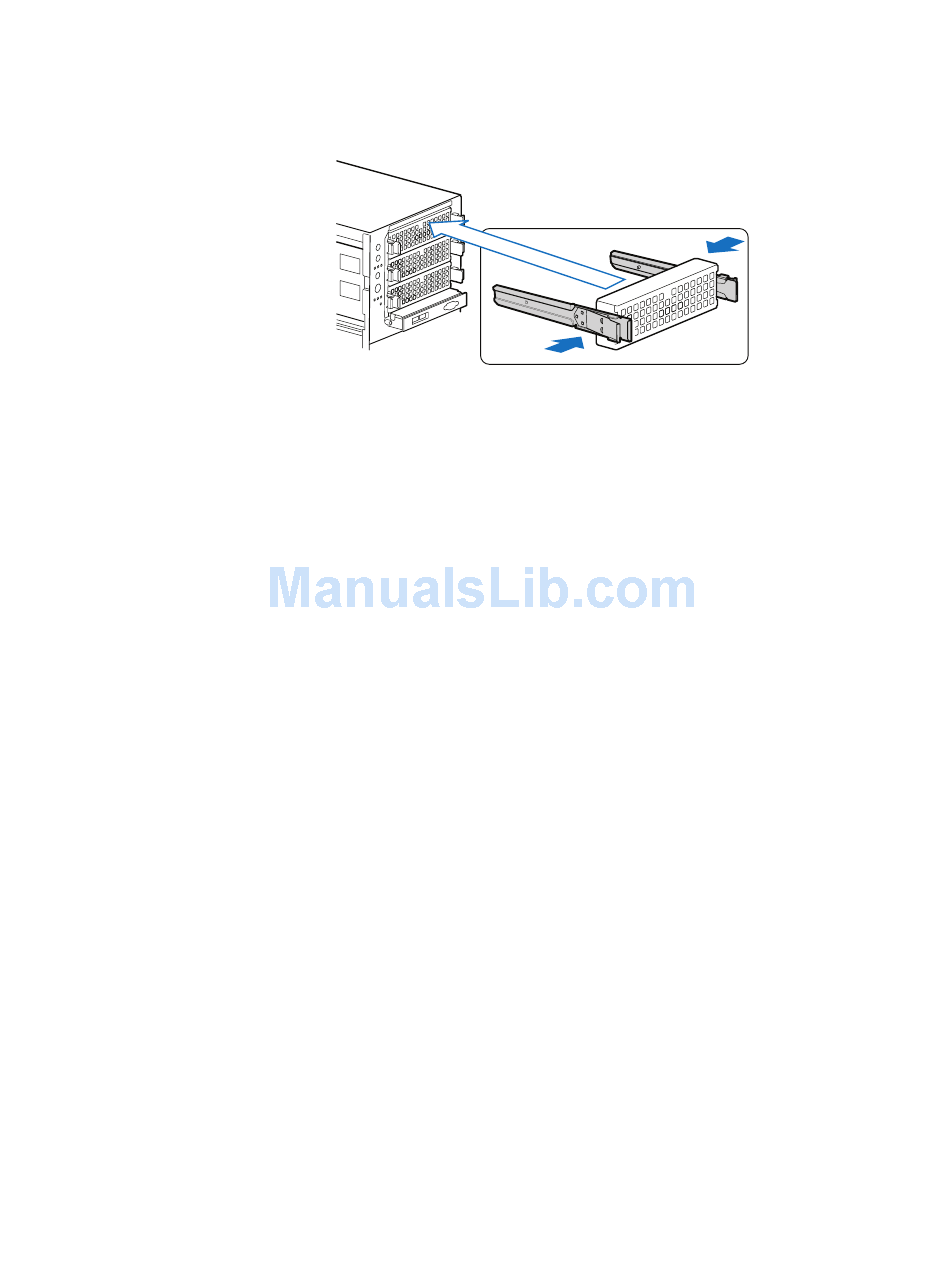

Figure 18. Re-inserting Empty EMI Shield/Slide Assembly into Chassis

8. Install the front bezel. For instructions, see
Bezel" on page
9. Install the chassis cover. For instructions, see
page
10. Plug all peripheral devices and the AC power cable into the server.
11. Power up the server.
Removing and Installing a DVD or CD-ROM
Drive

Removing a DVD or CD-ROM Drive

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see
page
4. Remove the front bezel if it is installed. For instructions, see
Installing the Front Bezel" on page
5. Disconnect the power and data cables to the DVD/CD-ROM drive.
Intel® Server Chassis SC5400 User's Guide
18.
17.
16.
AF000605
"Removing and Installing the Front
"Installing the Chassis Cover" on
"Removing the Chassis Cover" on
18.
"Removing and
27
