3. If not replacing with another hard drive, re-install the plastic air baffle into the
empty drive carrier. Secure the plastic air baffle to the drive carrier using the four
screws that were formerly attached to the hard drive.
Note: Plastic air baffles are necessary in all empty drive carriers to ensure proper
4. With the black lever open, insert the drive carrier into the drive cage. Once inserted,
rotate the black lever upwards to latch the drive carrier into position.
Intel® Server Chassis SC5400 User's Guide
airflow within the chassis.

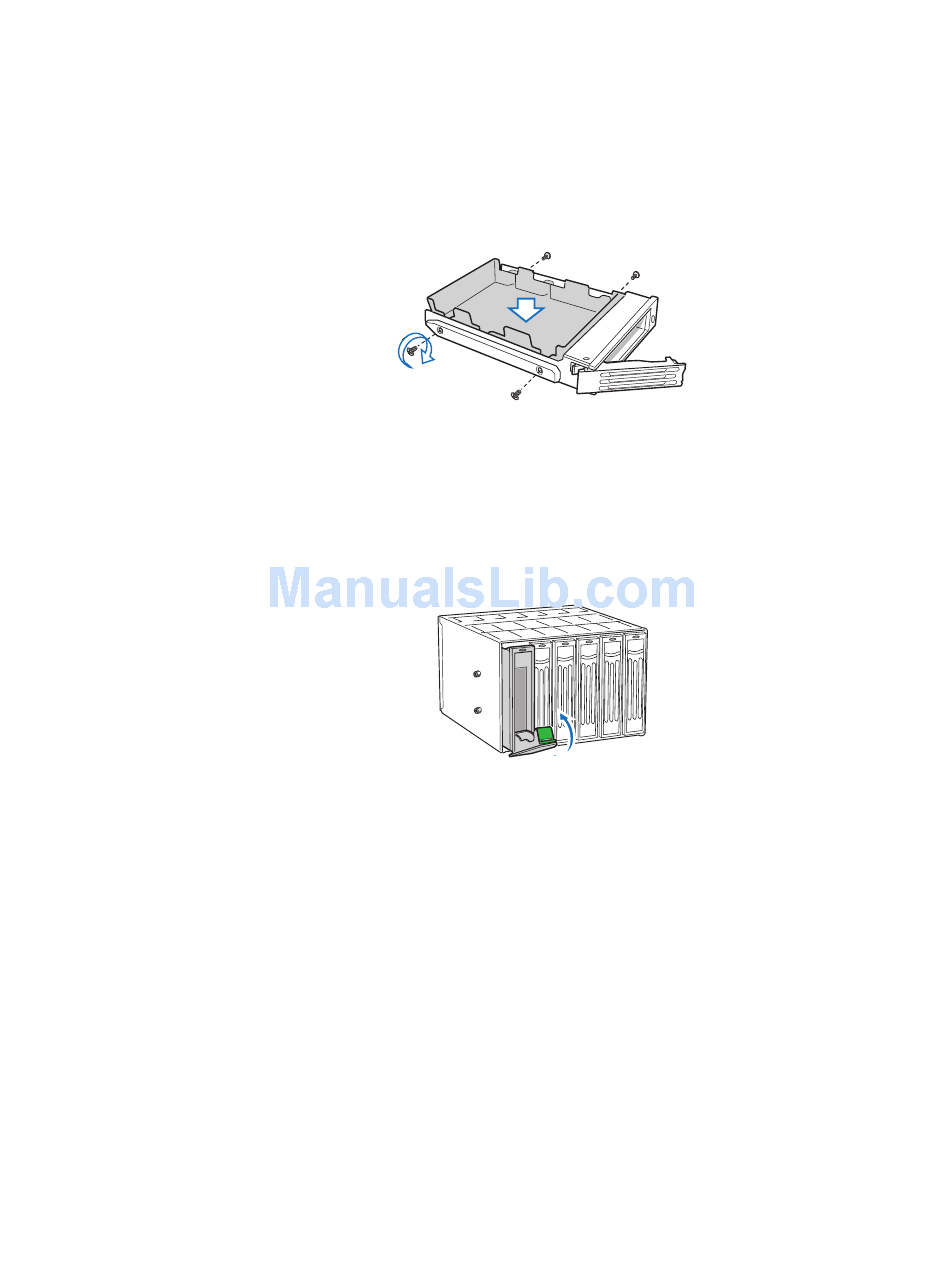

Figure 43. Installing Plastic Air Baffle in Drive Carrier

Figure 44. Inserting Drive Carrier into Hot Swap Cage

AF000950
AF000592
43
