3. For an Intel® Server Board SE7520BD2, use header J2K8 on the server board.

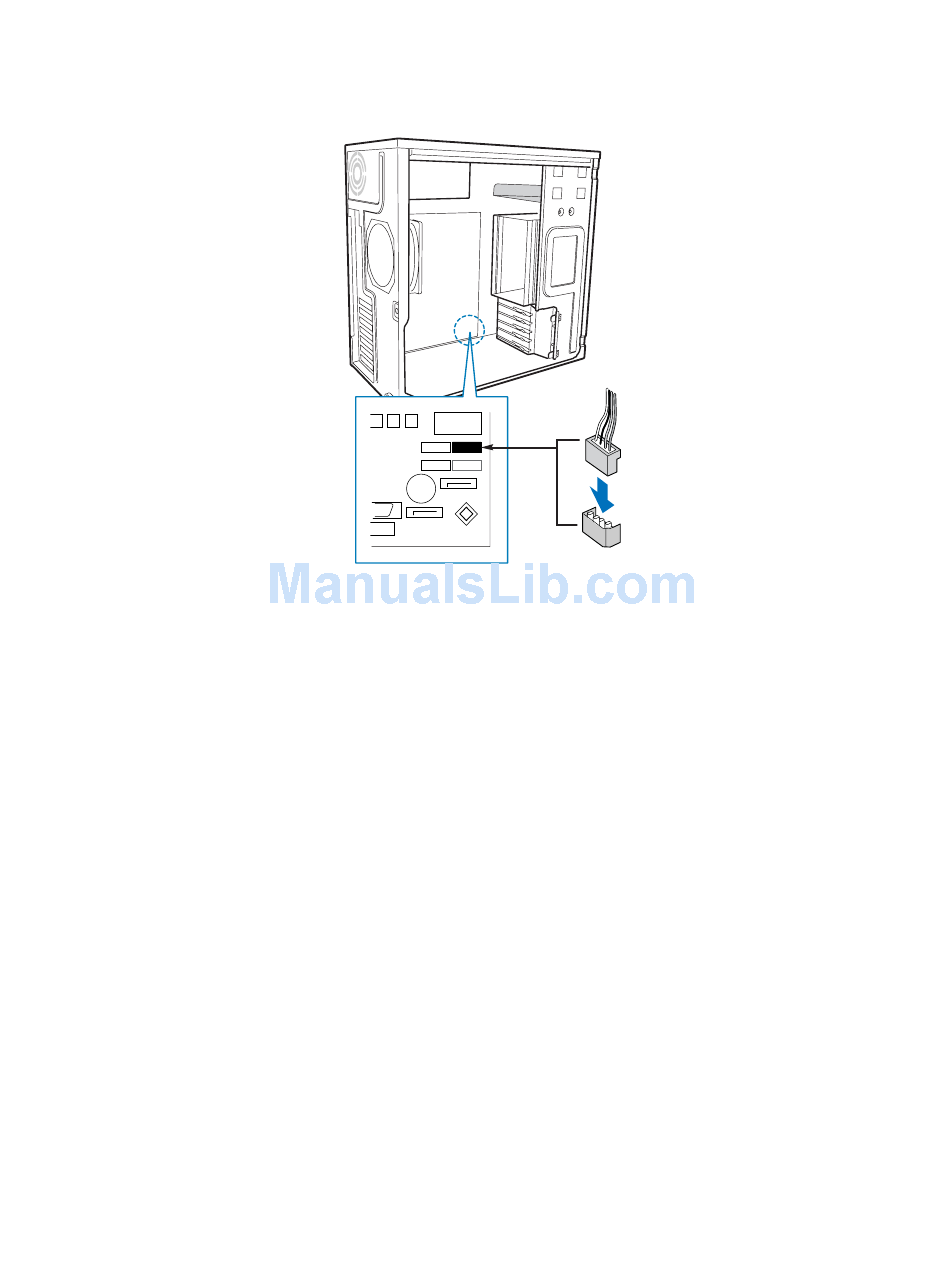

Figure 23. Attaching LCP Cable to Header on Intel® Server Board SE7520BD2

Replace Bezel

1. If necessary, remove filler panel from bezel that corresponds to the position of the
LCP carrier.
2. Engage the three clips (see letter "A" in the following figure) at the right edge of the
bezel with the corresponding latches on the right side of the chassis.
3. Rotate the left side of bezel towards the chassis (see letter "B").
Local Control Panel Kit Install Guide
Local Control Panel Kit Installation Instructions
TP00647
17
