Local Control Panel Kit Installation Instructions

Connect LCP Cable to LCP Header on Server Board

1. Connect the LCP cable to the LCP header on the server board.

2. For an Intel® Server Board SE7520AF2, use header J1J1 on the server board.

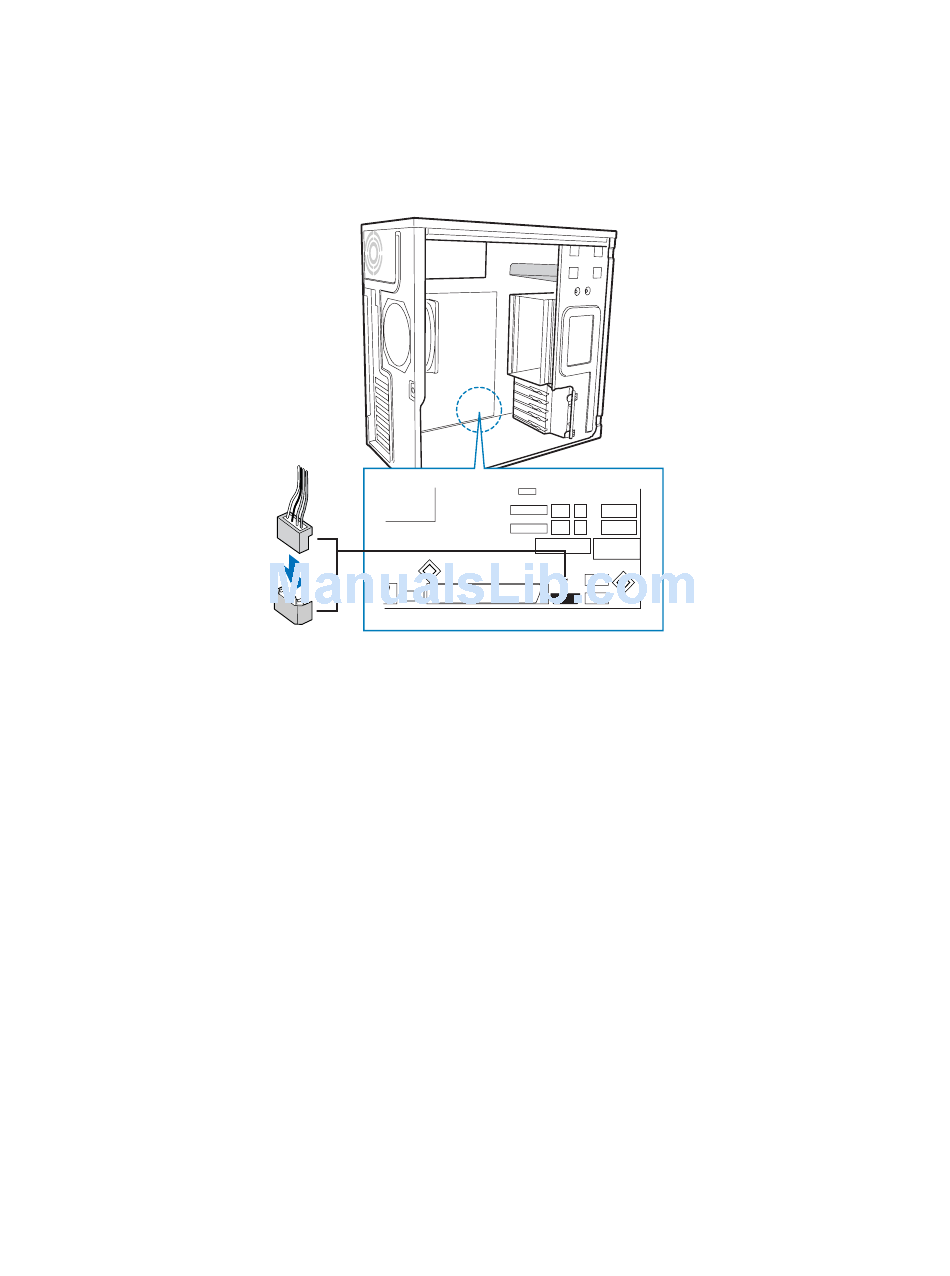

Figure 22. Attaching LCP Cable to Header on Intel® Server Board SE7520AF2

TP00648

Local Control Panel Kit Install Guide
