Remove Upper Third of Bezel Grill

Remove the upper one-third of the bezel grill by pushing grill forward.

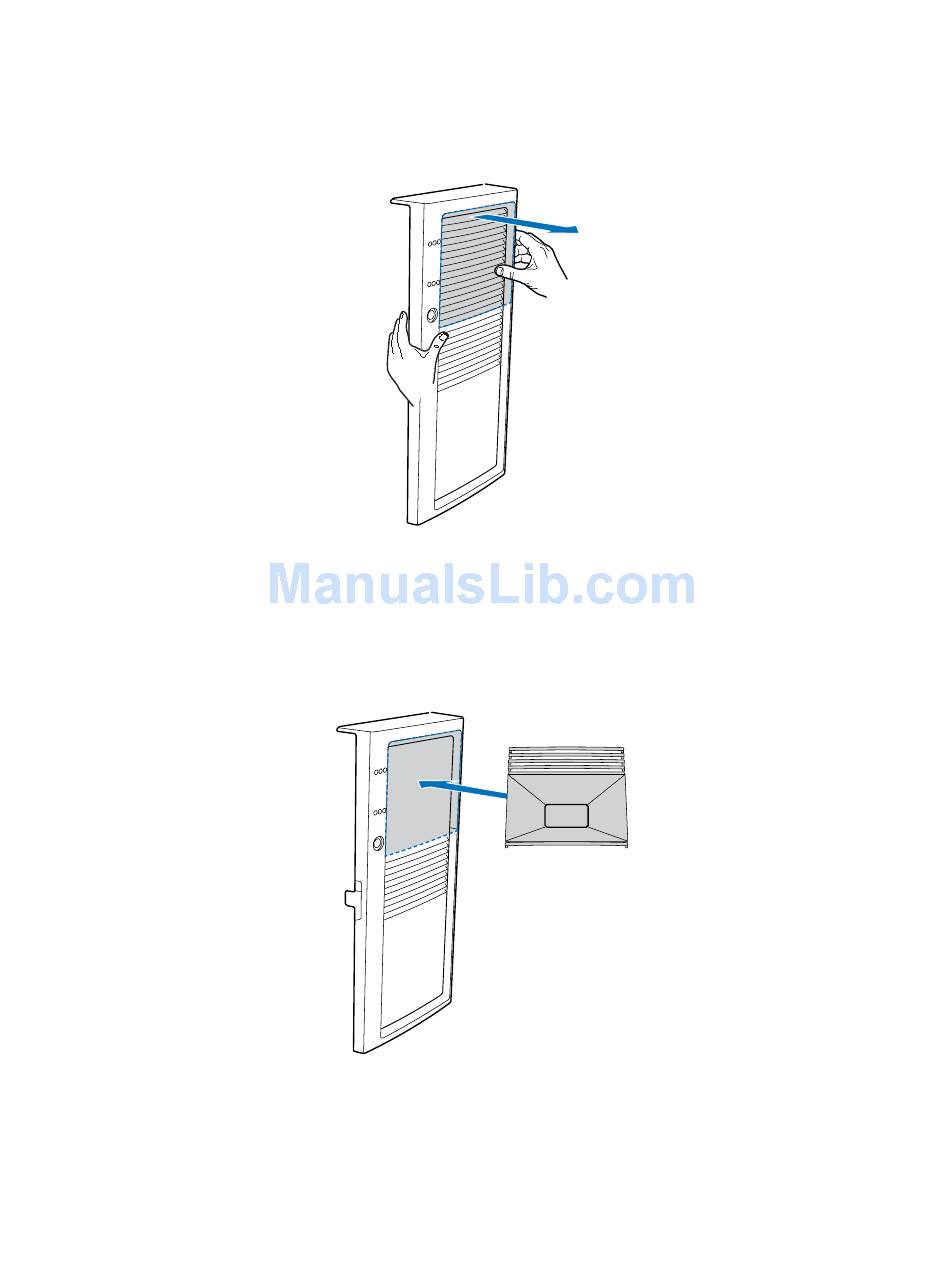

Figure 4. Removing Upper One-third of Bezel Grill

Install LCP Grill

Install new LCP grill into outer bezel door by pressing grill in from the front.
Local Control Panel Kit Install Guide
Local Control Panel Kit Installation Instructions

Figure 5. Installing LCP Grill

TP00636
TP00637
5
