Remove Outer Bezel Door From Bezel Assembly; Figure 3. Removing Outer Bezel Door From Bezel Assembly - Intel SC5300BASE Install Manual

Local Control Panel Kit Installation Instructions

Remove Outer Bezel Door from Bezel Assembly

Note: The bezel assembly consists of two parts, an inner bezel door and an outer bezel door.
With one hand supporting the inner bezel door, use your other hand to push the outer bezel
door away from the inner bezel door. The outer bezel door will disengage from the inner
bezel door at the four hinges (see letter "A" in the following figure).
Caution: Only open the outer bezel door slightly (about 20 degrees) before removing it. Opening
the outer bezel door all the way before removing may break the hinges.

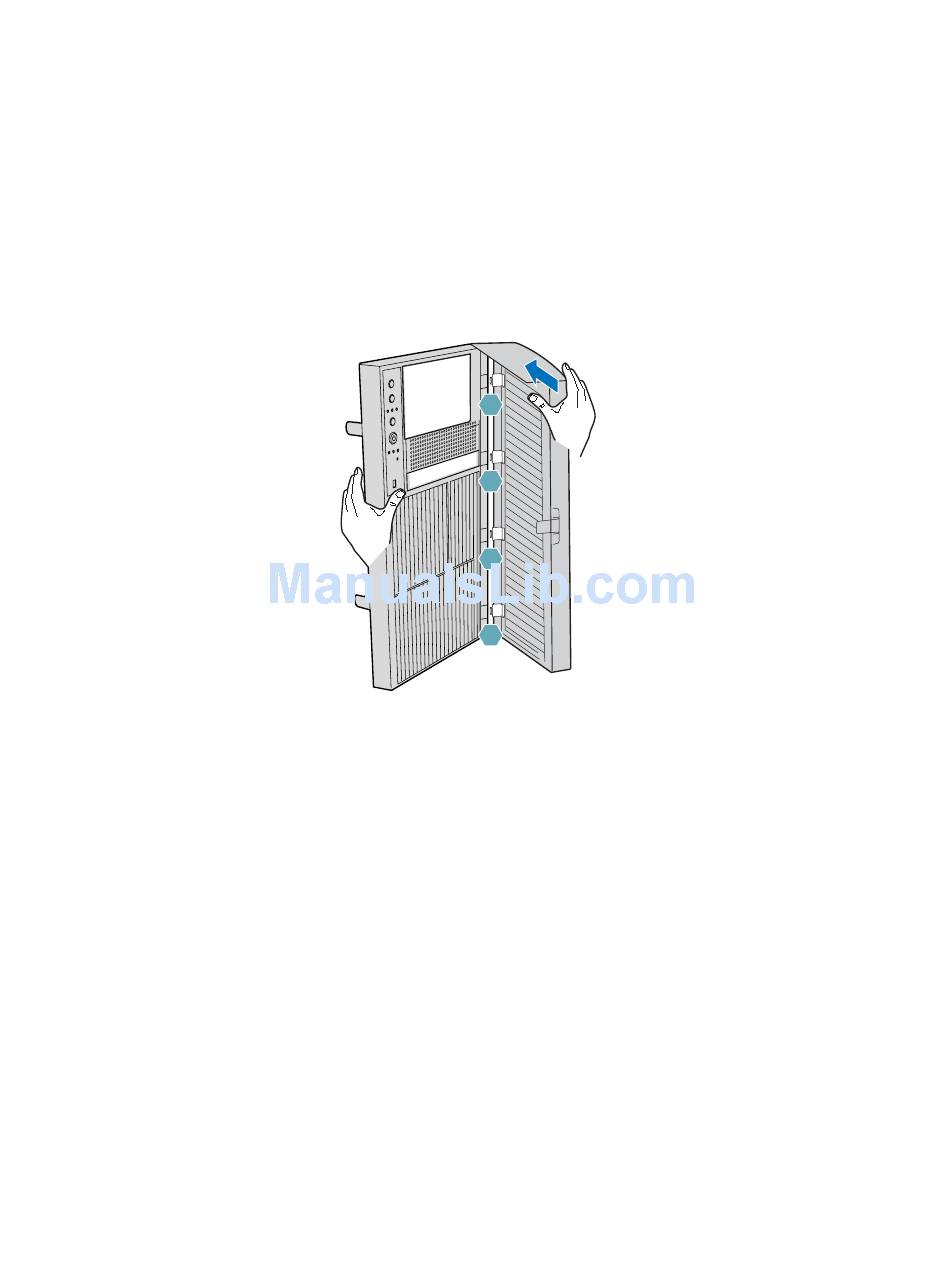

Figure 3. Removing Outer Bezel Door from Bezel Assembly

4
A
A
A
A
TP01055
Local Control Panel Kit Install Guide
