Local Control Panel Kit Installation Instructions
3. For an Intel Server Board SE7520BD2, use header J2K8 on the server board.

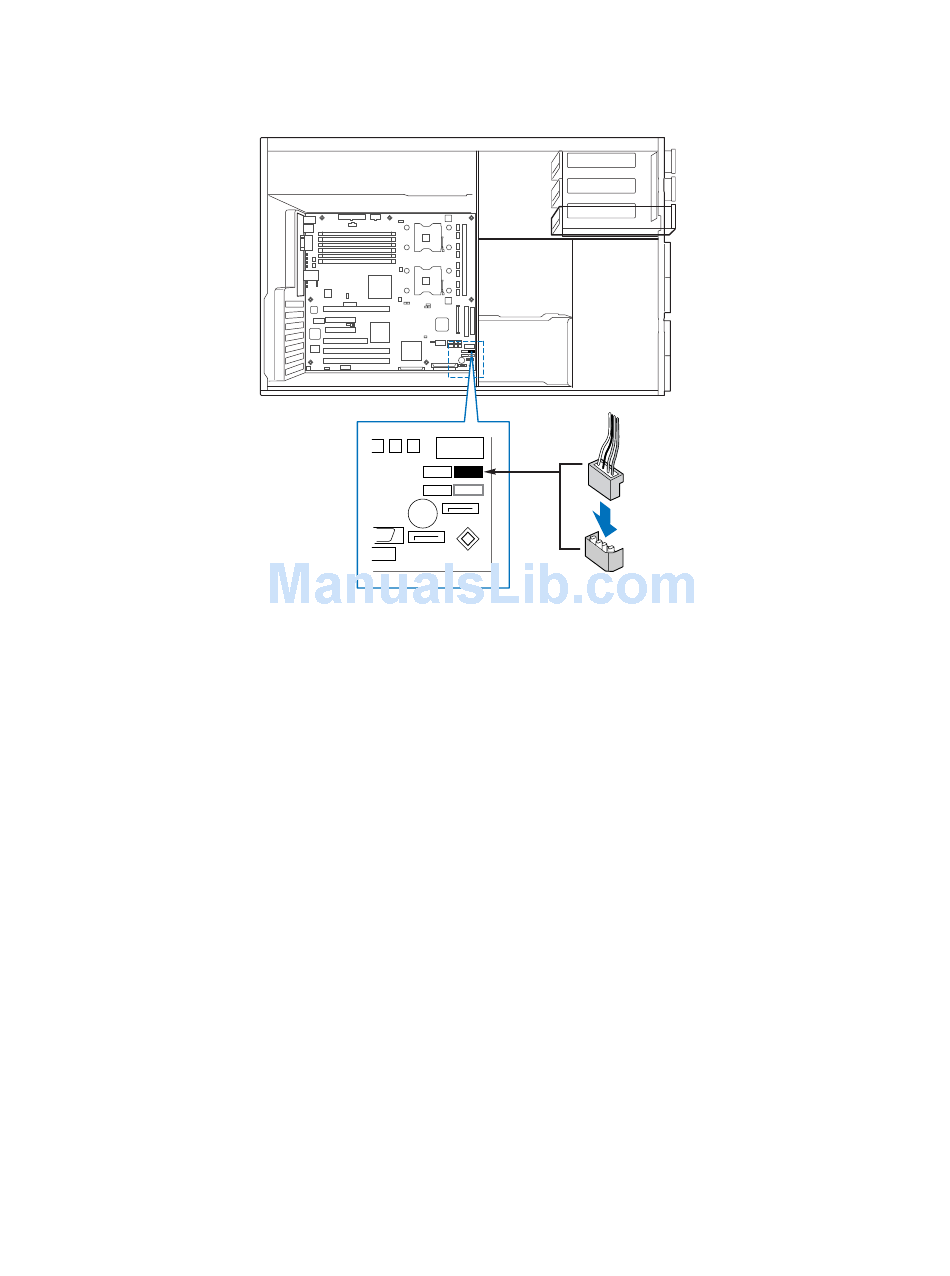

Figure 12. Attaching LCP Cable to Header on Intel® Server Board SE7520BD2

Replace Bezel Assembly

Fit the right-hand side of the inner bezel door against the right-hand side of chassis and
engage plastic bezel hooks (see letter "A" in the following figure) into raised metal slots at
chassis edge. Rotate inner bezel door inward (see letter "B") and latch the two plastic tabs
(see letter "C") to left-hand side of chassis. Attach outer bezel door by aligning hinges
with the right-hand side of inner bezel door and snapping into place.
10
TP00641
Local Control Panel Kit Install Guide
