Caution: Do not attach inner bezel door to chassis at more than a 40-degree angle or you may
damage the bezel hooks at the right-hand side of the door.

Replace Access Cover

Replace access cover and slide forward to secure cover to chassis. Replace shipping screw
(see letter "A" in the following figure) if desired.
Local Control Panel Kit Install Guide
C
C

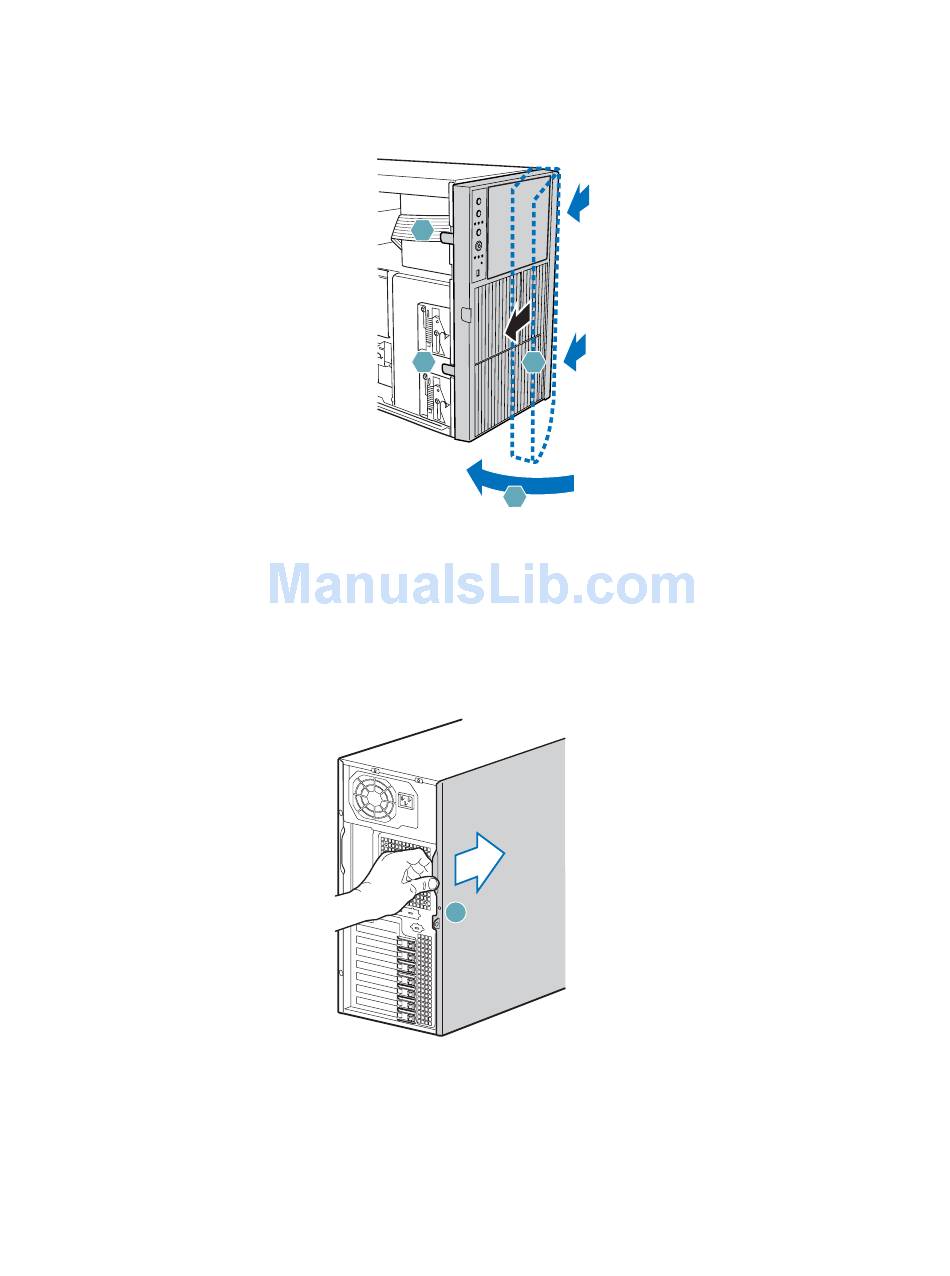

Figure 13. Installing Inner Bezel Door

A

Figure 14. Replacing Access Cover

Local Control Panel Kit Installation Instructions
A
B
TP01130
TP01000
11
