2. Feed the cable in first. Slide the LCP carrier into desired 5.25-in drive bay and secure
with two screws to the front of chassis.
Route LCP Cable
Route the LCP cable to the corner of the server board where the LCP header is located on
your Intel® Server Board SE7520AF2 or Intel® Server Board SE7520BD2.
Figure 21. Routing LCP Cable in Intel® Entry Server Chassis SC5275-E
Local Control Panel Kit Install Guide

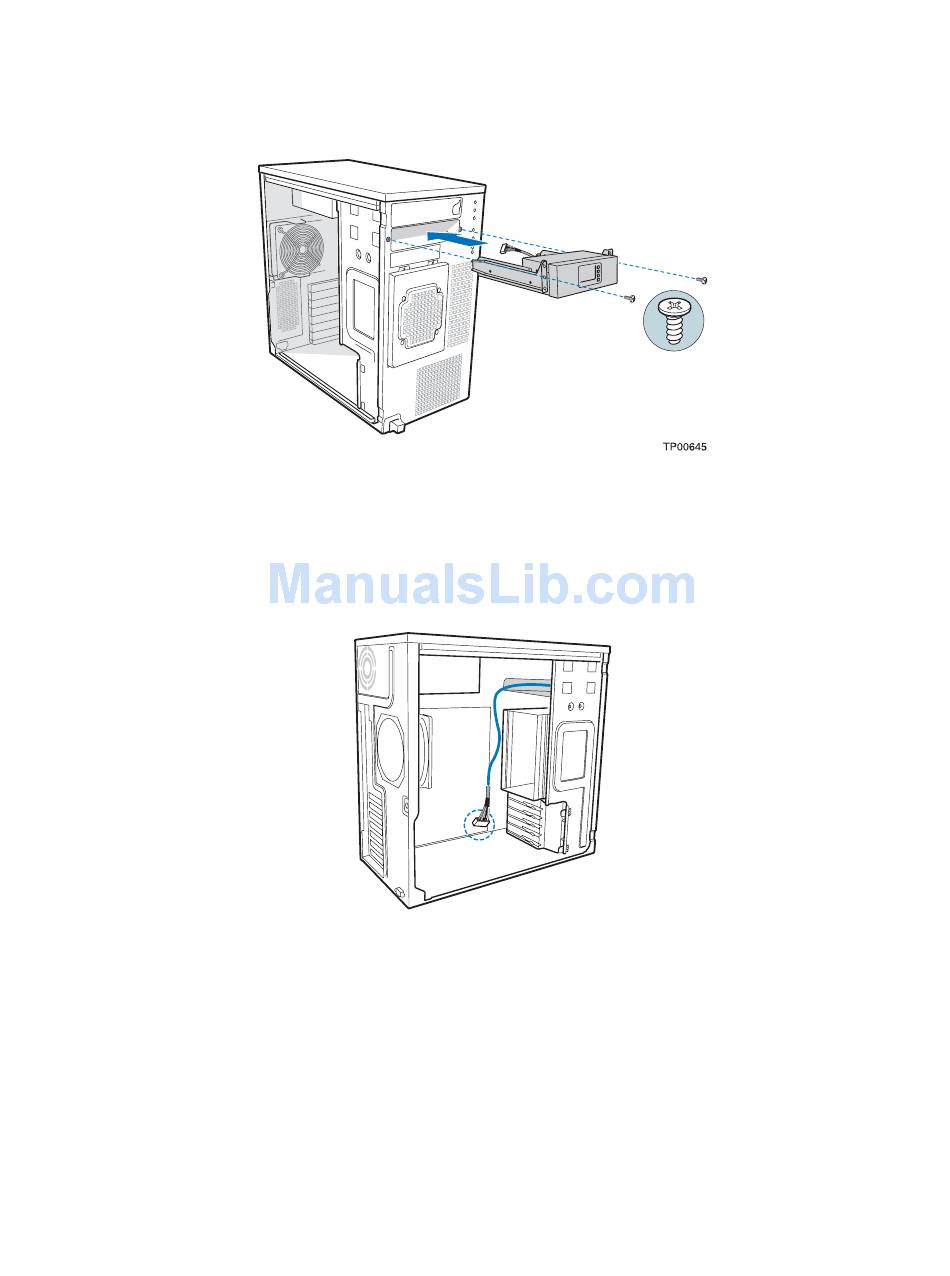

Figure 20. Inserting LCP Carrier into Drive Bay

Local Control Panel Kit Installation Instructions
TP00646
15
