Local Control Panel Kit Installation Instructions
2. Feed the LCP cable through the drive bay opening. Slide LCP carrier into server
chassis. Make sure that the drive rails are using the correct slots in the chassis.

Route LCP Cable

Route the LCP cable under the chassis fan area (along side the floppy and IDE cables) to
the corner of the server board where the LCP header is located on your Intel® server
board.
8

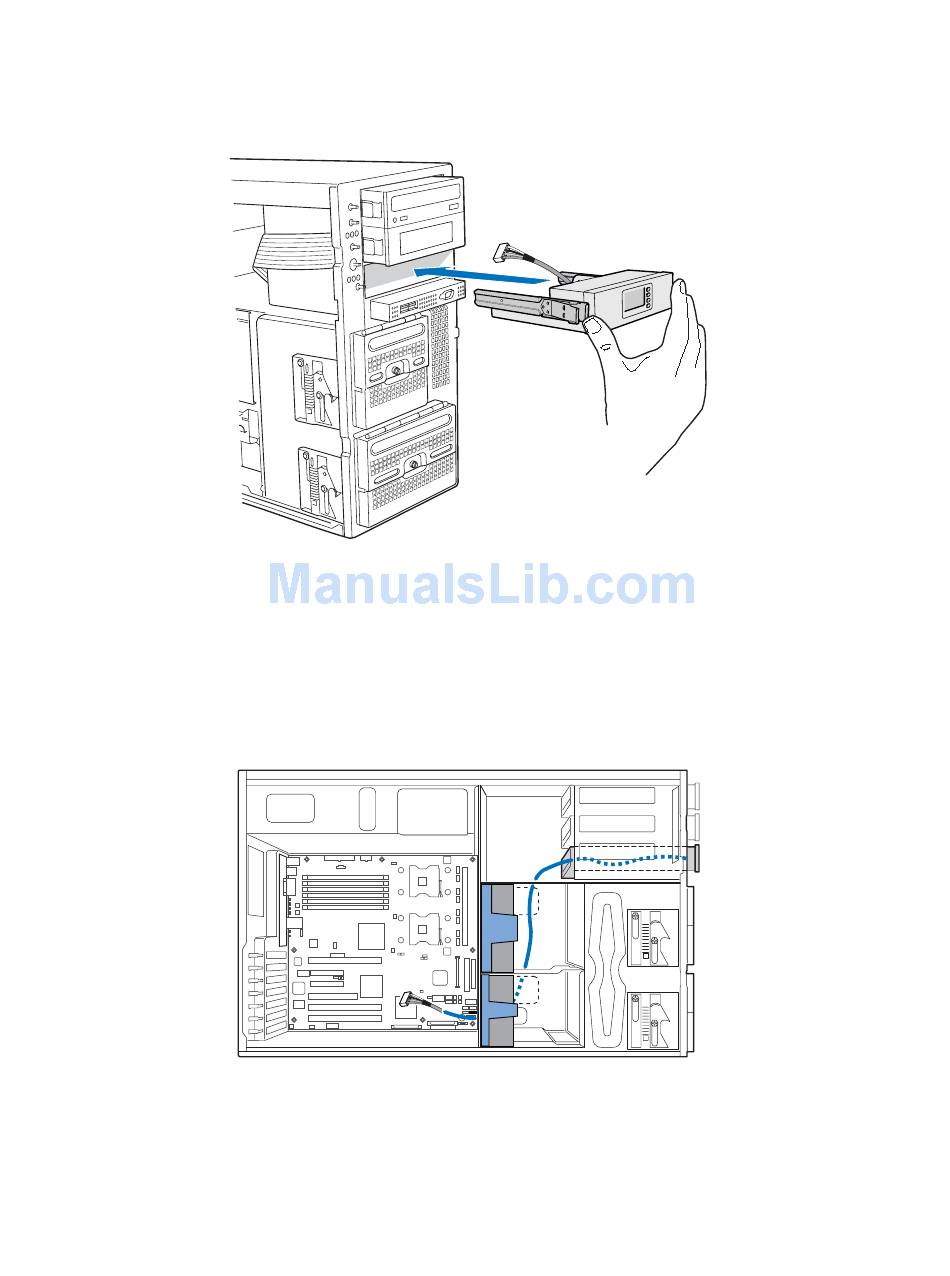

Figure 9. Installing LCP Carrier

Note:Intel® Server Board SE7520BD2 is shown.

Figure 10. Routing the LCP Cable

TP00639
TP00640
Local Control Panel Kit Install Guide
