Install EMI Shield onto LCP Carrier

Your backplane board shipped with an EMI shield that has to be installed. Install the EMI
shield by aligning the middle tooth (see letter "A" in the following figure) with the
indentation in the side of the LCP carrier.

Inserting LCP Carrier into Drive Bay of Server Chassis

1. Attach drive rails to LCP carrier using the top set of holes.
Local Control Panel Kit Install Guide

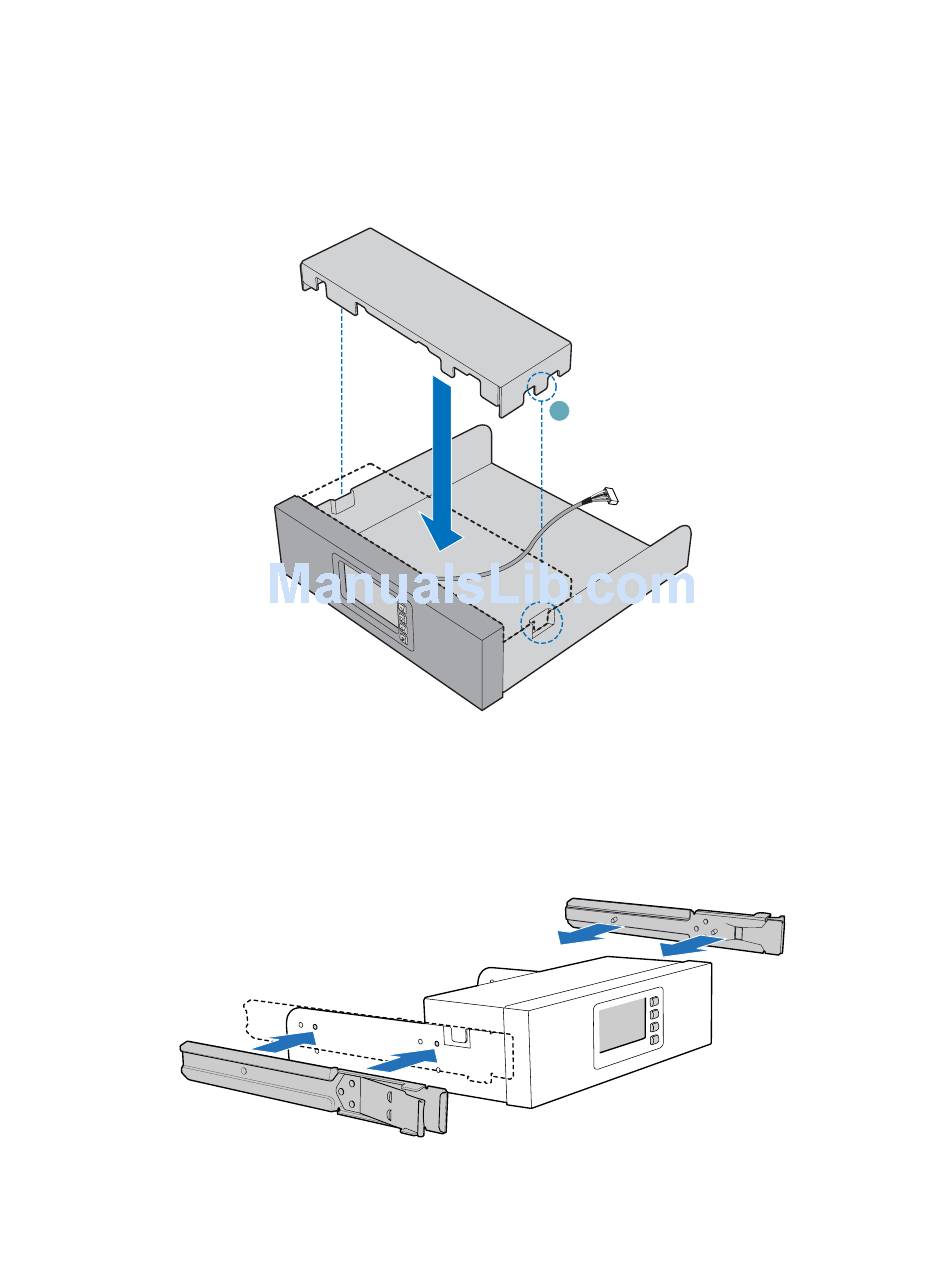

Figure 7. Installing EMI Shield on LCP Carrier

Figure 8. Attaching Drive Rails to LCP Carrier

Local Control Panel Kit Installation Instructions
A
TP00635
TP00634
7
