QWIK-PURE CS
®
Figure
NOTICE
34 | 68
Installation work
Damage due to incorrect hose routing
Incorrect hose routing can result in material and environmental damage, as well as
impaired operation.
• Route all hoses in the shortest possible way.
• Install all hoses in such a way that they are free of mechanical stress and
without any kinks.
• Route all hoses in such a way that no mechanical stress will be transmitted to
the condensate inlet and that the minimum bending radii of the respective
hose are adhered to.
• Do not lay the hoses in a slack manner (sagging).
Installation and operating manual
Description / explanation

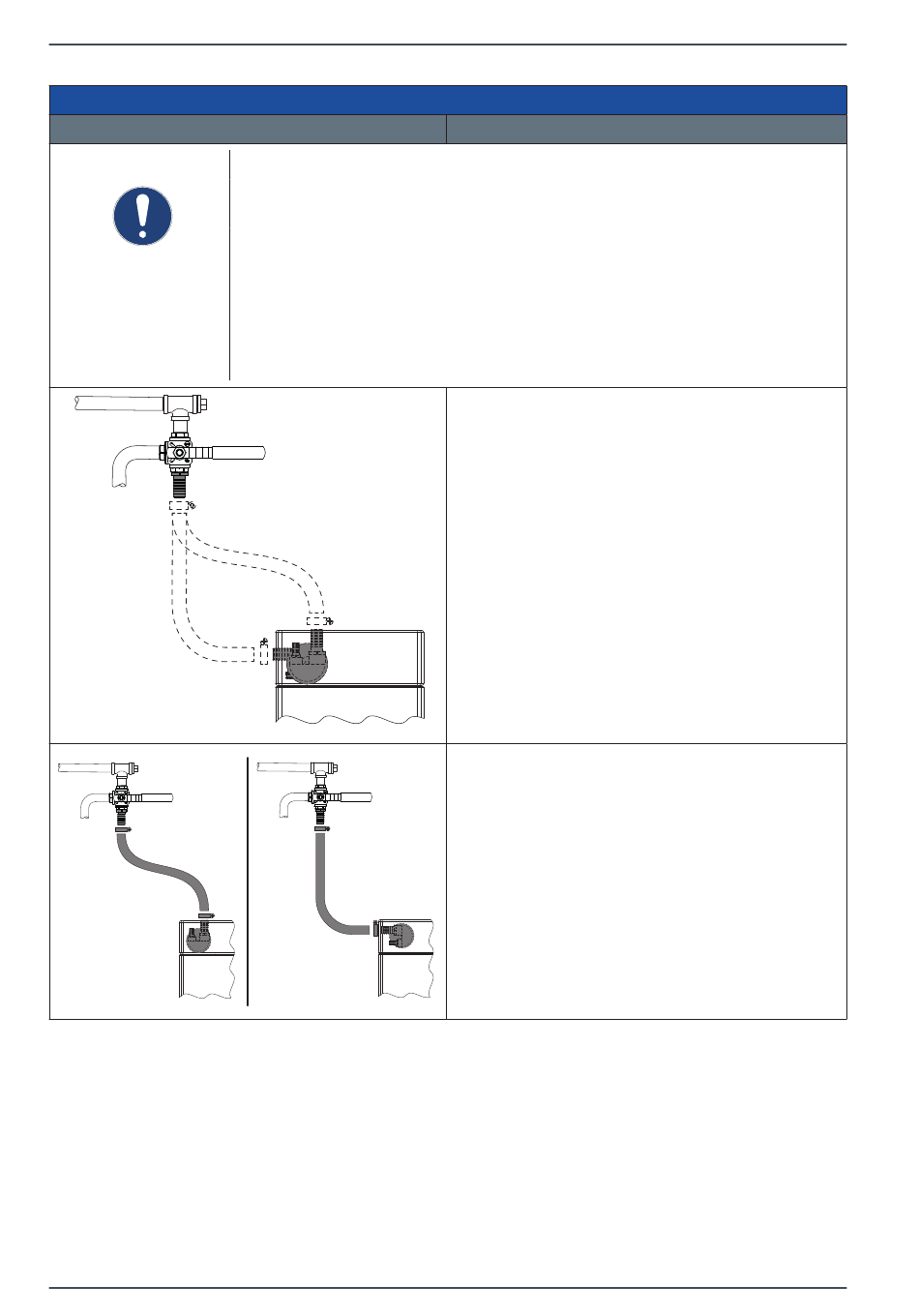

19. Set up the assembled QWIK-PURE
from the tapping point.
0 In order to be able to route the hose
optimally, you can loosen the knurled head
screw in order to turn the condensate inlet
up to 90 degrees by hand. After turning it,
tighten the knurled head screw hand-tight.
20. Connect the tapping point with the condensate
inlet of the pressure relief chamber with a hose
and secure it against slipping with a hose clamp.
0 Do not lay the hose in a slack manner
(sagging).
21. Tighten the hose clamps hand-tight.
at an offset
®
