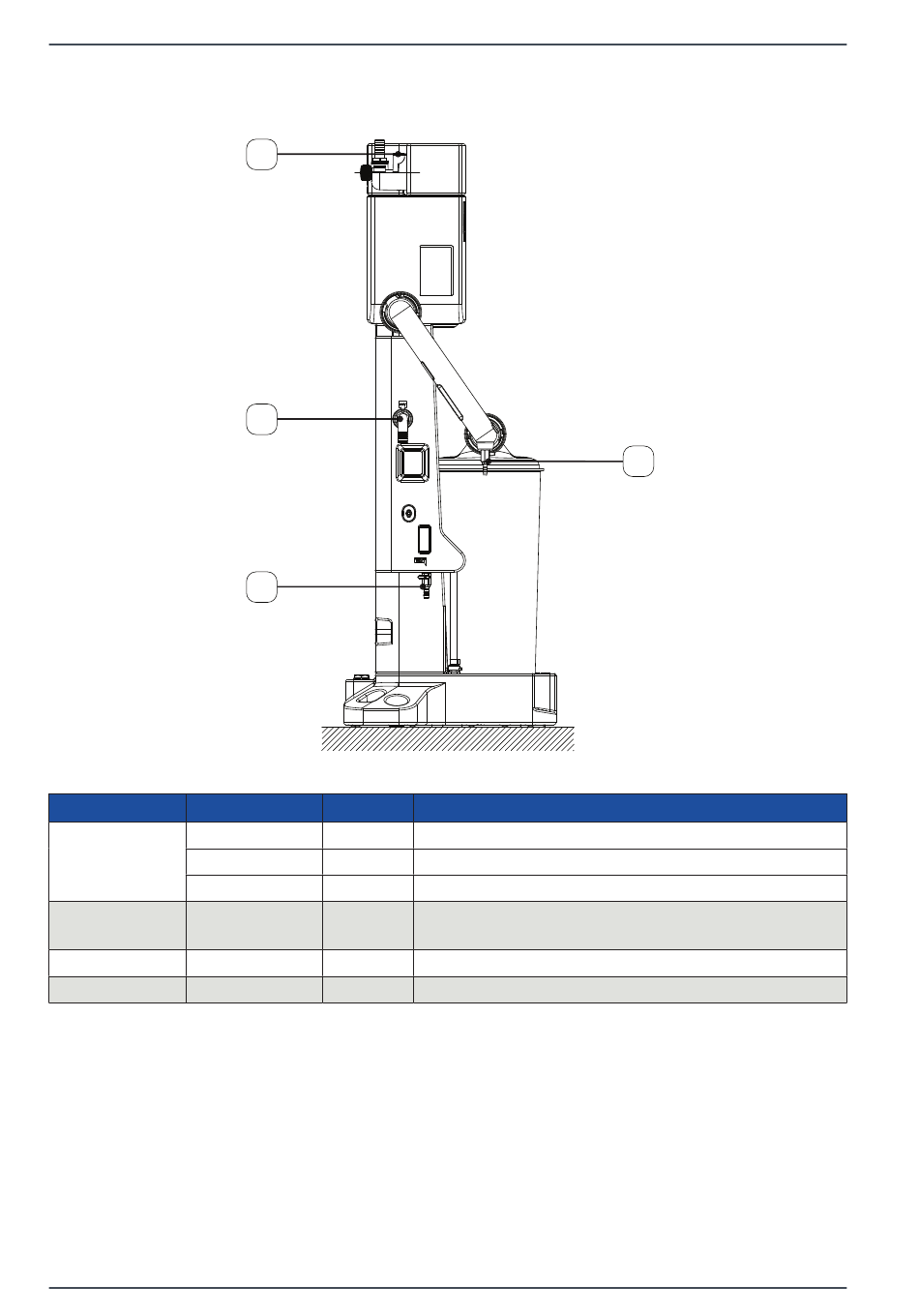

4.5 Connections
No. Connection
25 mm (0.98 in)
[A] 13 mm (0.52 in)
[B] 25 mm (0.98 in)
[C] 12 mm (0.47 in)
[D] 12 mm (0.47 in)
22 | 68
A
B
C
Qty.
1
1
G1/2" 2
1
1
1
Description / explanation
Hose connection, connection for the condensate inlet
Hose connection, connection for the condensate inlet
Connection for the condensate inlet
Elbow connector, connection for draining the purified
condensate
Service valve and hose connection
Drain valve with hose connection
Installation and operating manual
