QWIK-PURE CS
®

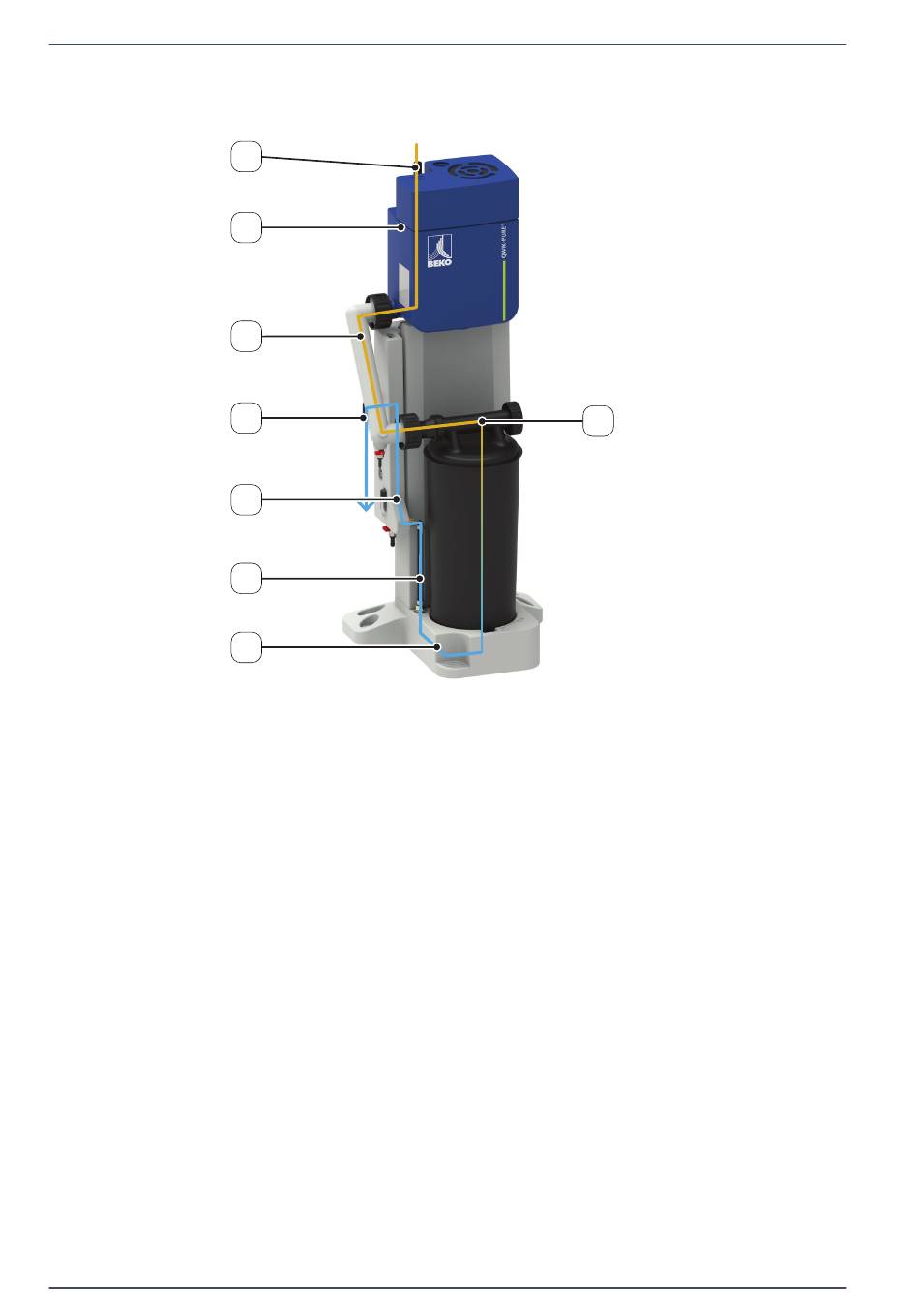

3.2 Function description
The condensate is conveyed from the condensate collection line through the condensate inlet [A] into the
pressure relief chamber [1]. In the pressure relief chamber [1], entrained compressed air is separated before
the condensate flows through the connecting pipe [3] into the filter cartridge [10].
The condensate flows through the filter cartridge [10] into the collector [8].
The purified condensate is conveyed from the collector [8] through the riser duct [9] into the clean water
tank [4]. The purified condensate is conveyed into the wastewater connection through the condensate drain
port [B] of the clean water tank [4].
If the filter cartridge [10] is saturated with oil, the filter cartridge [10] will need to be replaced (see section
"9.3.2 Replace filter cartridges" on page 43).
A level indicator [12] is integrated into the pressure relief chamber [1]. If the fill level in the pressure relief
chamber [1] rises as a result of impaired condensate flow (please refer to section "14. Troubleshooting" on
page 65), the level indicator [12] will be pushed up so that the red marking on the level indicator [12] will
become visible.
16 | 68
A
1
3
B
4
9
8
Installation and operating manual
10
