Installing Cord Locks
To install the cord locks, follow these steps:
1. Remove the dual AC assembly from the library by removing the six screws that
attach the assembly to the library (circled in Figure D-1).

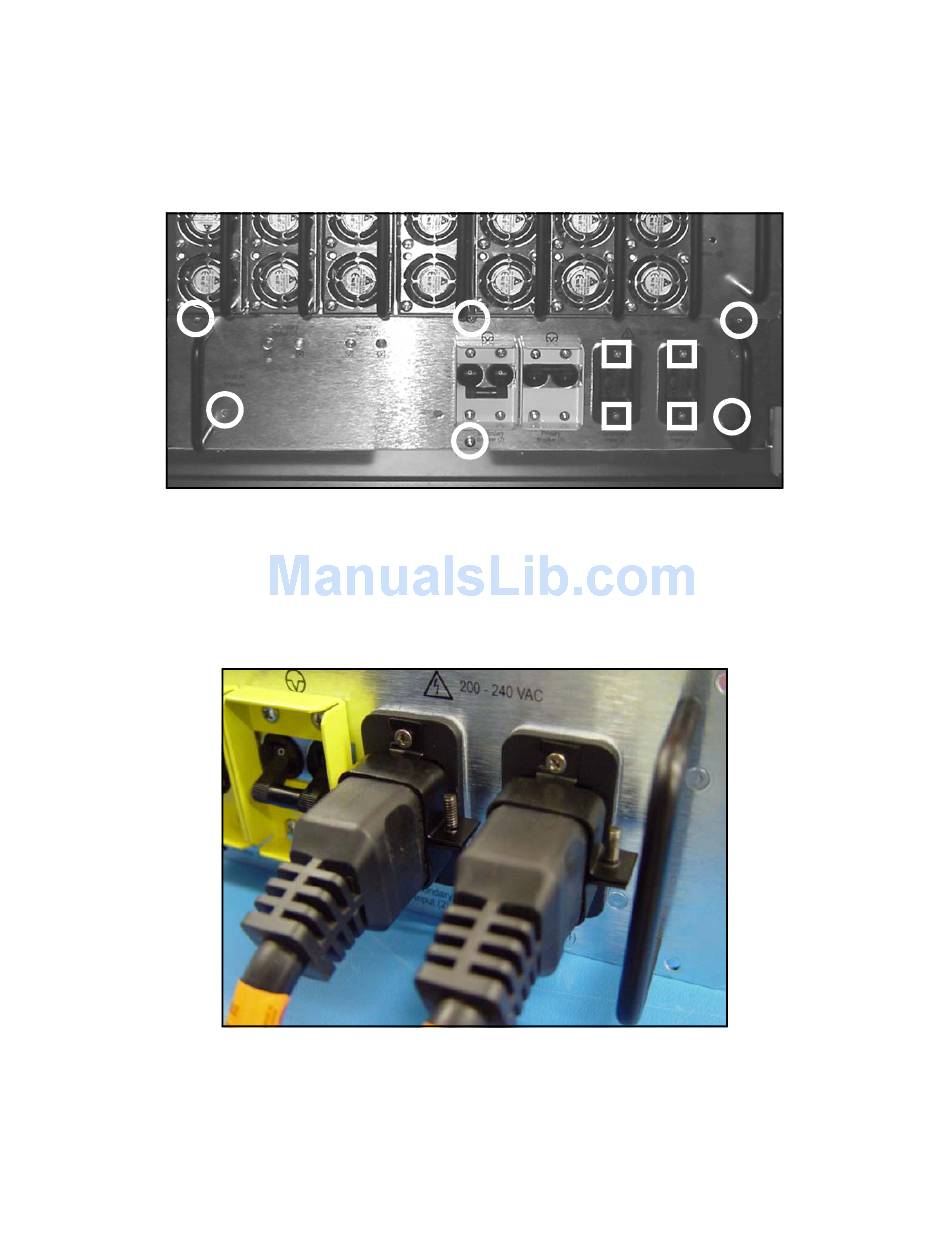

Figure D-1 The screws on the dual AC assembly.
2. Remove the two screws for each of the two input plugs in the dual AC assembly
(shown in squares in Figure D-1).
3. Place the cord lock on the cord end (Figure D-2), then re-install the screws,
making sure that the cord is fully seated in the connector.
Figure D-2 Install the cord lock.
4. Tighten the cord lock clamp screws.
5. Re-install the dual AC assembly with the power cords attached using the six
screws removed in Step 1.
