Comb (combined state)
This option sets the combination state of the channel, the options are Off,
Series, Para, Track, In Series/Para/Track mode, data save/read operation is
not supported.
The following is an example of the setting method and connection procedure
for the front panel terminals.
Attention:
Selecting series and parallel connection requires a hardware connection to be
valid. The voltage or current in the circuit must not exceed the rated range of
the terminals before series or parallel connection operation.


Off (release the serial-parallel and synchronization settings of the
channel)
This option is used to unlock the serial, parallel and synchronization
settings of the channel, after selecting it, press the
"Remove success!" will be displayed if it is successful.

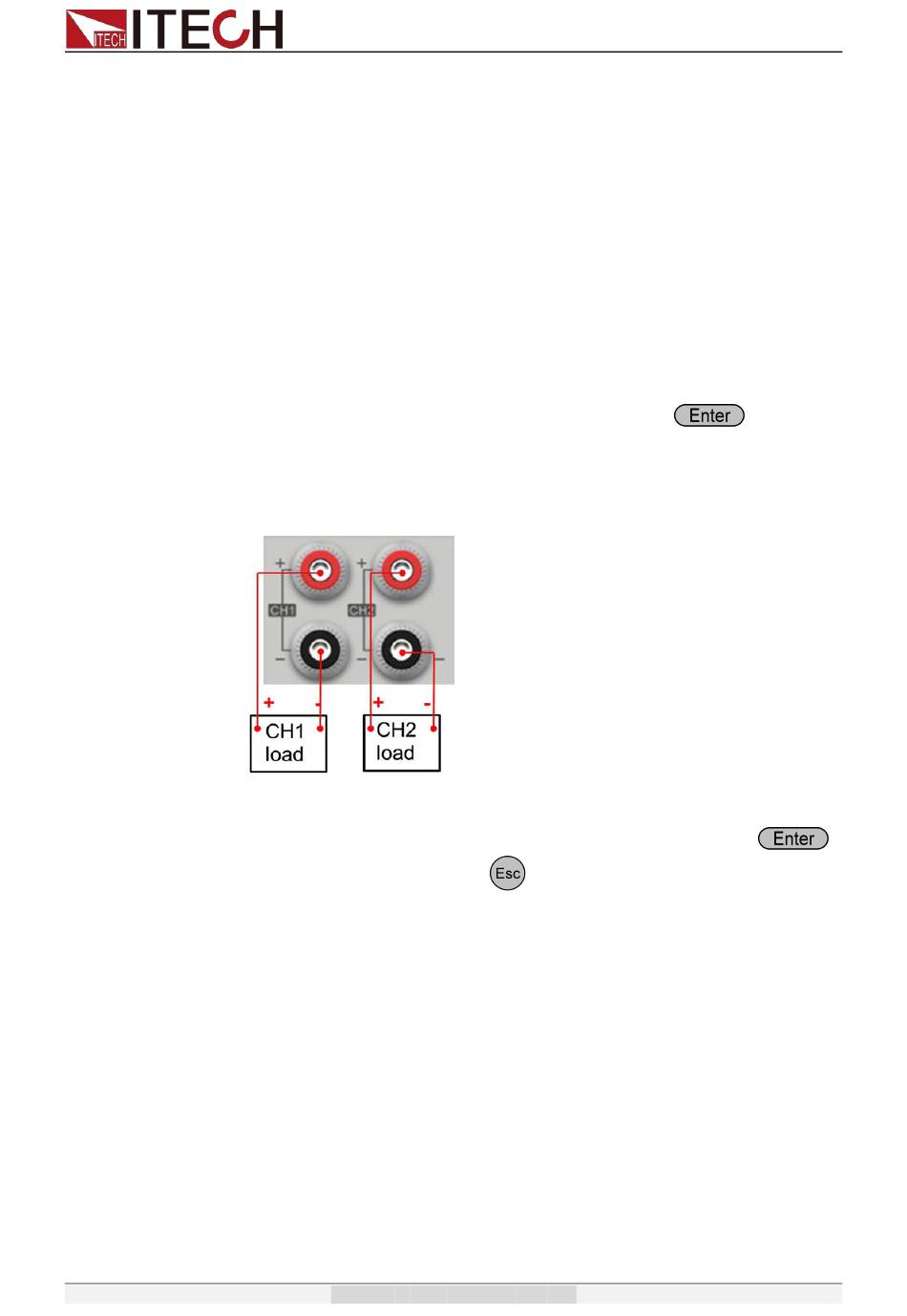

Independent mode terminal wiring
In the power output OFF state, wire as follows:
Series (output series setting)
Select this to connect CH1 and CH2 channels in series. Press
to confirm the selection, press
Note: The current used in series must not exceed the rated current of
CH2 by more than 5A.
Set CH1 and CH2 to series connection status, the panel will prompt
"Series Success!". After displaying 2S, the system will exit the menu
automatically.
Series Terminal Wiring
In the power output OFF state, wire as follows:
Copyright © Itech Electronic Co., Ltd.
to exit the selection.
Function and Features
key, and
