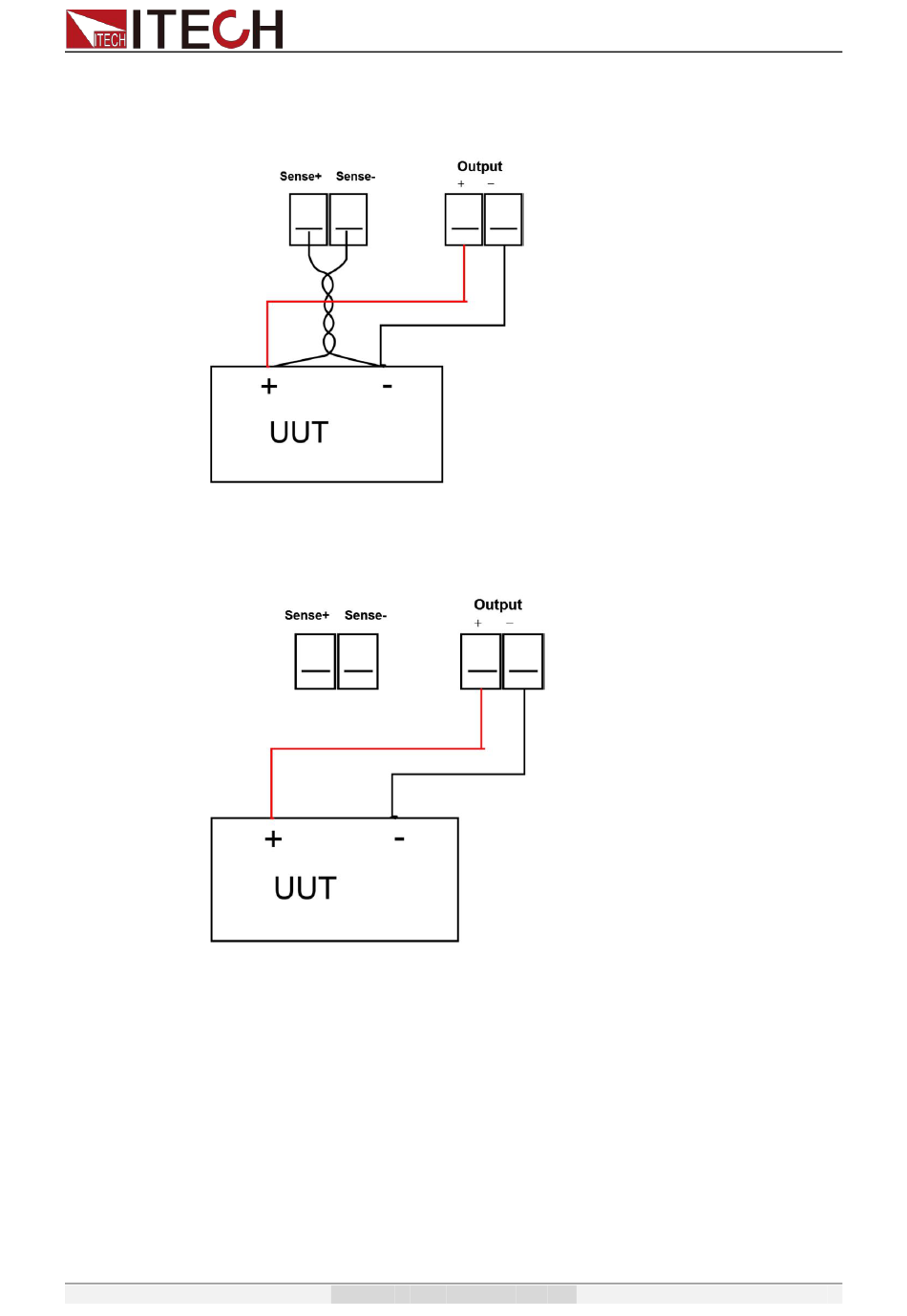

Remote measurement function (SENSE)
Setting ON indicates that the remote measurement function is turned on, at
this time, refer to the following figure to connect the reception object.
Setting OFF indicates that the remote measurement function is turned off and
local measurement is used, refer to the following figure for connecting to the
measured object.
The factory setting is the OFF option.
Internal load switch setting (LEAK)
Set to ON to turn on the internal load, the Meter voltage will drop fast to 0 after
outputting OFF;
Setting OFF means that the internal load is turned off and the Meter voltage
will drop to 0 slowly after the output is turned OFF.
If the object to be measured is a battery, and LEAK is set to ON, when the
power supply is still connected to the battery after the output is OFF, the
power supply will discharge the battery with a current of no more than 200mA,
so please pay attention to disconnect the connection between the object to be
measured and the power supply in time so as not to continuously discharge
