11.4.2 Retro-fitting compressor cooling
After removal of the back wall (see Chapter 11.4) fit the new back wall with the cooling unit and
already mounted in position.
Put in the new back wall with cooling coil, taking care not to trap the connecting cable from
-
the cooling unit.
- Use a flat-head screwdriver to turn the 4 holders for the back wall 90
into place.
Plug the connection cable from the cooling unit into the electronics box (see wiring diagram).
-
Insert the "cool print".
-
The servicing of the cooling unit (230 V) may only be carried out by an authorised expert in
refrigeration systems!
IMPORTANT: The retro-fitting of compressor cooling increases the depth of the housing by
18cm.

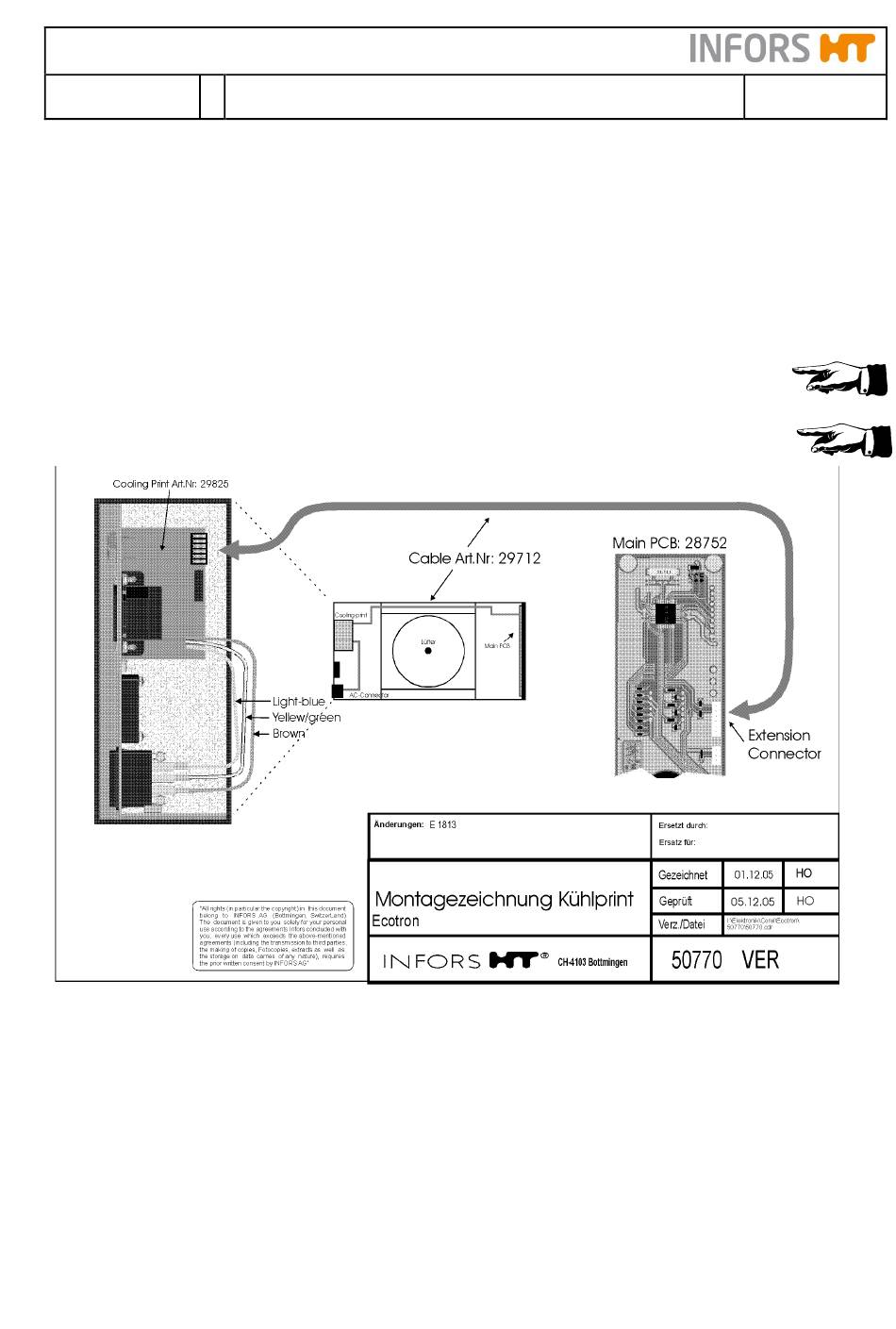

Fig. 15: Mounting instructions for "Cool print"
(Operating-Manual_Ecotron _e) page 37 of 53
o
to the right to lock it
