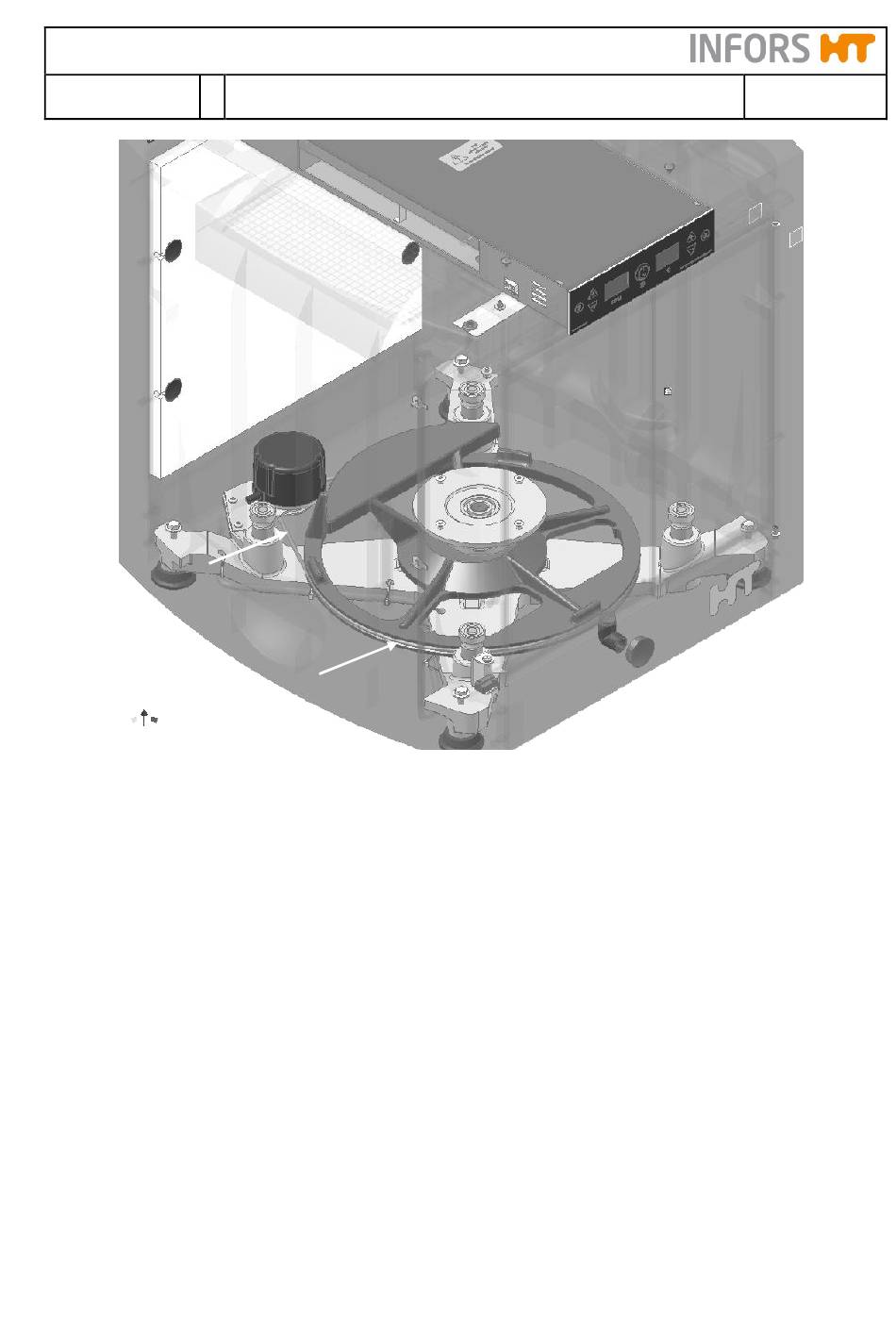

Fig. 13: Mounting the drive belt
11.3
Exchange of the shaker guides
Switch the equipment off and withdraw the mains power cable
-
-
In the case of the optional tray with adhesive matting being fitted, remove the 4 crosshead
screws (see Chapter 7.6) to release the tray.
-
Remove the 4 screws (sunken head with inner hexagon M6 x 12) in the shaker table.
Takeout the shaker table (see Chapter 10.4).
-
-
Turn around on the table to demount the guides held by 4 cross-head screws ( M4x10)
The new guides are mounted in the reverse manner to the instructions given above.
-
(Operating-Manual_Ecotron _e)
page 35 of 53
