Multitron - Operating manual
Setup and Function

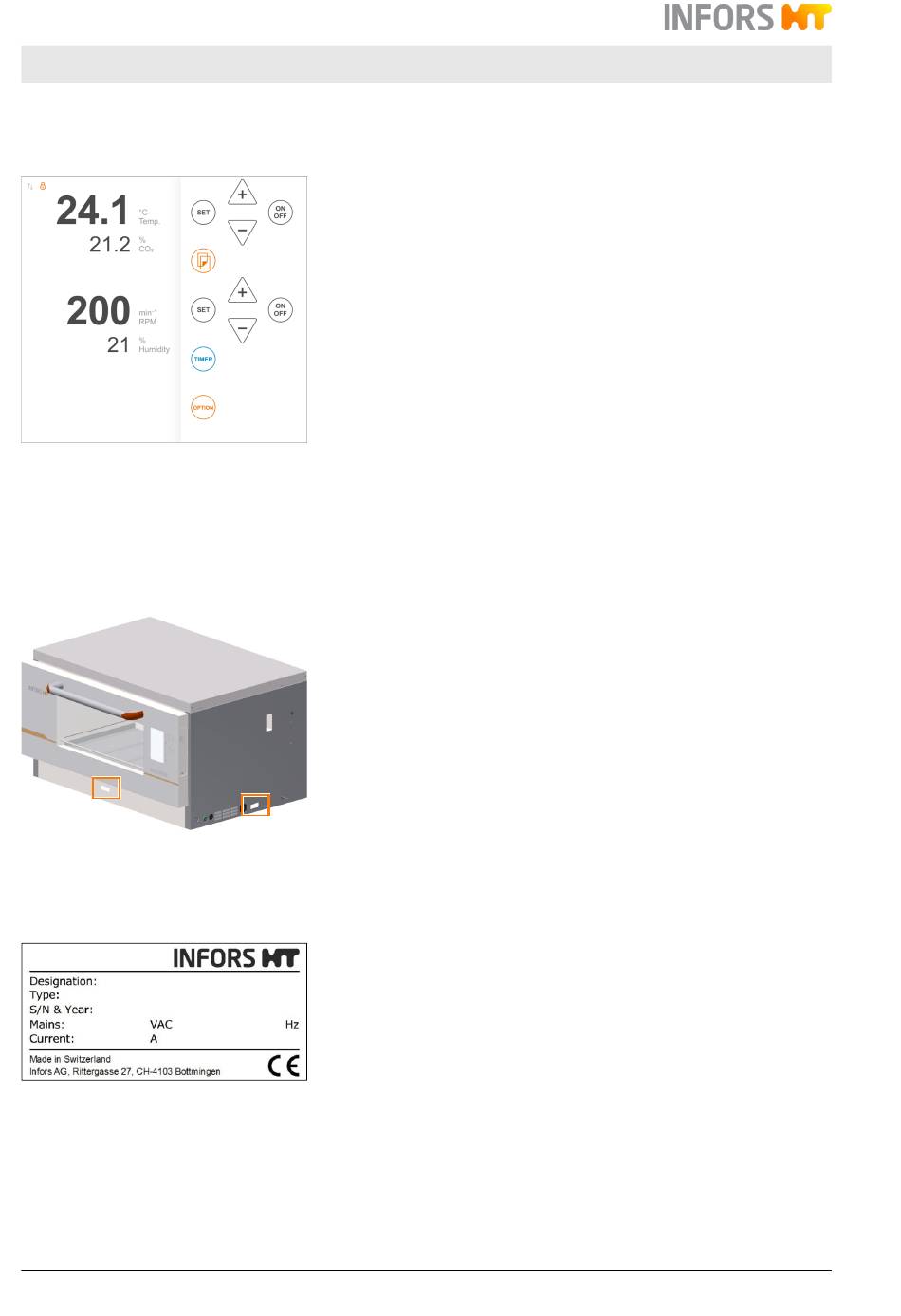

3.6.2 Operating Panel
3.7 Markings on the Device
3.7.1 Identification Plate
Position
Content
Page 36 of 140
All device functions can be controlled directly via the operating panel
on the front of the device. The operating panel is divided into a display
section and an operating section.
In the display section on the left side, information on actual values
■
and setpoints, run times of the timer function and fault notifica-
tions are displayed, among other things.
The keys in the operating section on the right side can be used
■
to set the parameters and the timer function and adjust the basic
settings of the device.
For more information on the display and operating elements on the
operating panel, see ⮫ Chapter 1.3 'Operating and Display Elements'
on page 13.
There is an identification plate identifying the device located on the
right side of the housing, directly next to the mains connection and
another one on the door at the front.
The identification plate is designed to allow clear identification of the
device. It contains the following information:
Manufacturer's name
■
Designation = category of device
■
Type = device type (name)
■
S/N = serial number
■
Year = year of manufacture
■
Mains = nominal voltage and frequency
■
Current = power consumption
■
Manufacturer's address
■
CE marking
■
