12.2 Connections and Interfaces
Kopiervorlagen diverse

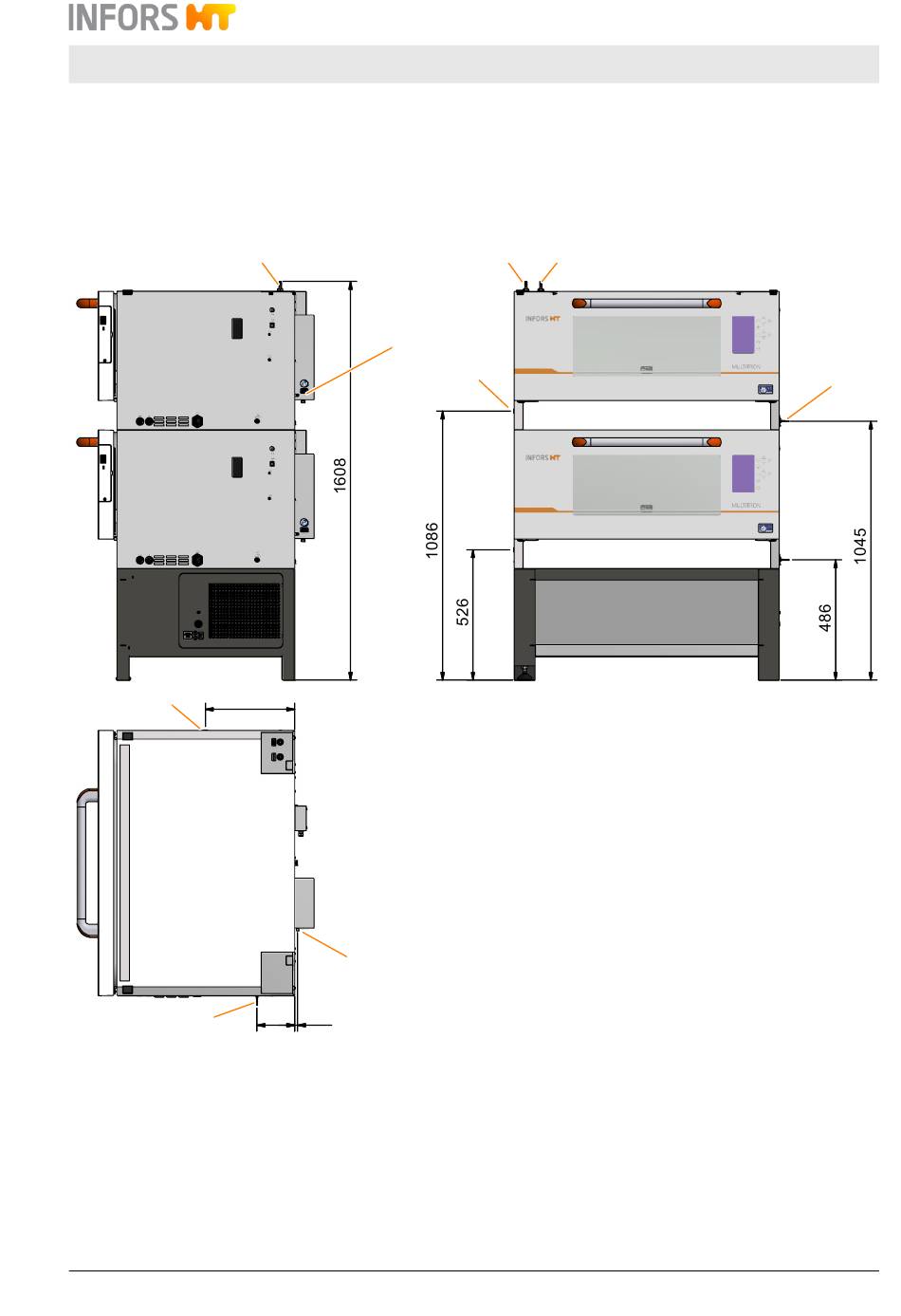

Two Units Stacked with a High Base
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
4
1 Cooling liquid In (hose nozzle DN10) / max 4.0 bar
2 Cooling liquid Out (hose nozzle DN10) / pressureless
3 Demineralised water In (UNF 1/4-28 for hoses 1/8") / max. 2.0 bar
4 Discharge outlet (internal thread G1/4")
5 CO In (hose nozzle DN04) / 0.4 bar to 0.6 bar
2
27.05.2024
1/2
4. C oolant in (M ale adapt or NW 1 0)
5. C oolant out (M ale adapt or NW 1 0)
E lect rical power supply:
230 V, 7.2 A, 50 - 60 Hz
1 1 5 V, 1 4.4 A, 60 Hz
360
3
152 12
5
Note: The indicated values apply to the 230 V version. The base of the
115 V version is slightly lower (406 mm instead of 450 mm).
