LCD and Top Cover

Remove the LCD and top cover as follows.
1. Power off the computer.
Remove the bottom base unit cover as follows.
2.
T
Turn the computer over with the VersaBay II slot facing towards you.
T
Locate the 10 screws that secure the bottom base unit cover. In all, there are 4
long screws, 6 short screws.
T
Remove the remaining screws (two of the ten were removed when removing
the keyboard).
T
Turn the laptop over and remove three screws. (There are 2 medium screws
and 1 short screw.)

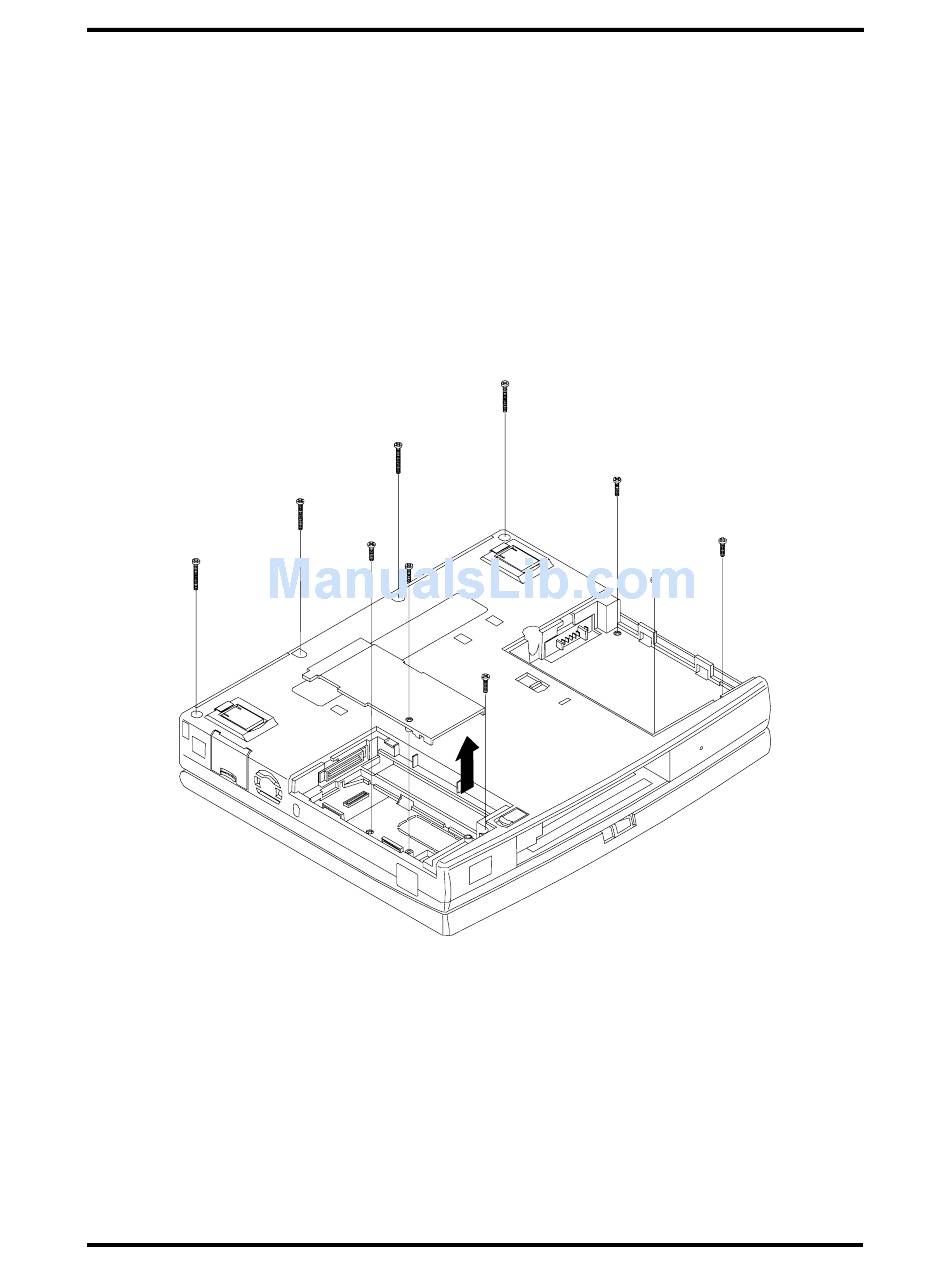

Figure 4-14 Removing the Bottom Base Screws
Field Service Guidelines 15
