Diskette Drive

Remove the diskette drive as follows.
1.
Make sure the NEC Versa is powered off, all options are disconnected, and the
LCD panel is closed.
Turn the system upside down with the front facing you.
2.
Locate the VersaBay II release latches on the bottom of the unit.
3.
Slide the front latch towards the hard disk drive side of the system, and hold it.
1.
2.
Push the middle latch towards you until the diskette drive pops part way out of
the unit.
3.
Continue to hold the latch near the front of the system to the left, and pull the
diskette drive the rest of the way out of the system.

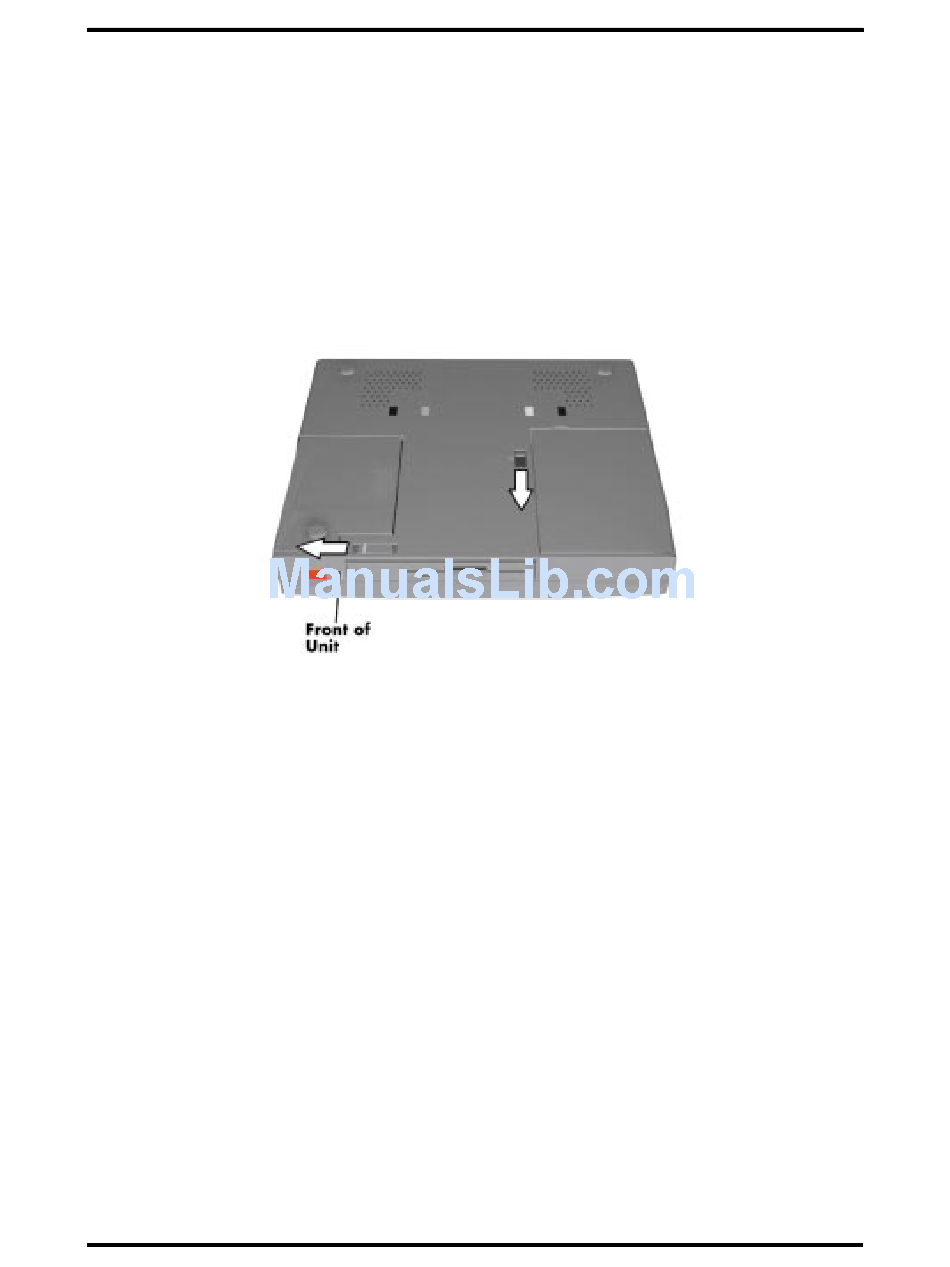

Figure 4-3 VersaBay II Release Latches
Field Service Guidelines 7
