Graph board.
2. Remove the 5 screws securing the I/O board to the bottom base unit.
I/O board position is maintained with the use of two spacers. A sound insulator is
attached to the top of the board. A PC card holder is found just below the board.
Lift the I/O board up and out of the base unit, being careful to note the position of
3.
the spacers and PC card holder.

ILLUSTRATED PARTS BREAKDOWN

The next section contains the NEC part numbers and illustrated parts breakdown (IPB) fig-
ure for the NEC Versa. The following figure shows the system exploded view diagram, or
IPB. Table 4-3 lists field-replaceable parts and corresponding part numbers.
Review the entire exploded diagram to see how each part is connected or assembled. Try to
sub-divide the entire diagram paying particular attention to the LCD Assembly, Top Unit
Cover Assembly, and the Base Unit Assembly.

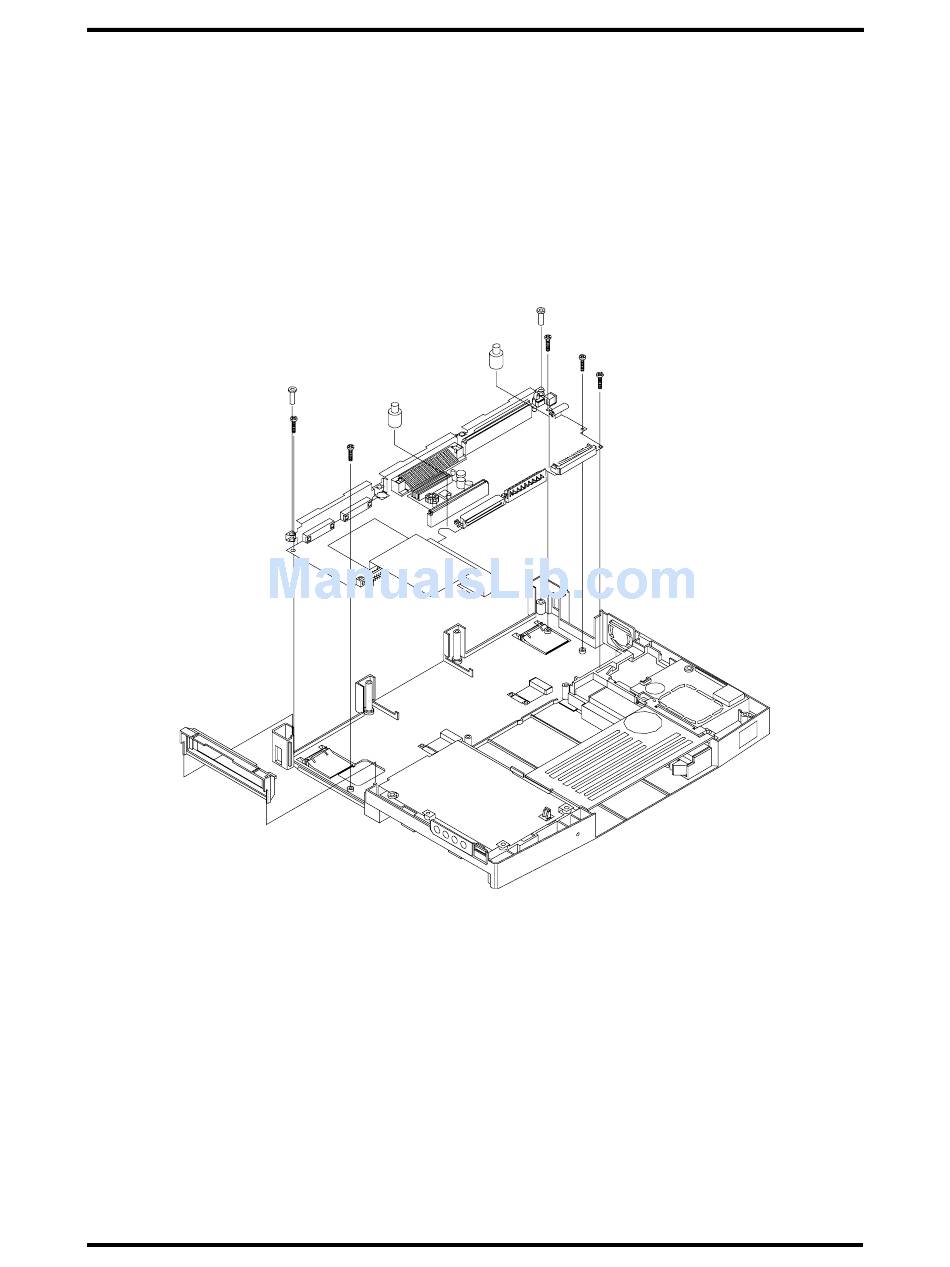

Figure 4-22 Removing the I/O Board
