Technical Information
Sound Board
The sound board (G8YAQ) provides the NEC Versa system with its audio capabilities via
line-in/line-out jacks, and headphone/microphone jacks. It is situated on top of the main
board. The sound board integrates the following features:
T
ESS Technology Plug and Play support
ES1878
Integrated Music Synthesis, ESFM™ and Stereo Digital to Analog Converter
(DAC) FM Synthesizer
16 bit Stereo CODEC
4.0KHz to 44.1KHz Sampling Rate
7 Channel Mixer.
T
3D Audio Effects Chip
ES938 Spatializer® 3D Stereo Sound

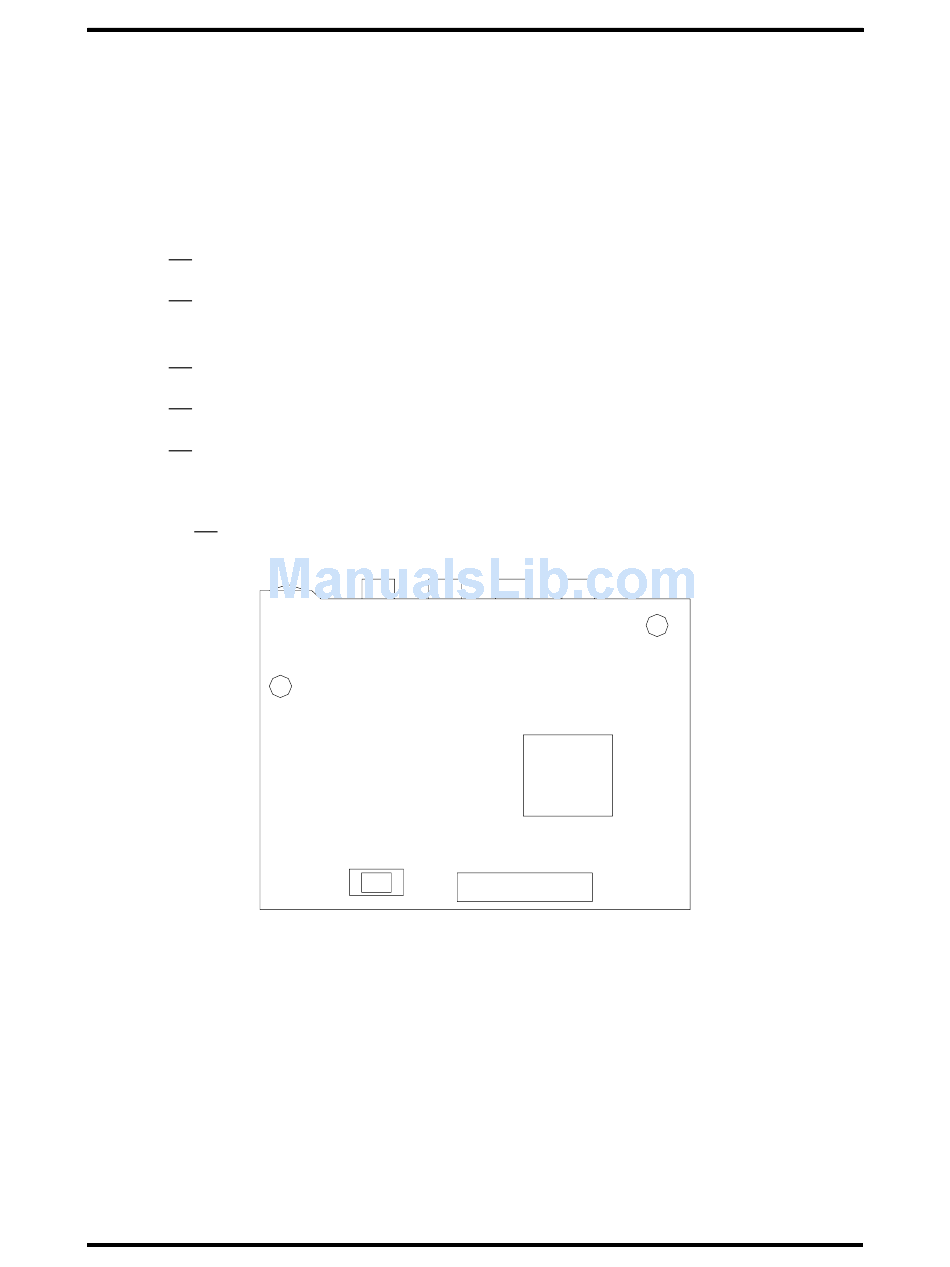

Figure 1-12 Sound Board Layout
