Cable Connections

Figure 2-3 shows the external connectors for the system. Where appropriate, secure cables
by tightening the cable holding screws.

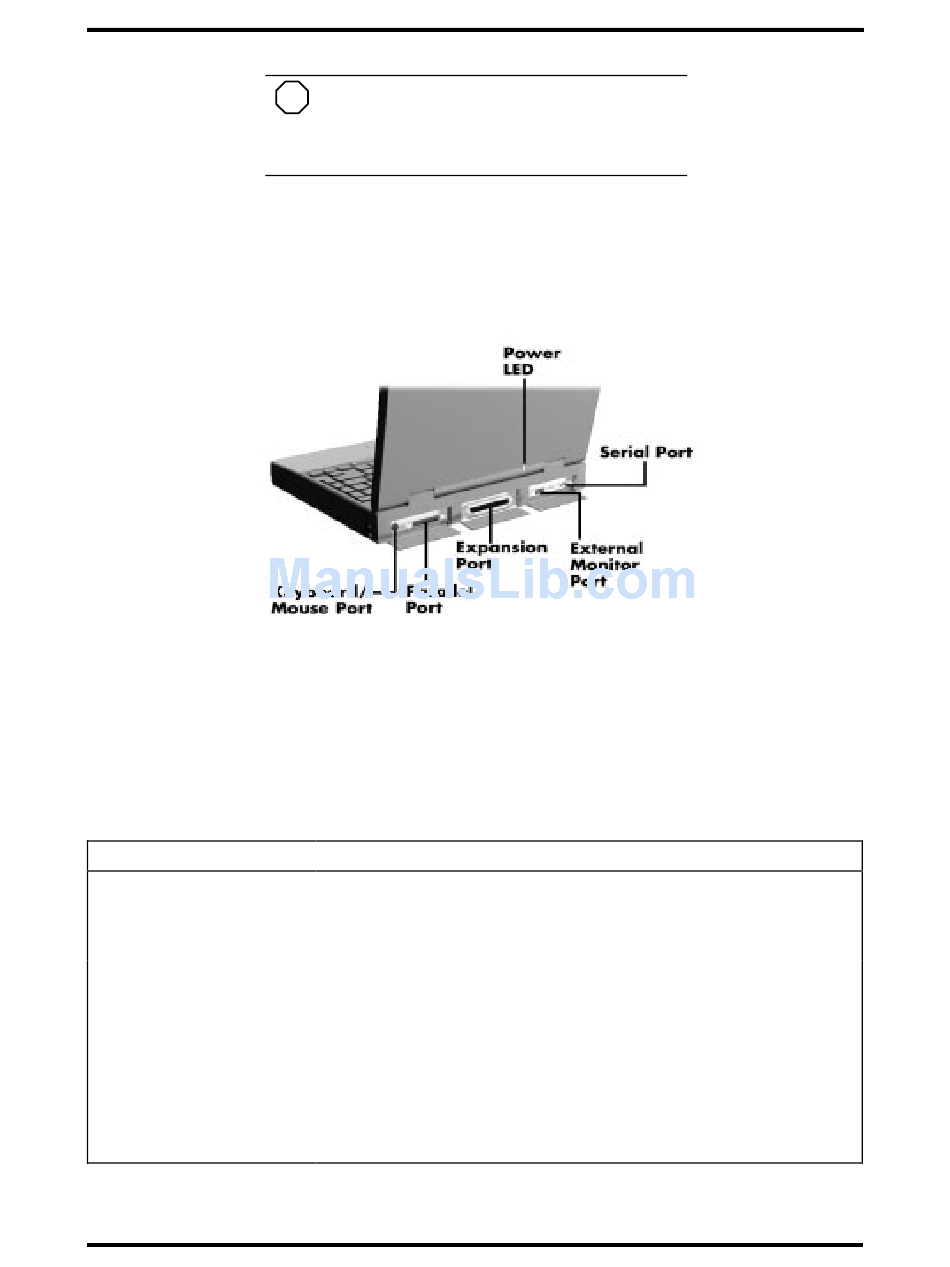

Figure 2-3 Power and I/O Connector Locations
Table 2-1 describes the I/O connectors on the rear of the system. For pin assignments, see
Appendix A.
I/O CONNECTOR
IR Port
Keyboard/Mouse Port
Parallel Port
Expansion Connector
Monitor Port
Serial Port
NOTE
If operating the system on DC power,
verify that the system has a charged battery pack
installed.
Table 2-1 I/O Connector Descriptions
FUNCTION
The infrared port allows the user to transfer files between the NEC
Versa and an IR-equipped computer, or print to an IR-equipped
printer without using cables.
Connects to a PS/2-style mouse, or a 101-key, external PS/2-style
keyboard.
Connects to a 25-pin parallel device.
Provides a 75-pin connector to attach the optional NEC Docking
Station 6000 Plus or PortBar 6000.
Connects to a 15-pin external CRT.
Connects to an RS-232C device.
Setup and Operation 2-3
