LCD and Top Cover

Remove the LCD and top cover as follows.
1. Remove the front plates as follows.
T
Remove the two front plates from the hand rest area on the laptop. It is rec-
ommended that you wear a rubber finger tip for gripping ease and slide the
plates from the laptop.
¦
Remove two each Left and Right Hinge covers by inserting a ceramic tip screw
2.
driver or fingernail in the notch on the rear of the each of the hinge covers.
NOTE
During reassembly there is a left and a
right front plate.
Remove two screws from each bay.
NOTE
During reassembly the screw under the
left plate are (2.5 x 6) and (2.5 x 3.5) under the
right plate.

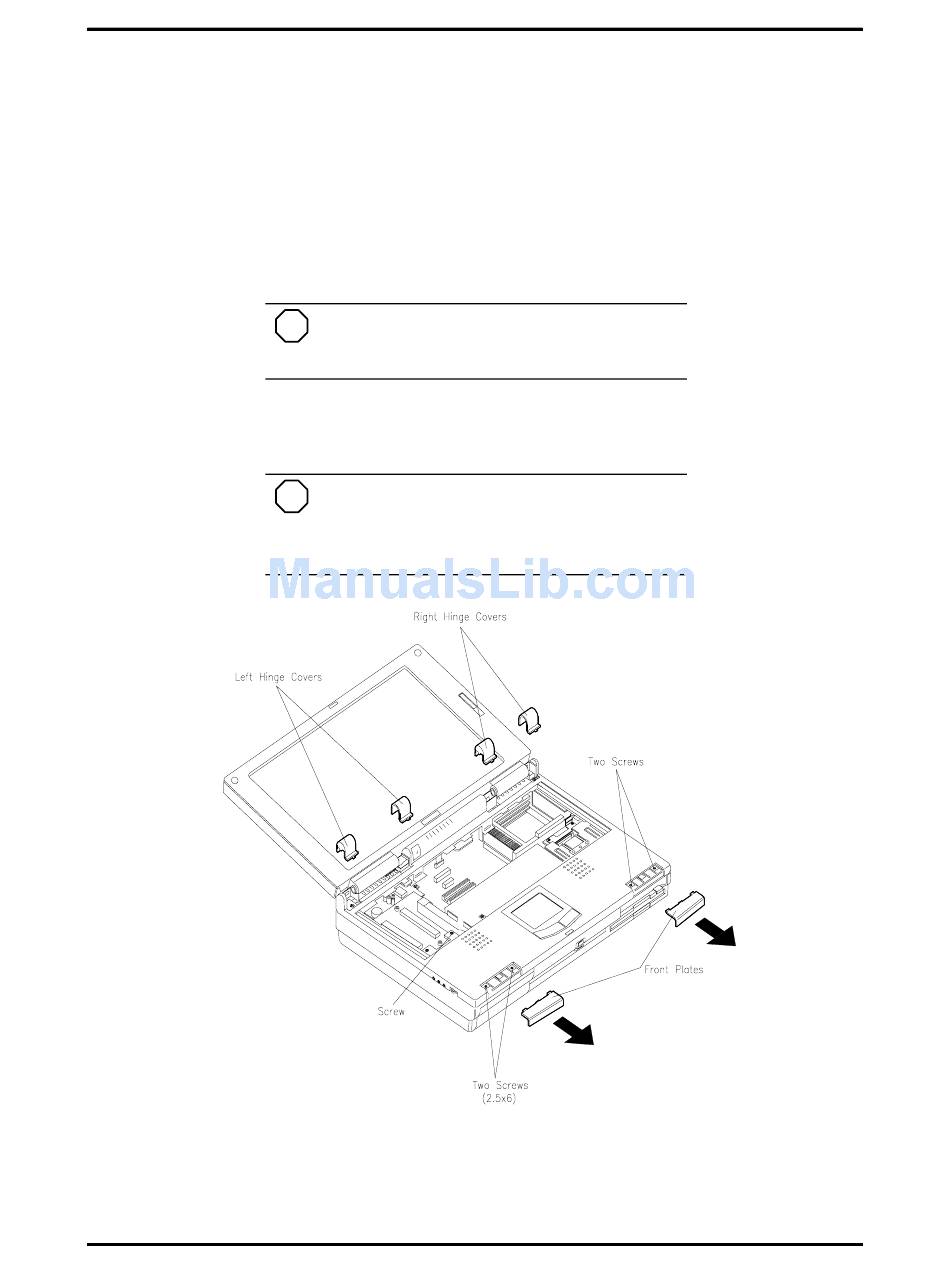

Figure 4-8 Removing the LCD Assembly (Step 1)
