LCD Status Bar
Remove the LCD status bar.
1.
Remove the LCD, top cover, keyboard, and the power button as previously
described.
Remove the LCD status bar as follows.
2.
T
Locate the ribbon cable that attaches to the Graph board via connector P9.
T
Use the tip of a screwdriver and carefully open the connector tabs.
T
Lift up the LCD status bar.

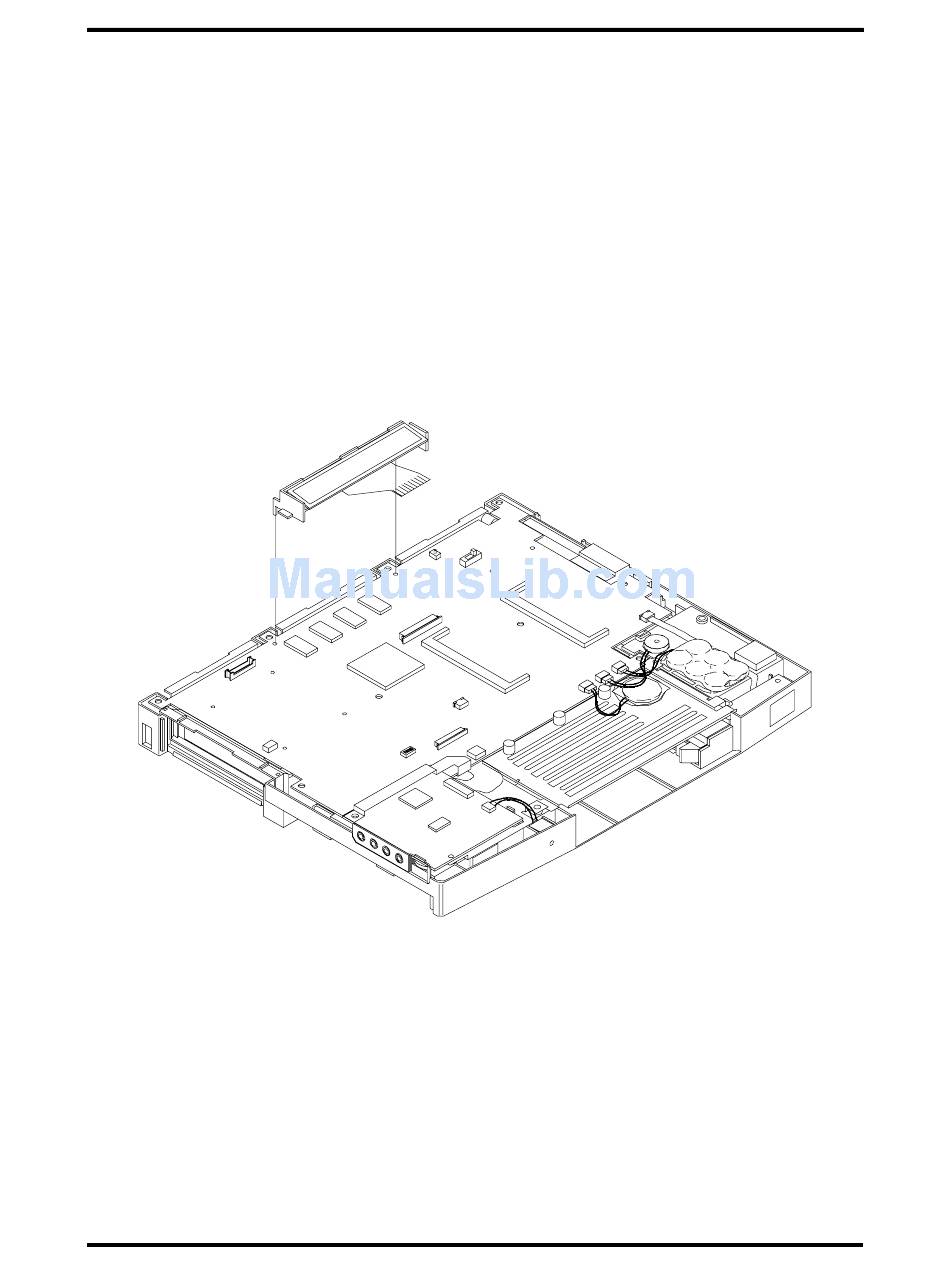

Figure 4-18 LCD Status Bar
Field Service Guidelines 19
