3.
Release the battery cover latch and slide the battery bay cover away from the
system.

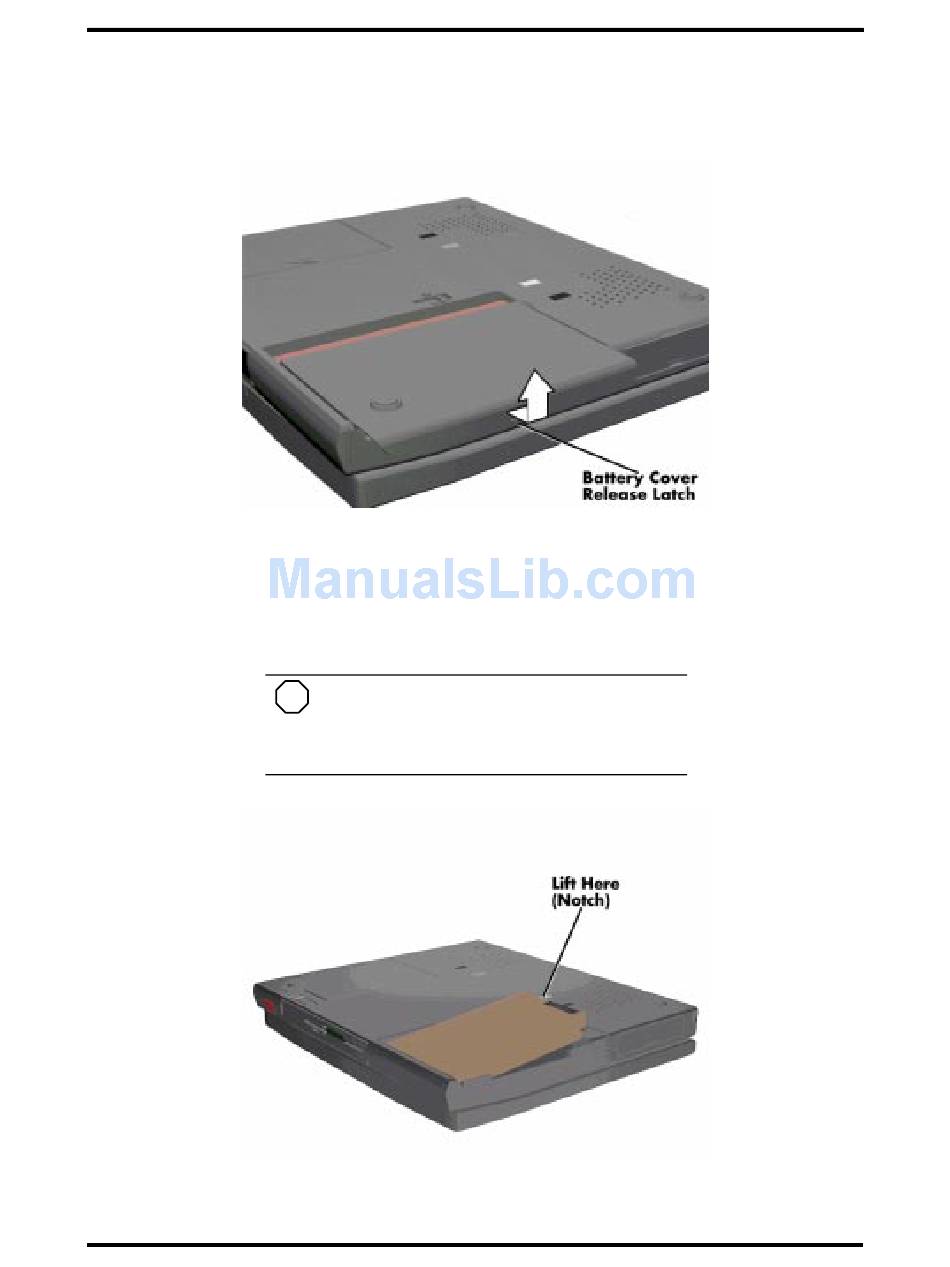

Figure 4-5 Removing the Battery Compartment Cover
1.
Place a finger in the notch on the battery and lift the battery out of the system.
NOTE
Always lift the battery out of the system by
the notch. Failure to do so can damage the bat-
tery terminals.
Figure 4-6 Removing the Battery
Field Service Guidelines 9
