1-4 Technical Information

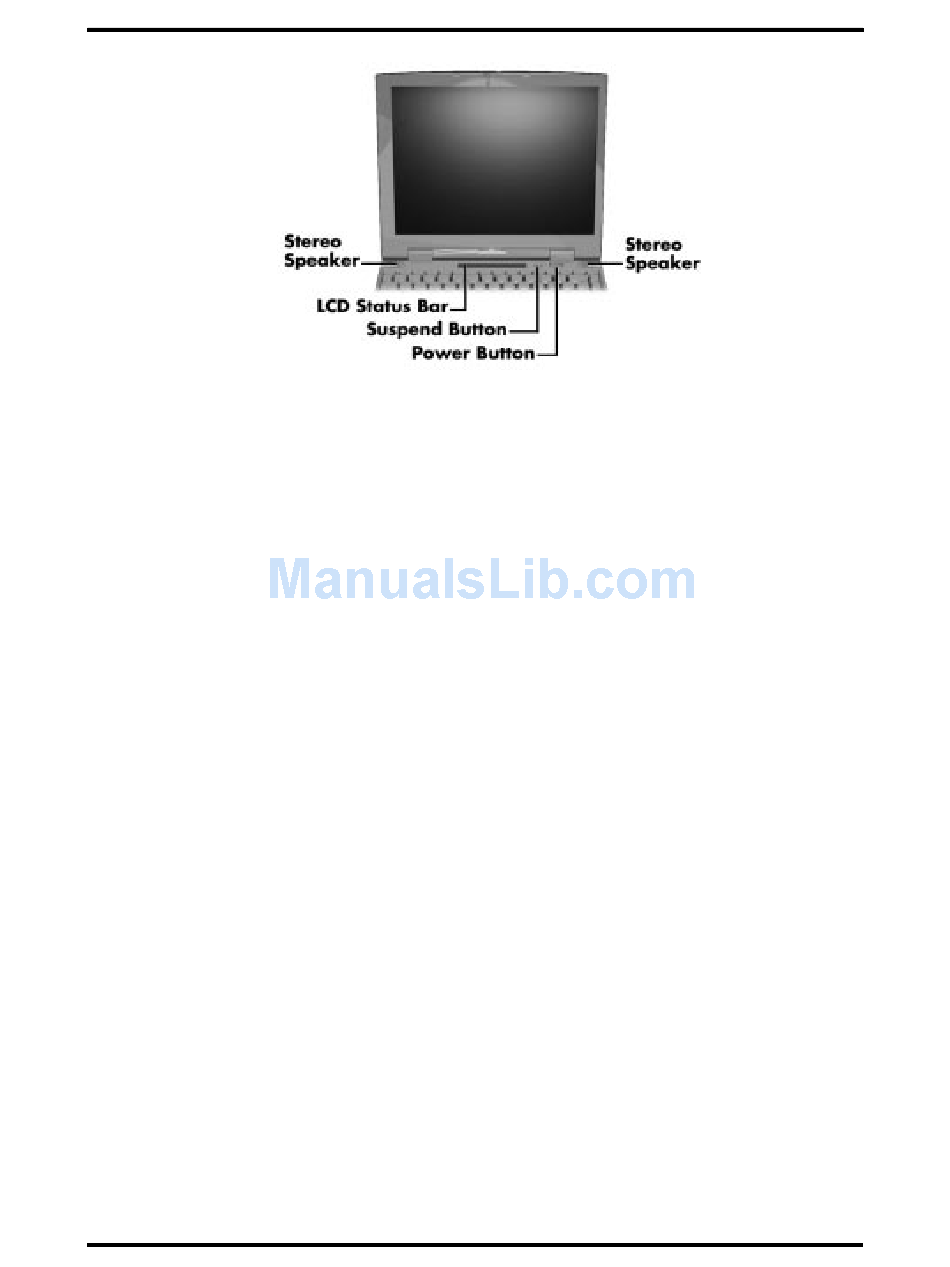

Figure 1-3 Power Button Location

LCD Status Bar and Power Indicator

The LCD status bar is situated right below the LCD screen. It provides an easy way to de-
tect system status. Different graphic icons appear on the LCD bar indicating that a device is
accessed, an operation performed, or a power mode activated. The graphic icons displayed
on the LCD bar resemble either their physical characteristics or their primary function. See
the LCD Status Bar figure shown next, and the descriptions that follow for the specific
meaning of each icon.
The power indicator is located just above and to the left of the status bar. The power indi-
cator lights green when computer power is on.
