Cable Connections

Figure 2-3 shows the rear external connectors for the system. Where appropriate, secure
cables by tightening the cable holding screws.

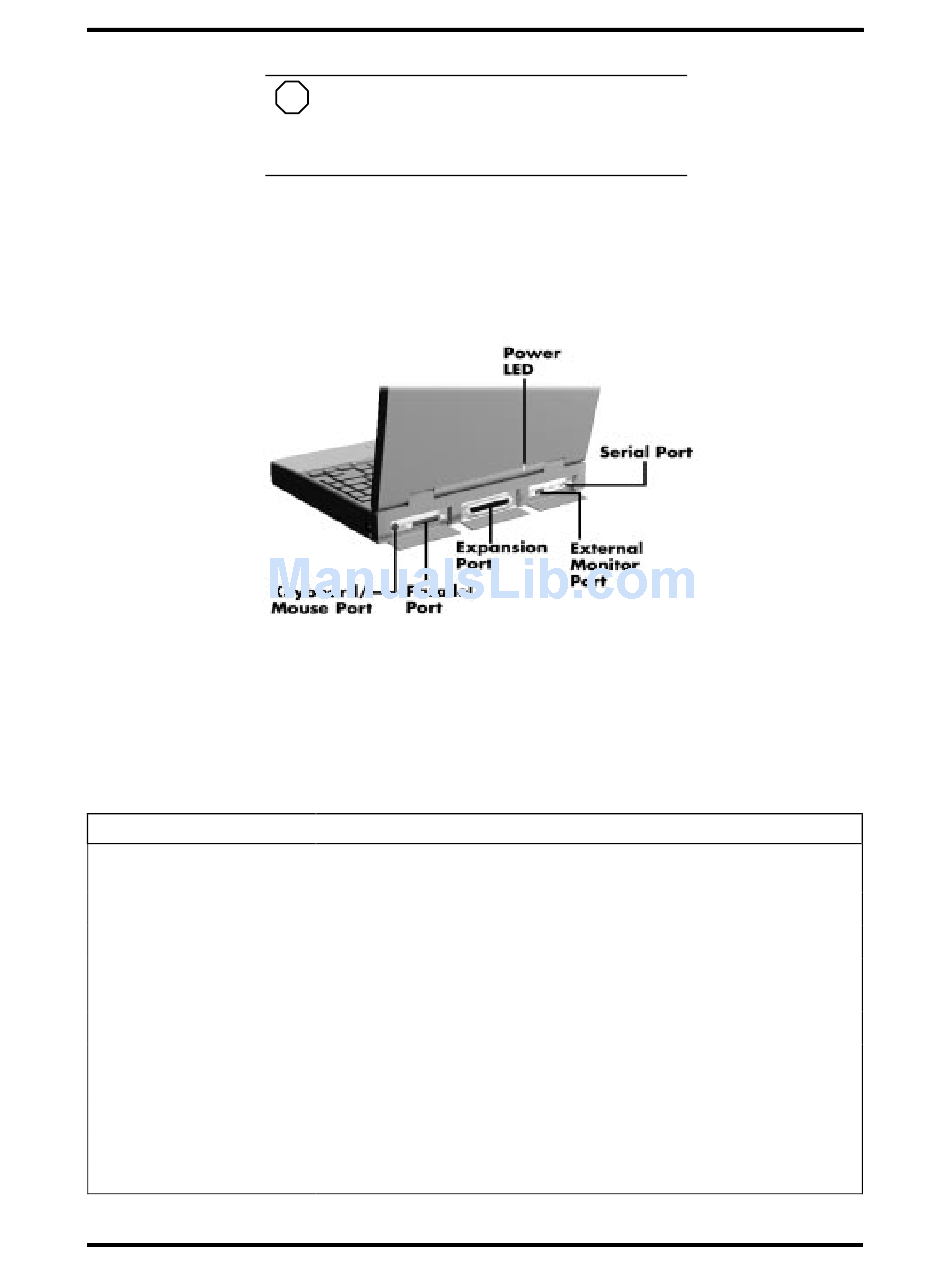

Figure 2-3 Power and I/O Connector Locations
Table 2-1 describes the connectors on the system. For pin assignments, see Appendix A.
I/O Connector
USB Port (right side)
TV Output Jack (right side) Connects to a RCA jack.
AC Power Port (right side)
Keyboard/Mouse Port
Parallel Port
Expansion Connector
Monitor Port
Serial Port
Audio Ports (left side)
NOTE
If operating the system on DC power,
verify that the system has a charged battery pack
installed.
Table 2-1 I/O Connector Descriptions
Function
Connects to a 4-pin USB device.
Connects to a AC adapter.
Connects to a PS/2-style mouse, or a 101-key, external PS/2-style
keyboard.
Connects to a 25-pin parallel device.
Provides a 75-pin connector to attach the optional NEC Docking
Station 6000 Plus, MiniDock 6000 or PortBar 6000.
Connects to a 15-pin external CRT.
Connects to an RS-232C device.
Connects to 4 mini pin jacks.
Setup and Operation 2-3
