3-12 Option Installation

SIMM Removal

Remove a SIMM as follows.
1. Remove the system unit cover as previously described.
2. Locate the SIMM sockets (see Figure Section 3-7).
Press the metal clips at the outer edges of the socket away from the SIMM.
3.
Push the SIMM away from the locking tabs and remove it from the socket (see
4.
Figure Section 3-8).
Install a SIMM per the following procedure.
5.
CAUTION: Reduce static discharge by touching
the system's metal chassis.

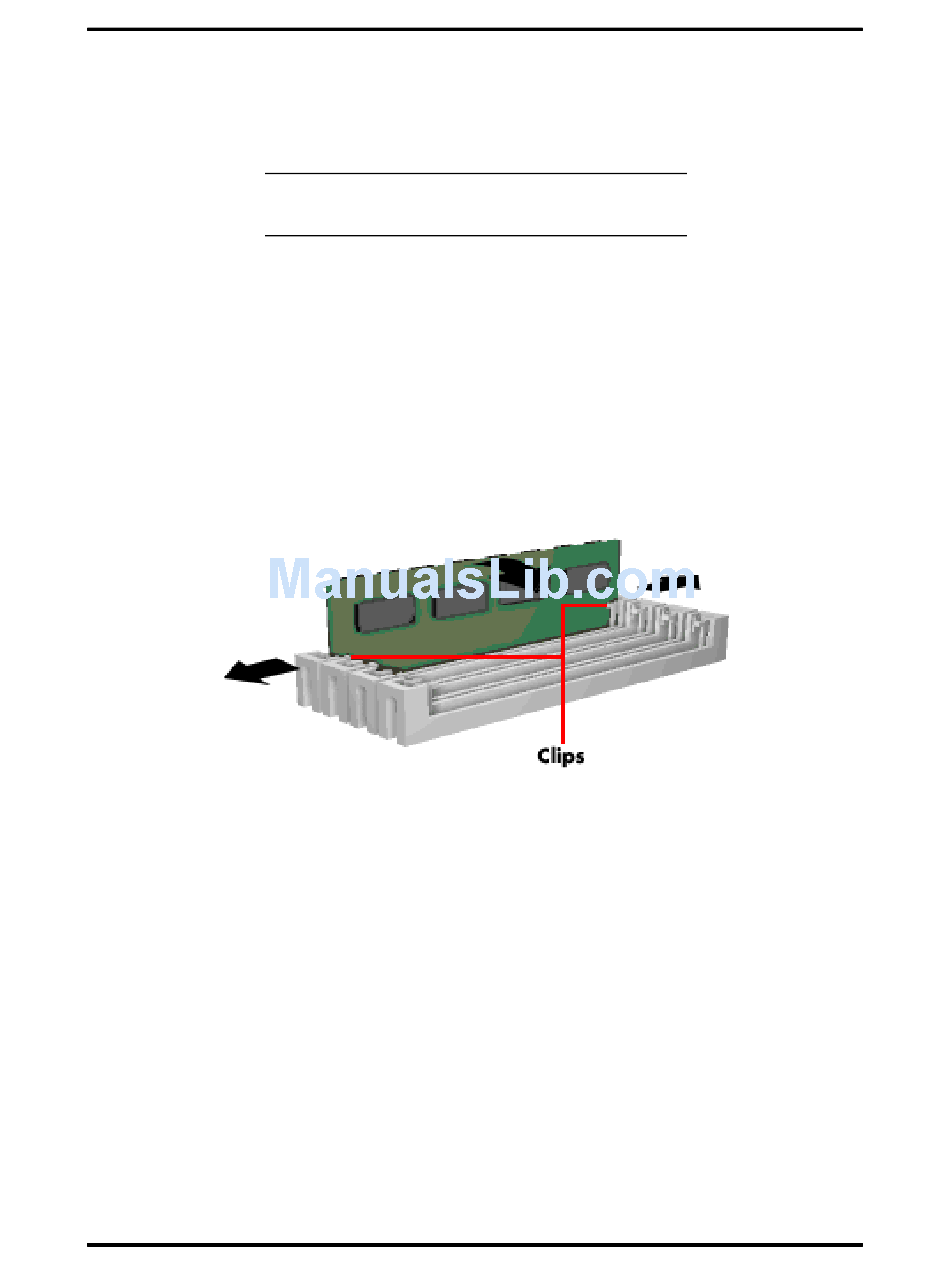

Figure Section 3-8 Removing a SIMM
