Appendix B
System Board Jumpers
This appendix provides jumper setting information for configuring the system for a
particular system requirement. Situations that require changing the jumper settings include
the following:
n
upgrading the processor
n
clearing a password
n
clearing CMOS.

JUMPER LOCATIONS

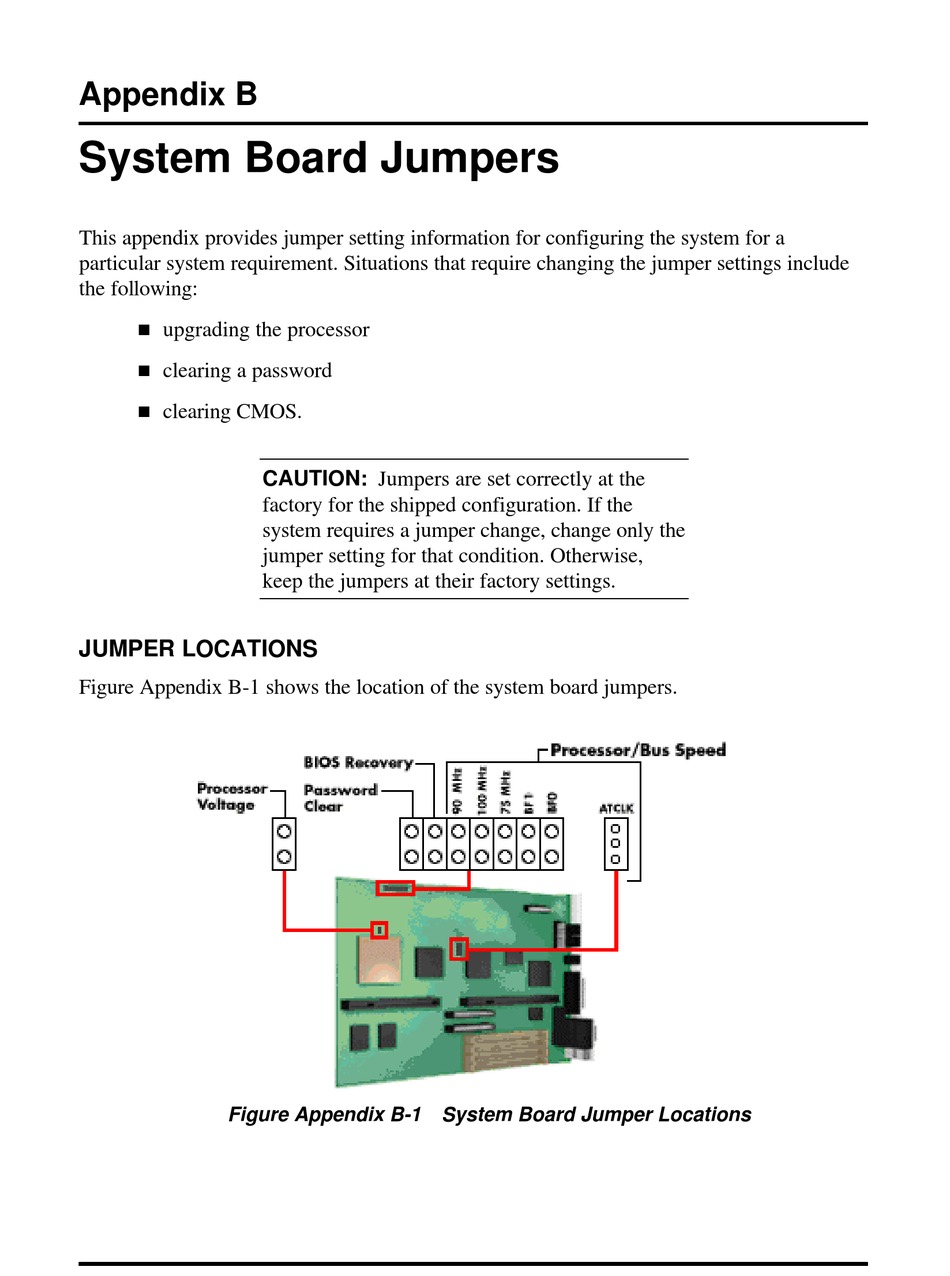

Figure Appendix B-1 shows the location of the system board jumpers.
Figure Appendix B-1 System Board Jumper Locations
CAUTION: Jumpers are set correctly at the
factory for the shipped configuration. If the
system requires a jumper change, change only the
jumper setting for that condition. Otherwise,
keep the jumpers at their factory settings.
