5-10 Repair
1. Remove the system unit cover as previously described (see "System Unit Cover
Removal" in this section).
2. Remove the front panel assembly as previously described (see "Front Panel
Assembly Removal" in this section).
Unplug the fan from its connector on the system board.
3.
Press in the card guide tabs on the front of the system unit (see Figure Section 5-
4.
10) to release the left side of the card guide from the chassis. From inside the
chassis, pivot the left side of the card guide and remove the card guide/fan bracket
assembly from the chassis (see Figure 5-10).

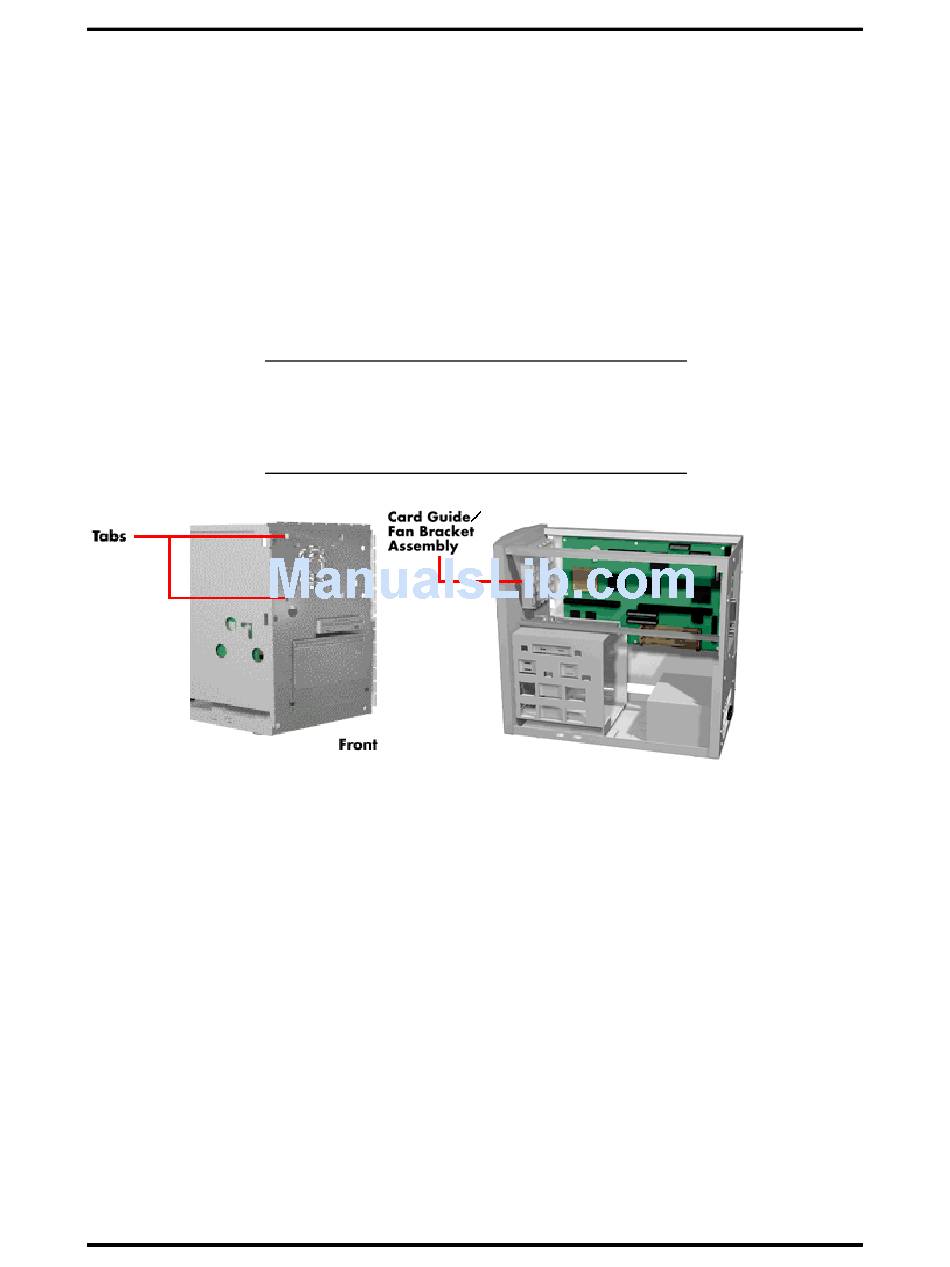

Figure Section 5-10 Removing the Card Guide/Fan Bracket Assembly

Speaker Assembly Removal

Remove the speaker per Figure Section 5-11 and the following steps.
1. Remove the system unit cover as previously described.
2. Remove the card guide/fan bracket assembly as previously described.
Unplug the speaker from its connector on the system board (see Appendix A for
3.
connector assignments).
Slide the speaker out from the four speaker tabs.
4.
NOTE: The fan is secured inside the bracket by
four tabs. To remove the fan from the bracket,
gently press out on each tab so that the fan can
be released.
