Remove the speaker from the system unit.
5.

3 1/2-inch Diskette Drive Removal

Remove the 3 1/2-inch diskette drive as follows.
1. Remove the system unit cover as previously described (see "System unit cover
Removal").
Unplug the diskette drive power cable and signal cable from the diskette drive
2.
(see Figure Section 5-12).

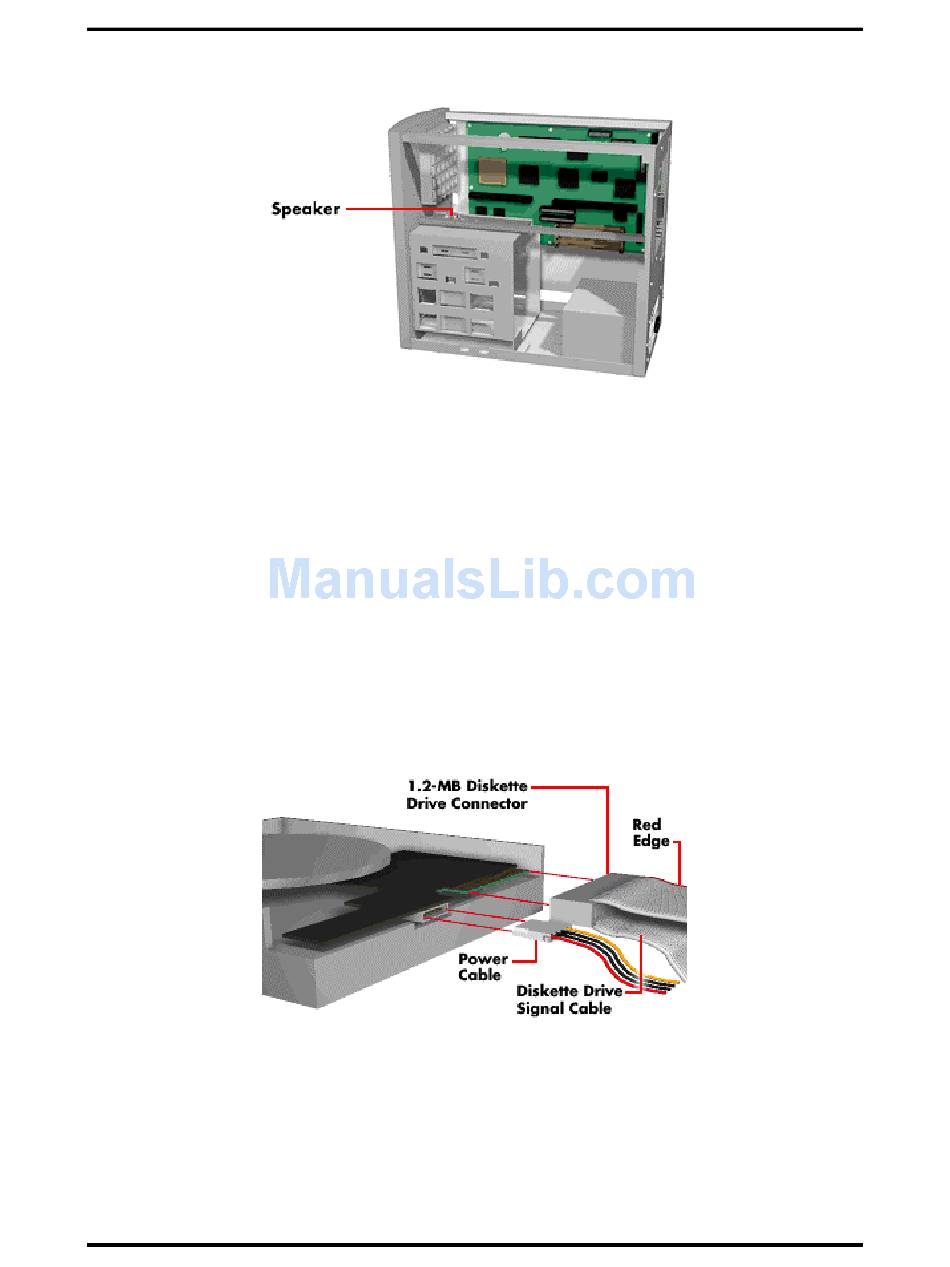

Figure Section 5-12 3 1/2-Inch Diskette Drive Cables
3. Remove the four screws, two on each side, from the 3 1/2-inch diskette drive (see
Figure Section 5-13).
Figure Section 5-11 Speaker
Repair 5-11
