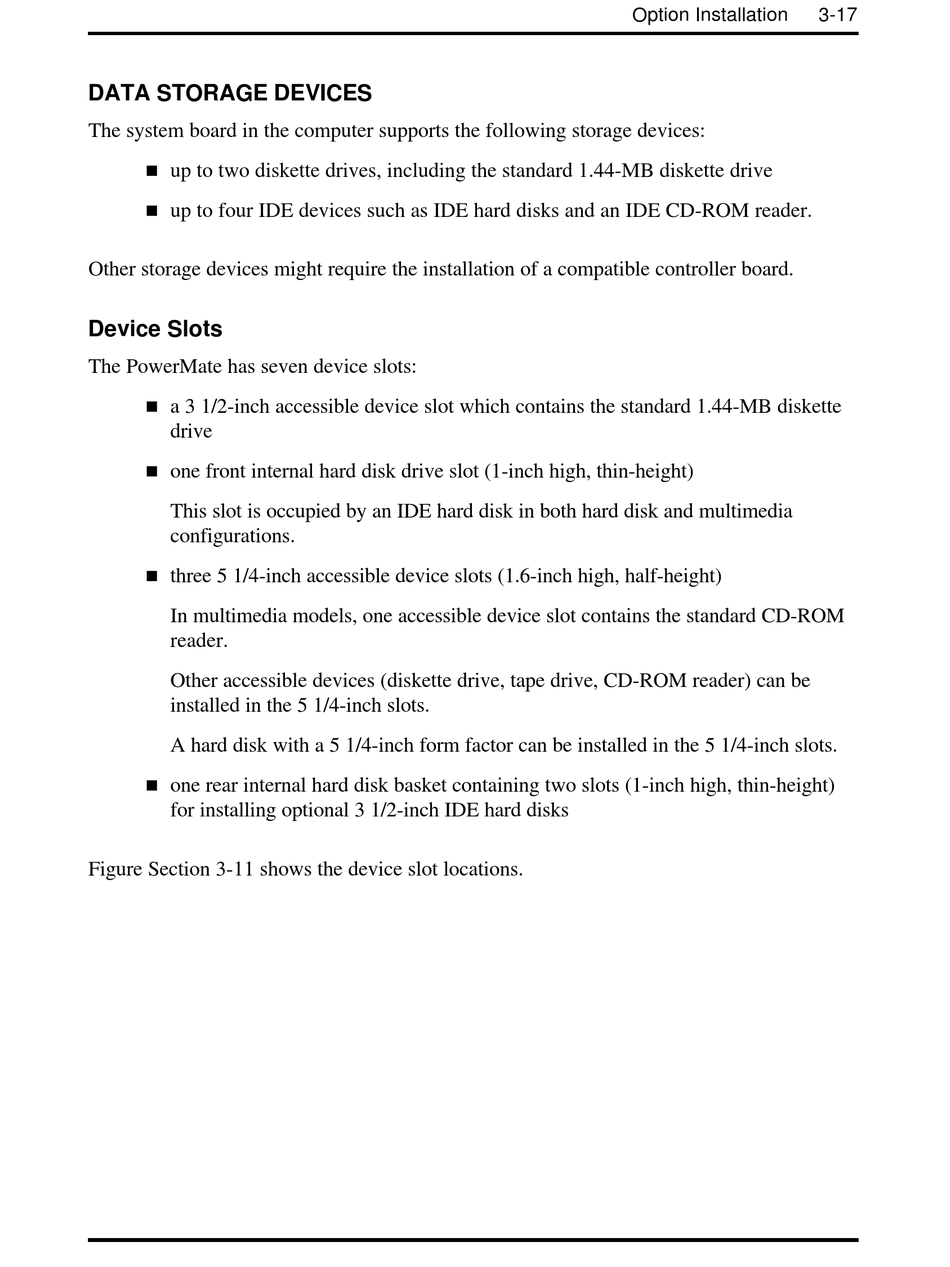

DATA STORAGE DEVICES

The system board in the computer supports the following storage devices:
n
up to two diskette drives, including the standard 1.44-MB diskette drive
n
up to four IDE devices such as IDE hard disks and an IDE CD-ROM reader.
Other storage devices might require the installation of a compatible controller board.

Device Slots

The PowerMate has seven device slots:
n
a 3 1/2-inch accessible device slot which contains the standard 1.44-MB diskette
drive
n
one front internal hard disk drive slot (1-inch high, thin-height)
This slot is occupied by an IDE hard disk in both hard disk and multimedia
configurations.
n
three 5 1/4-inch accessible device slots (1.6-inch high, half-height)
In multimedia models, one accessible device slot contains the standard CD-ROM
reader.
Other accessible devices (diskette drive, tape drive, CD-ROM reader) can be
installed in the 5 1/4-inch slots.
A hard disk with a 5 1/4-inch form factor can be installed in the 5 1/4-inch slots.
n
one rear internal hard disk basket containing two slots (1-inch high, thin-height)
for installing optional 3 1/2-inch IDE hard disks
Figure Section 3-11 shows the device slot locations.
