5-14 Repair

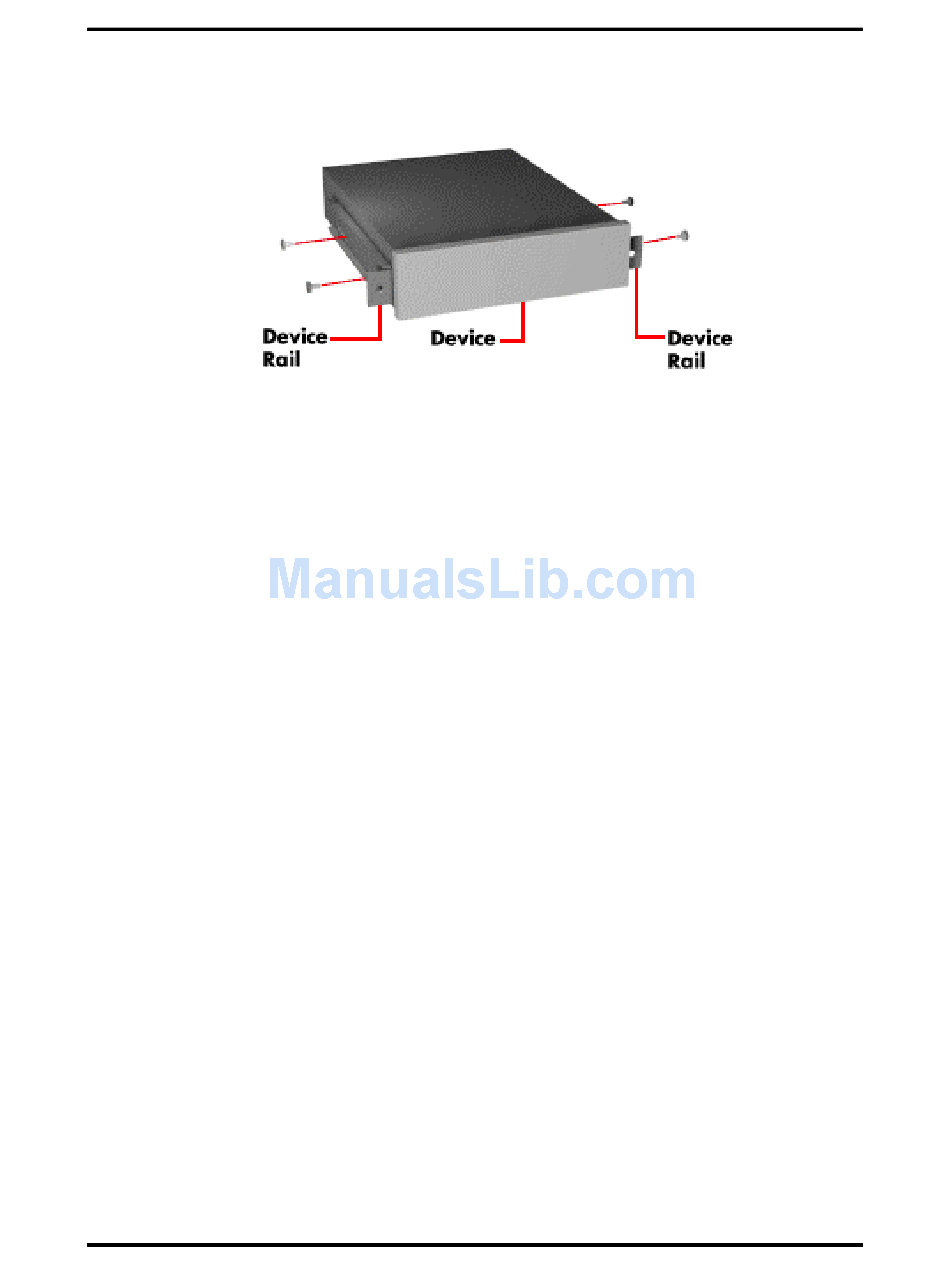

Figure Section 5-16 Removing the Device Rails

Rear Internal 3 1/2-Inch Drive Removal

Remove a second 3 1/2-inch hard disk drive from the system as follows.
Remove the system unit cover as previously described (see "System Unit Cover
1.
Removal" in this section).
Unplug the power and signal cables from the 3 1/2-inch internal drive and the
2.
standard hard disk drive installed in the rear internal drive bracket.
3. Remove the two screws that secure the rear internal drive bracket (see
Figure Section 5-17).
