Video Upgrade - NEC POWERMATE P - SERVICE MANUAL 1996 Service And Reference Manual

3-14 Option Installation

VIDEO UPGRADE

Upgrade the video memory by adding the 2- or 6-MB video WRAM upgrade module to the
video board as follows.
1. Remove the system unit cover as previously described.
Locate the video WRAM sockets (see Figure Section 3-10).
2.
If any expansion boards are obstructing your view of the sockets, remove the
boards (see Expansion Board Removal).
3. Align the notched ends of the module and the video board sockets (see
Figure Section 3-10). Using equal pressure, gently press the module into the
sockets.

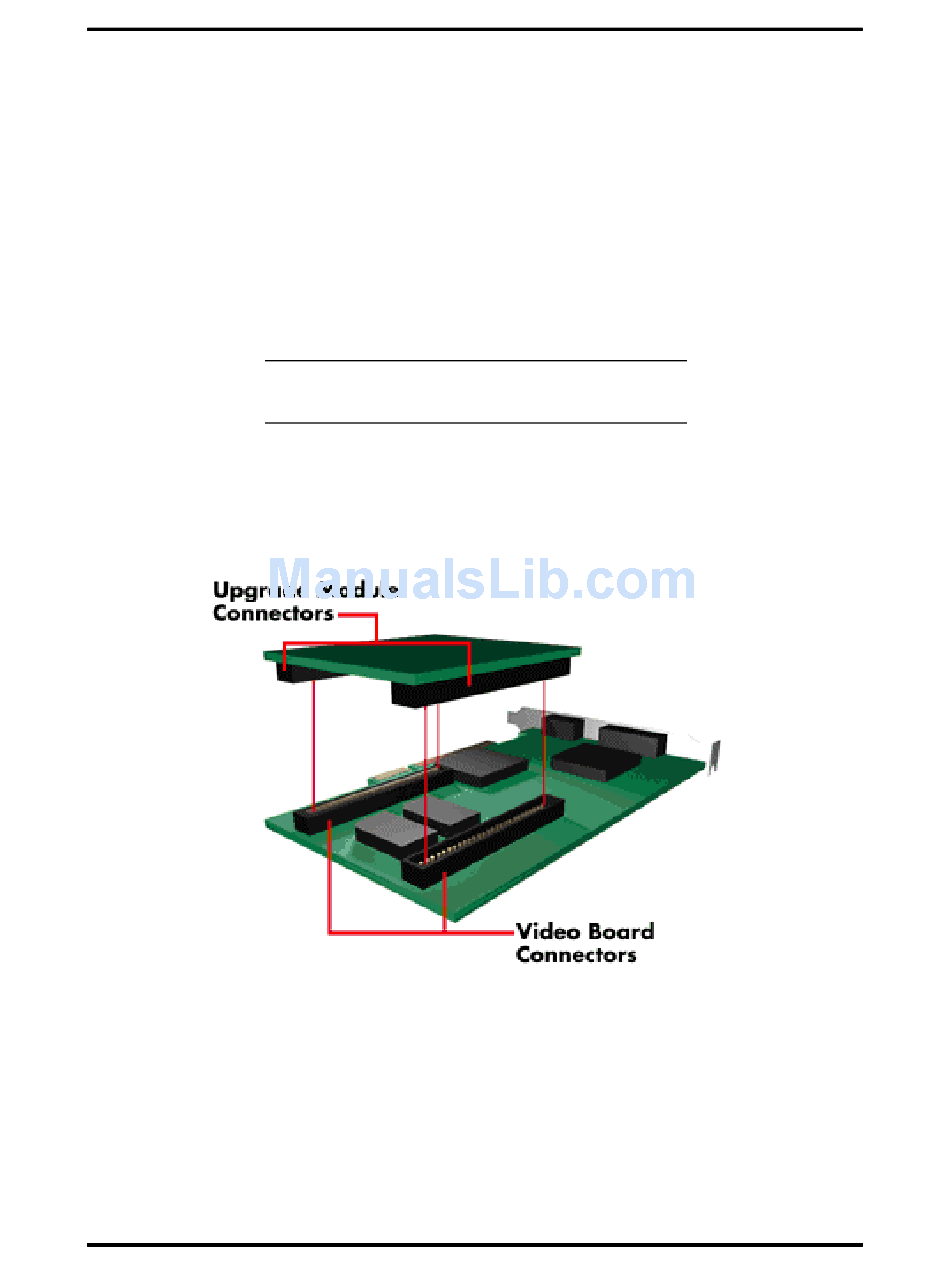

Figure Section 3-10 Aligning the Video WRAM Module with the Video Board
Replace any boards that were removed.
4.
5. Replace the system unit cover.
CAUTION: Reduce static discharge by
touching the system's metal chassis.
Sockets
