4.3.16 Opening the Cap/Moving the Wiper Unit
0023-3340
a) Opening the Cap/Releasing the Carriage Lock Pin by service mode
After entering the service mode, execute the following mode.
Service mode: SERVICE MODE > FUNCTION > CR UNLOCK
b) Opening the Cap/Releasing the Carriage Lock Pin/Moving the Wiper Unit manually

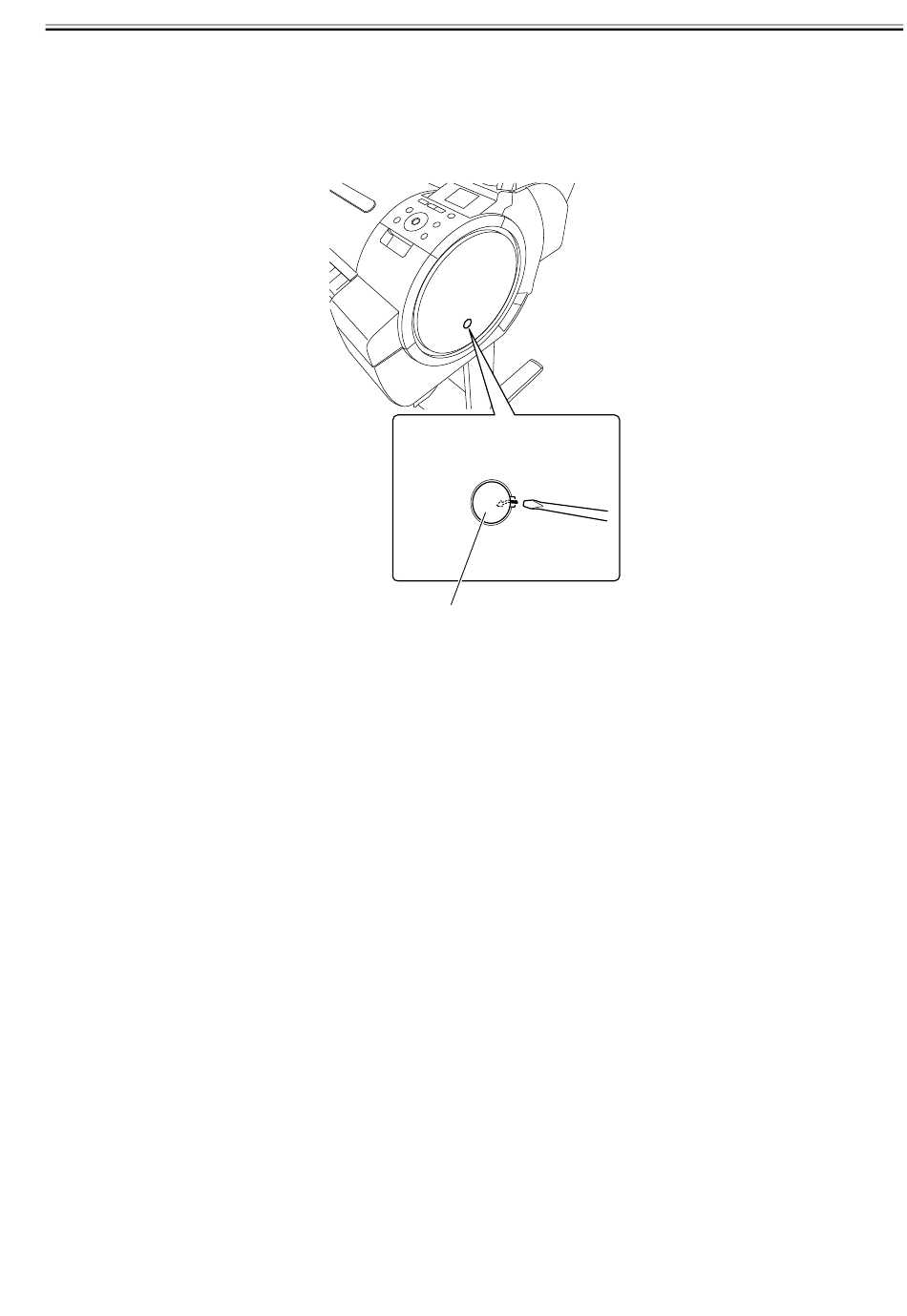

1) Insert a flat head screwdriver in the slit on the left cover to remove the face cover [1].
[1]
F-4-112
4-51
