Chapter 2

2.5 Detection Functions with Sensors

2.5.1 Covers

0023-2554

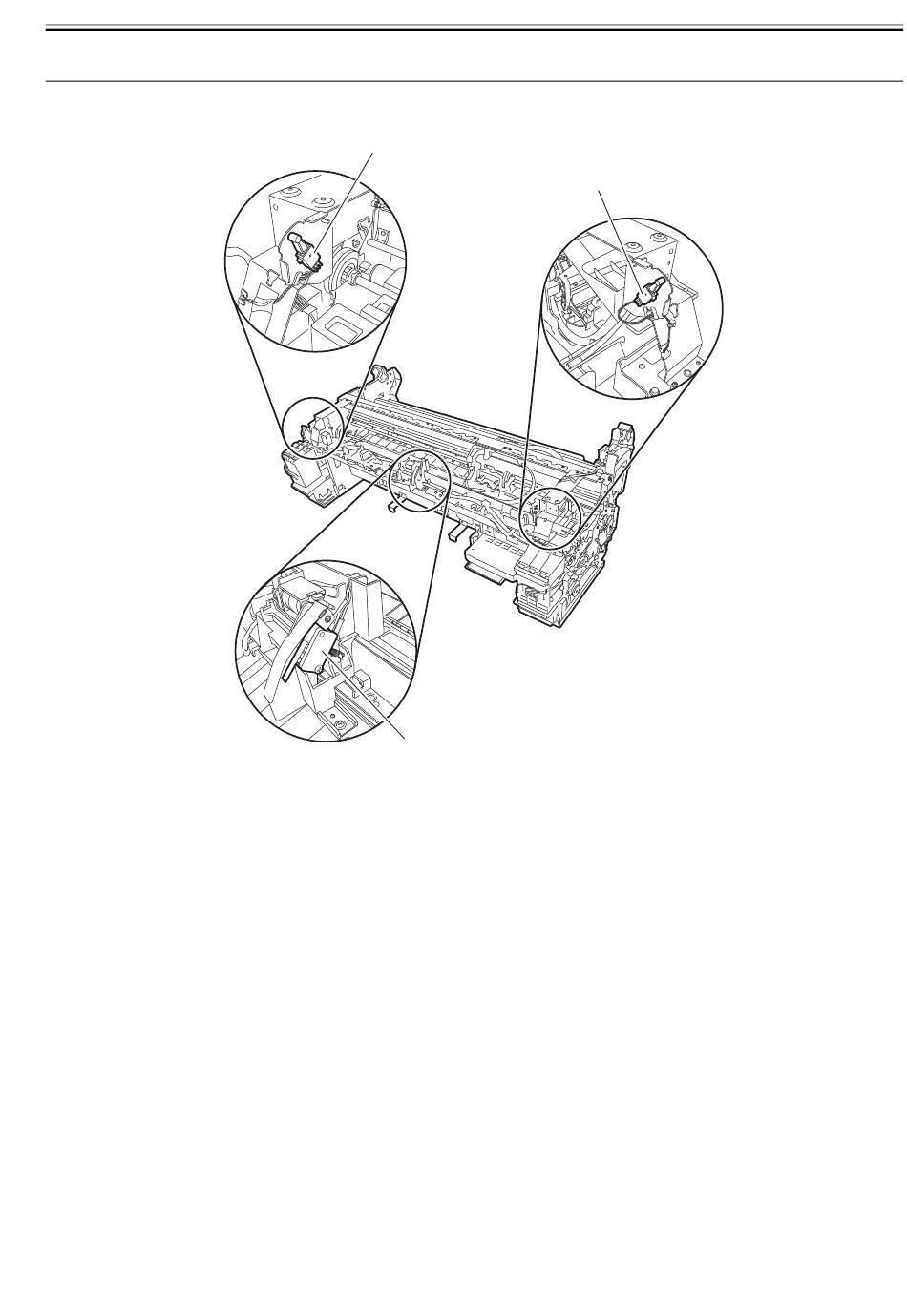

Ink Tank Cover Switch (L)
Ink Tank Cover Switch (R)
Upper Cover Lock Switch
F-2-36
Upper cover lock switch
The microswitch-based upper cover lock switch detects the open/closed states of the upper cover.
When the upper cover close, the switch is pressed to detect the closed state of the upper cover.
Ink tank cover switch (L)/(R)
The microswitch-based ink tank cover switches detect the open/closed states of left and right ink tank cover.
When an ink tank cover closes, the switch is pressed to detect the closed state of the ink tank cover.
2-47
