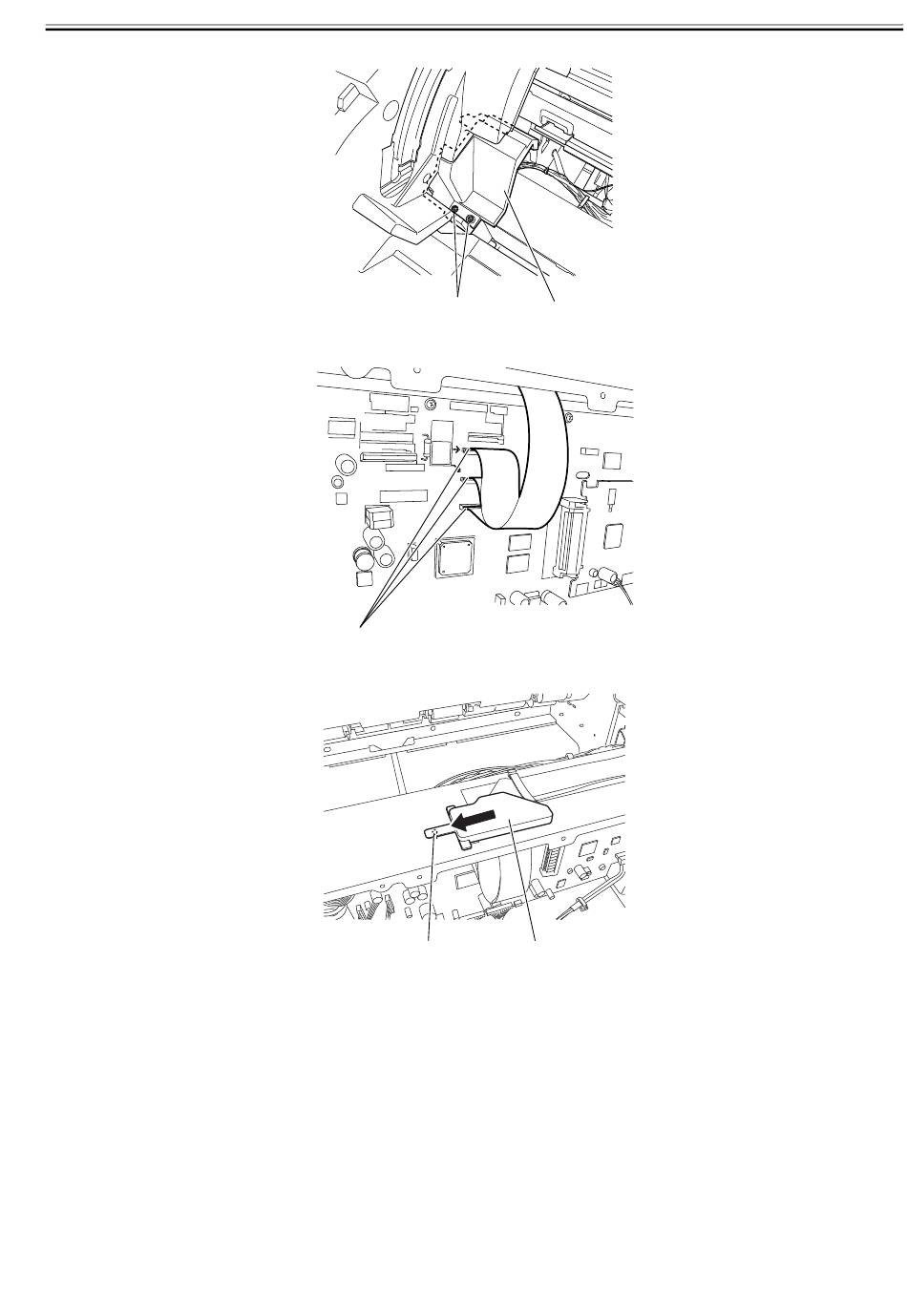

10) Remove two screws [1], and then remove the left roll lower inner cover [2].
11) Disconnect three flexible cable connectors [1] from the main controller PCB.
12) Release the hook [1], and then remove the flexible cable guide [2].
[1]
F-4-42
[1]
F-4-43
[1]
F-4-44
[2]
[2]
Chapter 4
4-21
