1.7.1.2 Adhesion of Ink
(1) Ink passages
Be careful not to touch the ink passages of the printer to prevent the printer, workbench, ands, and clothes from being stained with ink.
The ink flows through the ink tank unit, carriage unit, purge unit, maintenance cartridge, and the ink tubes that relay ink to individual units.
- Although the ink is not harmful to the human body, it contains organic solvents.
Ink may contaminate the surrounding parts. Carry out the work with due caution. If your hands are stained with ink, wash them with a plenty of water.
Be careful not to allow the ink to get into your mouth or eyes.
If the ink gets into your eyes, flush them with water well and see a doctor.
In case of accidental ingestion of a large quantity of ink, see a doctor immediately.
- It is also effective to use gloves to prevent ink from adhering when working.
- Since this ink contains pigment, stains will not come out of clothing.
(2) Ink Mist
Since the printhead prints by squirting ink onto the media, a minute amount of ink mist is generated in the printing unit during printing. The generated ink mist is
collected in the printer by the airflow. However, uncollected ink mist may stain the platen, carriage unit, exterior, and purge unit.
These stains may soil the print media or hands and clothes when servicing the printer. Wipe them off carefully with a soft, well-wrung cloth.

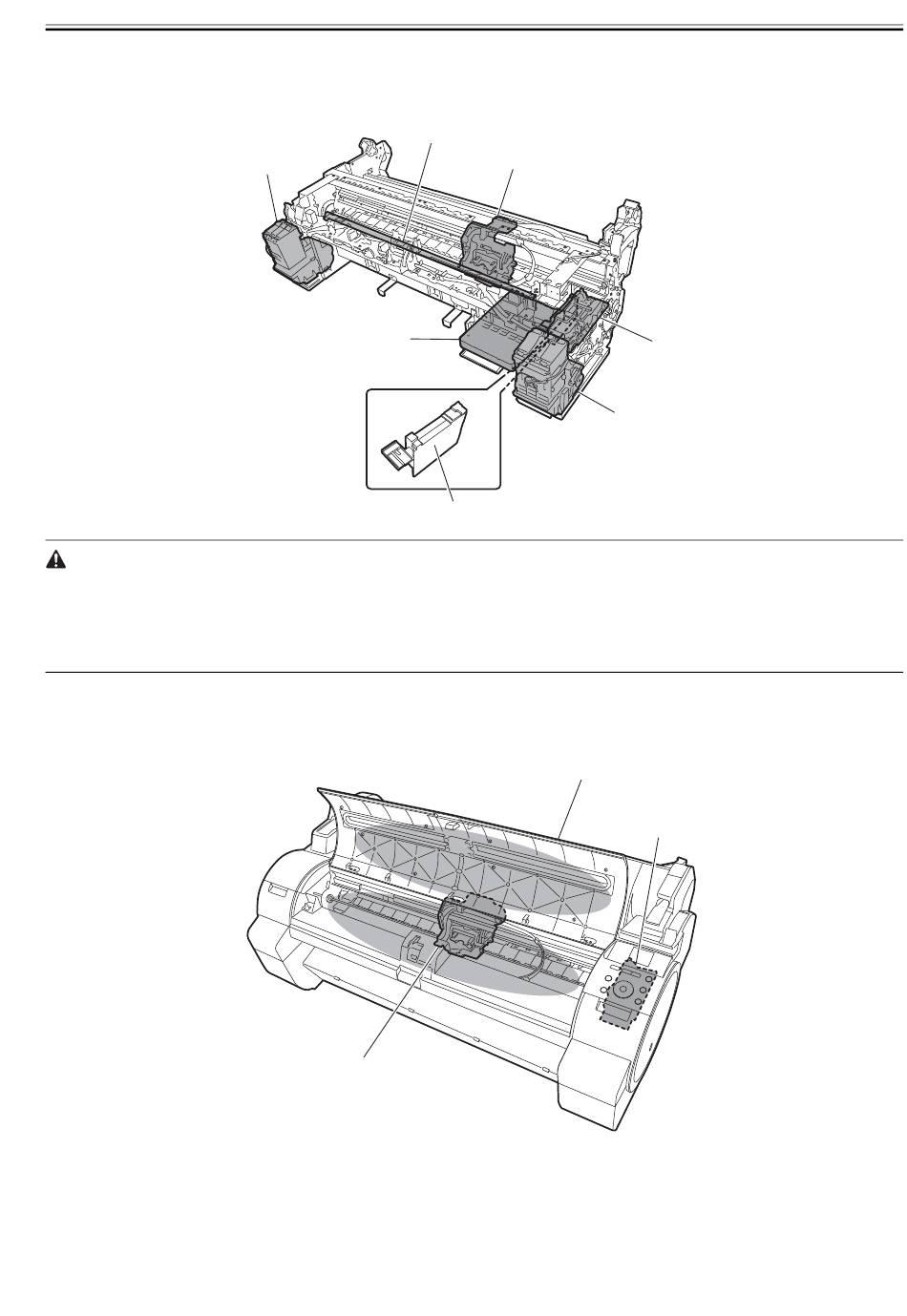

Ink Tank Unit
Maintenance Cartridge
Head Management Sensor
Platen/Carriage/Main Rail
Platen
Carriage
F-1-40
Upper Cover
F-1-41
Purge Unit
Ink Tank Unit
Purge Unit
