Head Management Sensor - Canon imagePROGRAF iPF670 Service Manual

Chapter 4

4.3.14 Head Management Sensor

0023-3339
a) Head Management Sensor
Removing the Head Management Sensor
1) Remove the purge unit.
2) Remove one screw [1] and one disconnect connector [2], release one protrusion [3], and then remove the head management sensor [4].

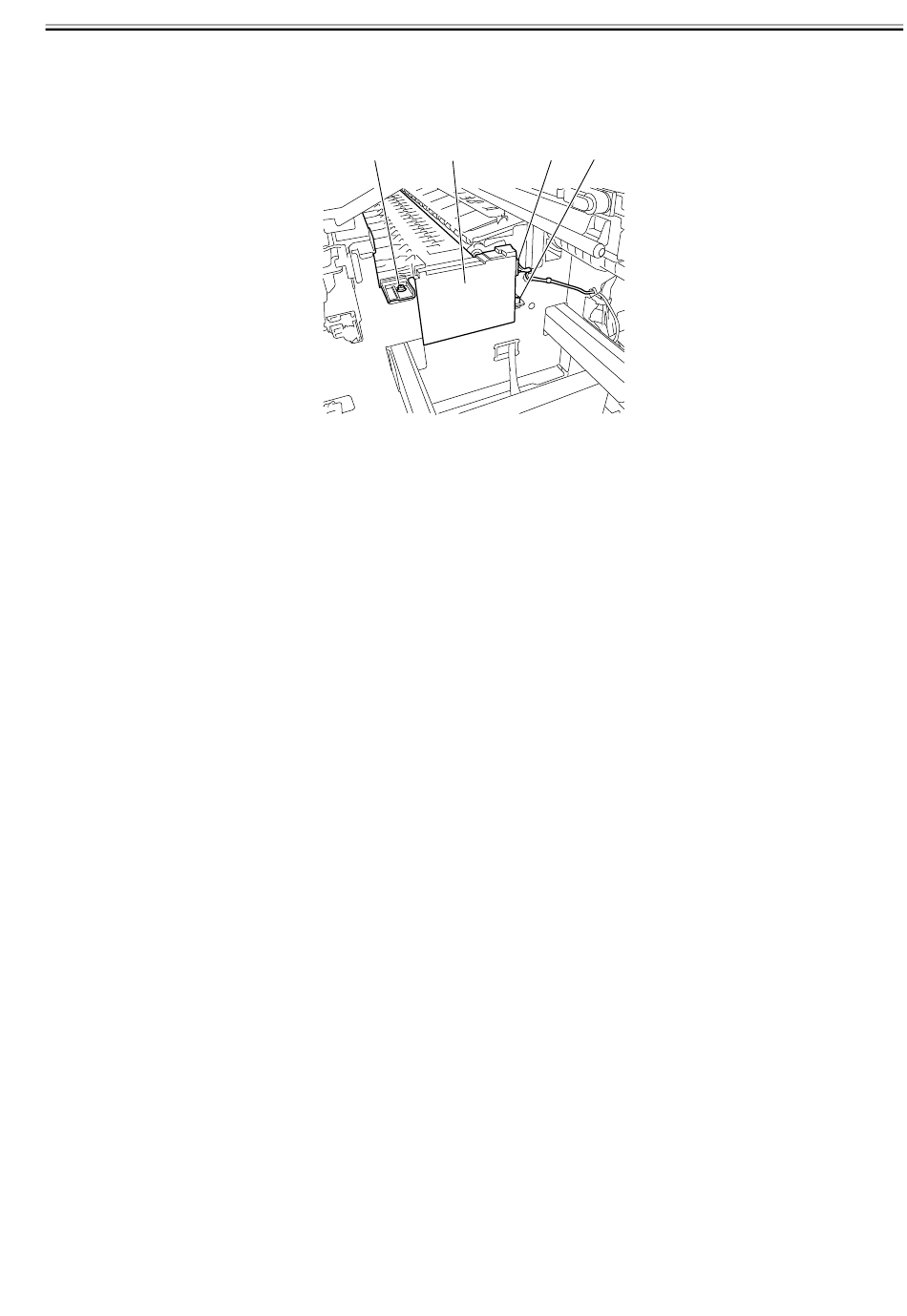

[1] [4] [2] [3]
F-4-111
b) Procedure after replacing the head management sensor
Since the distance between the head management sensor and the carriage unit varies among printers, the optical axis is factory-adjusted to adjust the non-discharging
detection position. When you have replaced the head management sensor or performed assembly/reassembly of surrounding parts that can change the distance be-
tween the head management sensor and the carriage unit, readjustment is required.
Perform the readjustment in the service mode.
Service mode : SERVICE MODE > ADJUST > NOZZLE CHK POS.
4-49
