[Extended position]
- Changing from the regular position to extended position.

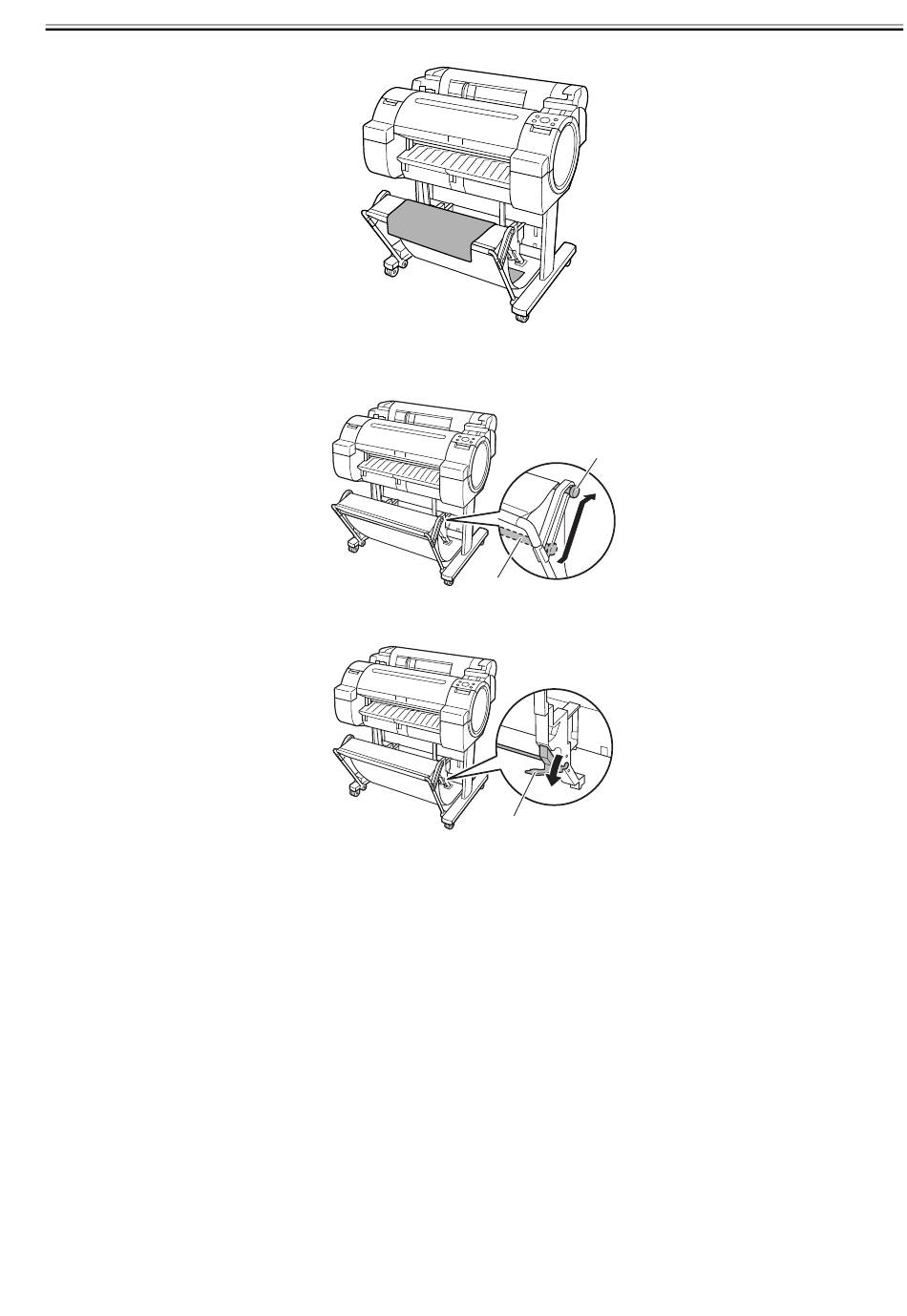

1) Raise the auxiliary rod [1] to the position [A] of the illustration to change to the extended position.
2) Pull out the switching stopper [1] when using roll paper that is A1 size or has a width of 24 inches.
F-1-12
[A]
[1]
F-1-13
[1]
F-1-14
