MEMO:

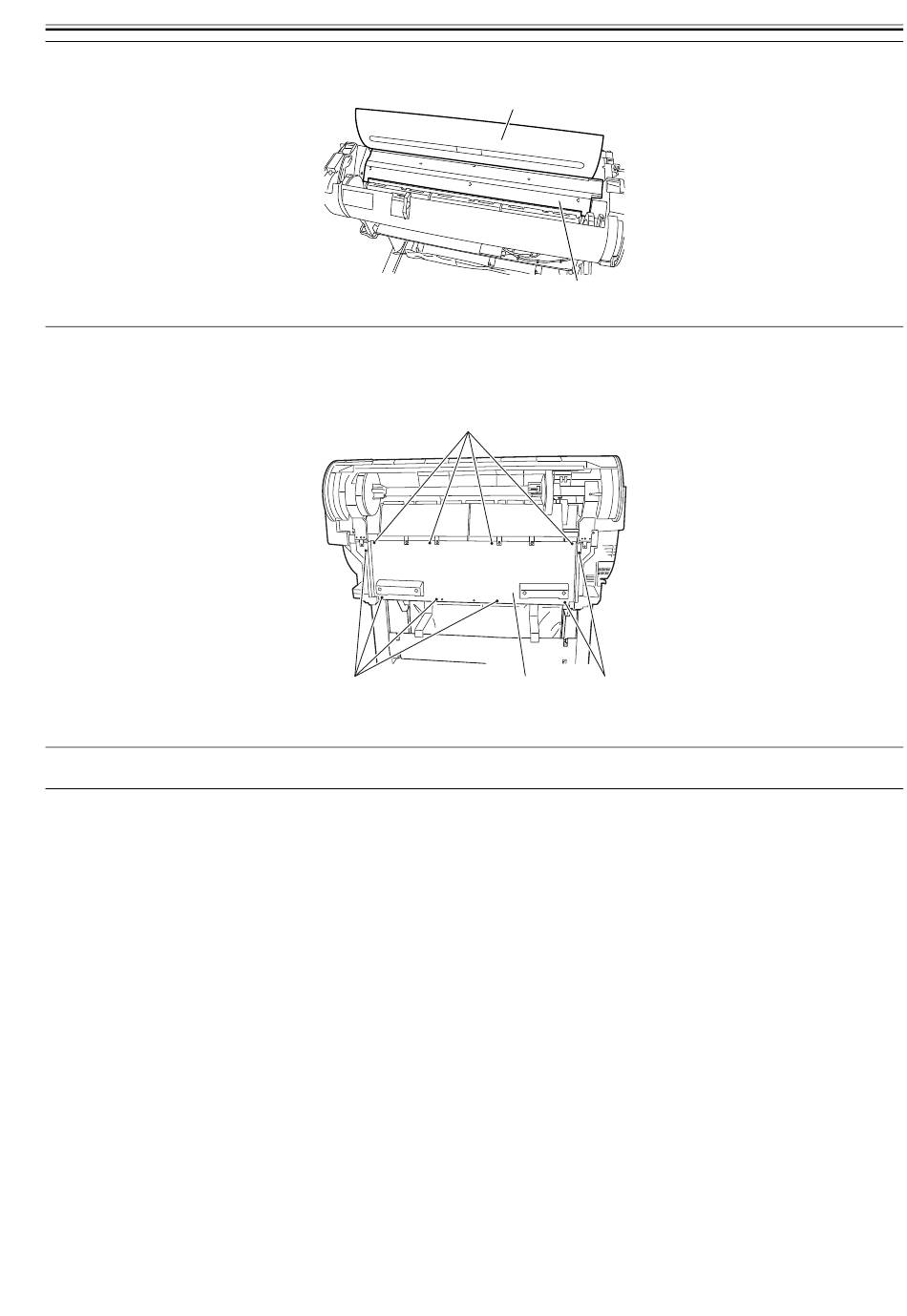

The rear upper cover [1] and upper cover [2] can be removed together.
j) Rear Cover
Removing the Rear Cover
1) To remove the rear cover [2], remove ten screws [1].
k) Roll Feed Unit
Removing the Roll Feed Unit
MEMO:
Open/close the roll cover as needed.
[2]
F-4-16
[1]
[1]
F-4-17
[1]
[2] [1]
Chapter 4
4-9
