Chapter 4
4.3.17 Opening/Closing the Ink Supply Valve/Subtank Air Passage Valve
0023-3341
a) Opening/Closing the Ink Supply Valve/Subtank Air Passage Valve
1) Remove the ink tank cover.

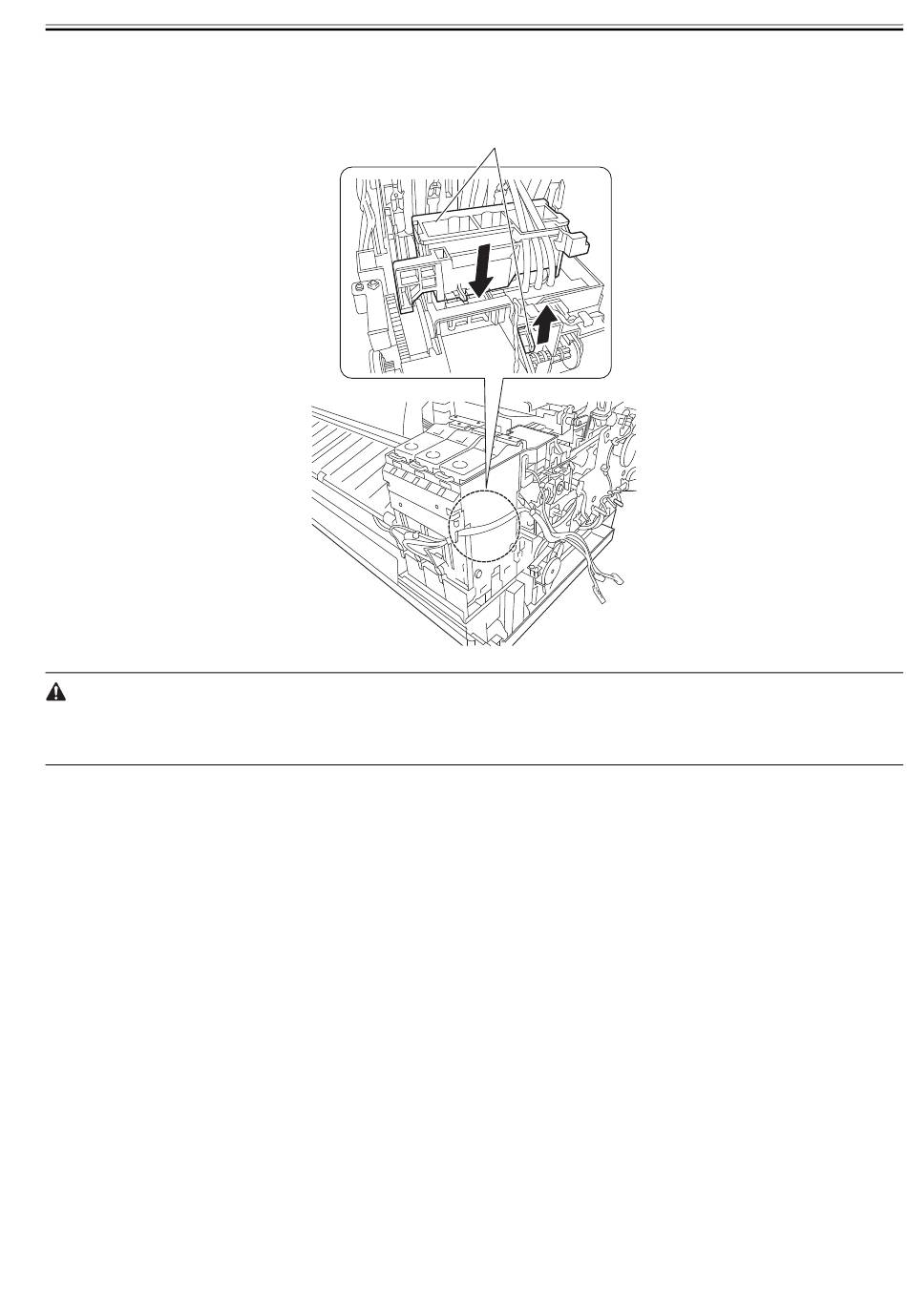

2) Open the ink supply valve and the subtank air passage valve with moving the lever [1] in the arrow direction.
[1]
F-4-116
- If the printhead fixer lever is released with the ink supply valve and subtank air passage valve to an ink tube open while the tube is filled with an ink, the ink in
the tube could flow backward to the ink tank unit, leaking through the hollow needle in the ink tank.
- If the valve remains open, as on occurrence of the valve open/close error, remove the valve motor unit and (see Disassembly/Reassembly > Points to Note on
Disassembly/Reassembly > Ink Tank Unit) and close the ink supply valve.
