Stand (St-26) - Canon imagePROGRAF iPF670 Service Manual

Chapter 1

1.5.7 Stand (ST-26)

[1] Accessory pocket
Store the printer accessories.
[2] Output stacker
Ejected printouts are collected in this output stacker.
[3] Lockable caster
This caster can be locked.
When relocating the printer, be sure to unlock all four casters. Moving the printer with the casters locked can damage the floor.
[4] Switching stopper
Pull out this stopper when using the output stacker at the extended position.
[5] Paper guide
This guide is used to lead the ejected printout to the output stacker.
1-18

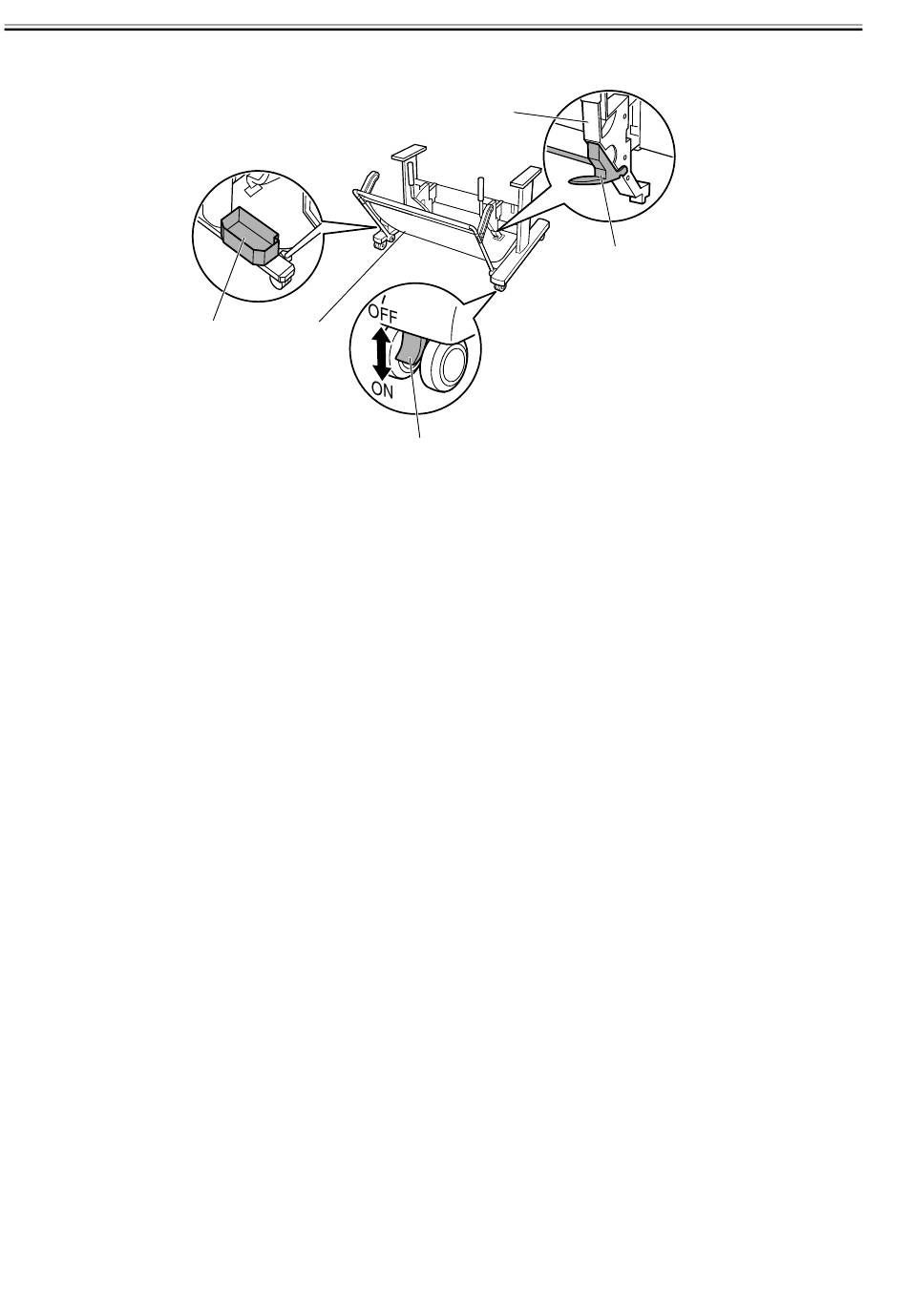

[1] [2]
[5]
[3]
F-1-35
[4]
0023-5234
